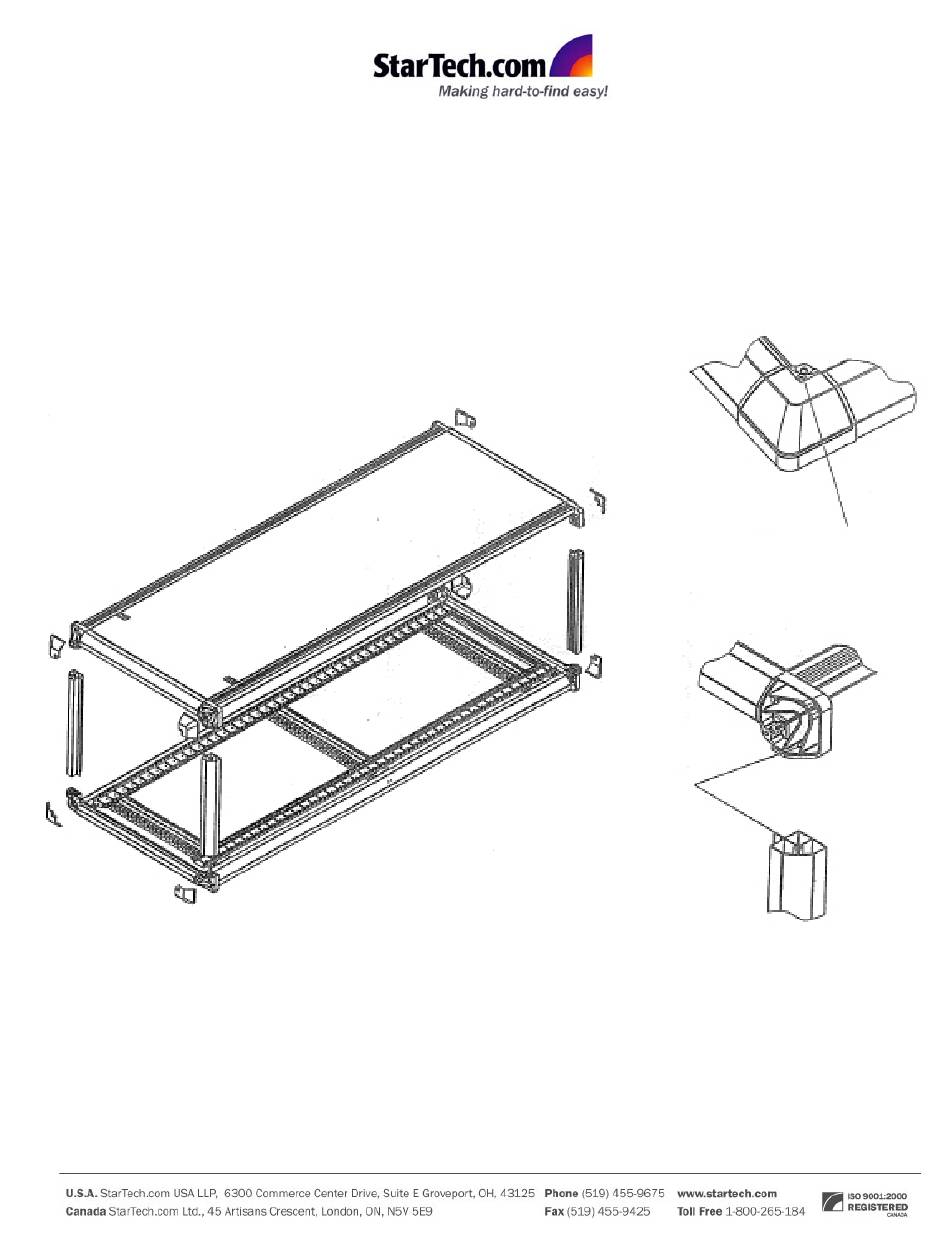

Frame Installation Steps:
1. Connect the front and rear frame with the 4 angled braces
as described below and fasten them together with the
M8*25 screws.
2. Place the covers over the joints and secure them with M4
screws
RK2236BKF
Assembly Instructions
Fasten the braces with M8 screws
Secure the M4 screws into this hole
