StarTech.com WALLSTS2 Manual

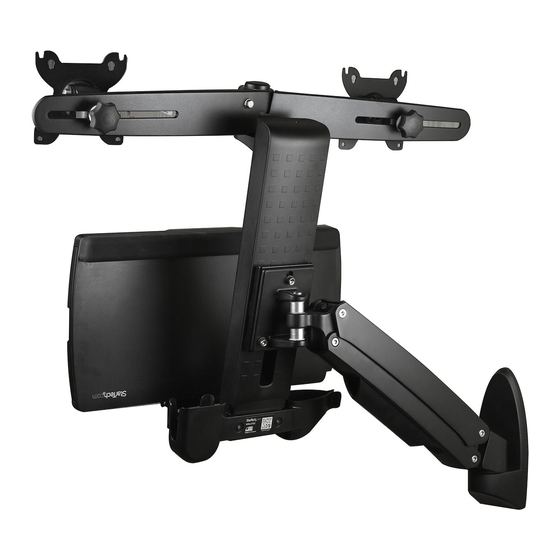

Sit-stand workstation wall mount - dual monitor
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

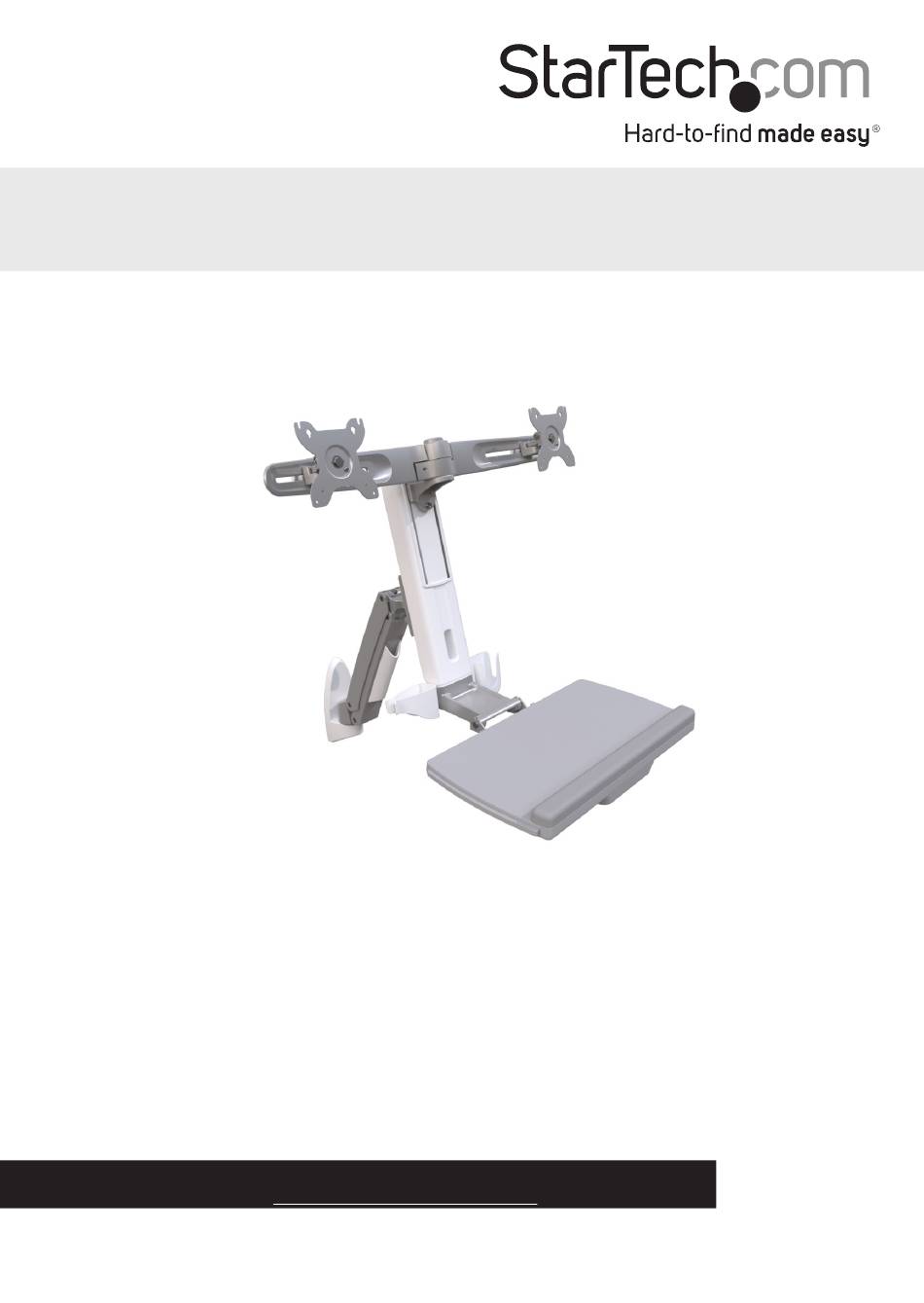

Sit-Stand Workstation Wall Mount -
Dual Monitor
WALLSTS2
FR: Guide de l'utilisateur - fr.startech.com
DE: Bedienungsanleitung - de.startech.com
ES: Guía del usuario - es.startech.com
NL: Gebruiksaanwijzing - nl.startech.com
PT: Guia do usuário - pt.startech.com
IT: Guida per l'uso - it.startech.com
For the latest information, technical specifications, and support for
this product, please visit www.StarTech.com/WALLSTS2.
Manual Revision: 10/17/2017
*actual product may vary from photos

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the WALLSTS2 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for StarTech.com WALLSTS2

Summary of Contents for StarTech.com WALLSTS2

  • Page 1 Sit-Stand Workstation Wall Mount - Dual Monitor WALLSTS2 *actual product may vary from photos FR: Guide de l’utilisateur - fr.startech.com DE: Bedienungsanleitung - de.startech.com ES: Guía del usuario - es.startech.com NL: Gebruiksaanwijzing - nl.startech.com PT: Guia do usuário - pt.startech.com IT: Guida per l’uso - it.startech.com...
  • Page 2 Warning statements Dichiarazioni di avvertenza Make sure that you assemble this product according to the instructions. Assicurarsi di Assemblare il prodotto secondo le istruzioni. Read the entire manual and make sure that you understand the instructions before you start to assemble Leggere l’intero manuale e assicurarsi di aver compreso tutte le istruzioni prima di iniziare ad assemblare and use this product.
  • Page 3 Advertencias de uso Asegúrese de ensamblar este producto según las instrucciones. Lea todo el manual y asegúrese de haber comprendido bien las instrucciones antes de proceder con el ensamblaje y el uso de este producto. Nunca opere o ponga en funcionamiento este producto si faltan piezas o hay daños en las mismas. El uso de este producto es solo para interiores y no debe utilizarse en exteriores.

  • Page 4: Table Of Contents

    Attach the monitors to the crossbars ....................25 Attach the adhesive strip ........................31 Route cables ..............................32 Remove monitors from the WALLSTS2 ..........33 Adjusting the WALLSTS2 ...............34 Adjust the height of the monitors ...................... 34 Adjust the tilt angle of the monitor ....................35 Adjust the tilt angle of the keyboard tray ..................
  • Page 5 Counterbalance the weight of the workstation ................38 Adjust the swivel effort of the monitor arm ..................39 Extend the keyboard tray ........................40 Clean the keyboard tray ................41 Technical support ...................42 Warranty information ................42 Instruction manual...

  • Page 6: Product Dimensions

    Product dimensions 794 mm (31.2 in.) 395 mm (15.5 in.) 1194 mm ( 47 in.) 79 mm (3.1 in.) 16 mm (0.6 in.) 50 mm (2 in.) 13 mm (0.5 in.) 7 mm (0.3 in.) 100 mm (3.9 in.) 75 mm (2.9 in.) 4.5 mm (0.2 in.) Instruction manual...
  • Page 7 672 mm (26.4 in.) Max 715 mm (28.1 in.) Max 600 mm (23.6 in.) 956 mm (37.6 in.) 410 to 589 mm (16 to 23.2 in.) 50.5 mm (2 in.) Instruction manual...

  • Page 8: Product Diagram

    8 mm to 217 mm 8 mm to 217 mm 449 mm (17.7 in.) (0.3 in. to 8.5 in.) (0.3 in. to 8.5 in.) 668 mm (26.3 in.) 64 mm (2.5 in.) 44 mm (1.7 in.) Product diagram Crossbar Crossbar VESA monitor mount VESA monitor mount Column...

  • Page 9: Technical Specifications

    Technical specifications Type of measurement Measurement 75 x 75 mm 100 x 100 mm VESA 0° to 30° Tilt (monitor) 0° to +90° Tilt (keyboard) 360° Pivot (monitor) +/-90° Swivel (monitor arm) Instruction manual...
  • Page 10 Type of measurement Measurement +/-15° Swivel (monitor) 24 in. or less Supported monitor size 4.4 to 17.6 lb. (2 to 8 kg) Supported weight (monitors) 5.5 lb. (2.5 kg) Supported weight (keyboard tray) Instruction manual...

  • Page 11: Package Contents

    Package contents Monitor arm VESA monitor mounts Qty: One Qty: Two Keyboard tray Adhesive strip Qty: One Qty: One Column Wall plate Qty: One Qty: One Instruction manual...
  • Page 12 Concrete anchors Mounting screws Qty: Four Qty: Four M4x10 mm screws M6x10 mm screws Qty: Eight Qty: Five M6x12 mm screws M8x20 mm screw Qty: Four Qty: One Instruction manual...
  • Page 13 2.5 mm hex key 5 mm hex key Qty: One Qty: One 6 mm hex key Plastic washer Qty: One Qty: One Metal washer Socket driver Qty: One Qty: One Instruction manual...
  • Page 14 Crossbar washers Knobs Qty: Two Qty: Two Crossbars Crossbar mount Qty: Two Qty: One Wrench Instruction manual Qty: One Qty: One Instruction manual...

  • Page 15: Requirements

    Requirements • Monitors that are compatible with one of the VESA mounting hole patterns that WALLSTS2 supports • Pencil or pen to mark the wall • Phillips type screwdriver • ¹/₄ inch drive ratchet Requirements are subject to change. For the latest requirements, please visit www.StarTech.com/WALLSTS2.

  • Page 16: Assembly

    Assembly Attach the wall plate to the wall Warning! Wall structures vary, and it is important to make sure that the type of structure and mounting hardware that you are using will properly support the mounted equipment. Failure to do so may result in personal injury and/or equipment damage.
  • Page 17 3. Position the wall plate where you want to hang the WALLSTS2 and make sure that the plate is vertical. 4. Use the four mounting holes in the wall plate as a template and mark the wall. 5. Follow the appropriate steps for the type of wall that you’re attaching the WALLSTS2 to and attach the wall plate to the wall.

  • Page 18: Attach The Monitor Arm To The Wall Plate

    Attach the monitor arm to the wall plate 1. Place the monitor arm onto the projection on the wall plate. (figure 3) figure 3 Monitor arm Wall plate Projection Instruction manual...
  • Page 19 2. Place the plastic washer into the joint in the monitor arm. 3. Place the metal washer onto the plastic washer. 4. Insert the M8x20 mm screw through the washers and into the joint in the monitor arm. 5. Use the 6 mm hex key to tighten the screw. (figure 4) figure 4 6 mm hex key Monitor arm...

  • Page 20: Attach The Column To The Keyboard Tray

    Attach the column to the keyboard tray 1. Position the column with the cutout at the bottom half of the column. 2. Line up the assembly holes on the bottom of the column with the assembly holes between the holders on the keyboard tray. (figure 5) figure 5 Column Holder...
  • Page 21 3. On the underside of the keyboard tray, insert the four M6x12 mm screws through the keyboard tray and into the column. (figure 6) 4. Use the 5 mm hex key to tighten the screws in place. figure 6 5 mm hex key M6x12 mm screw Keyboard tray Instruction manual...

  • Page 22: Attach The Column To The Monitor Arm

    Attach the column to the monitor arm 1. Insert one of the M6x10 mm screws into the top hole in the plate on the back of the column. (figure 7) Note: Do not tighten the M6x10 mm screw and make sure that you leave between 4 and 5 mm of space between the plate and the screw.
  • Page 23 2. Hook the M6x10 mm screw attached to the column into the key-shaped hole at the top of the plate on the monitor arm. (figure 8) figure 8 M6x10 mm screw Key-shaped hole Monitor arm Instruction manual...
  • Page 24 3. Insert the M6x10 mm screws into the lower two holes on the plate on the monitor arm. (figure 9) 4. Use the 5 mm hex key to tighten all three of the screws. figure 9 Monitor arm M6x10 mm screw 5 mm hex key Instruction manual...

  • Page 25: Attach The Crossbars To The Column

    Attach the crossbars to the column 1. Hook the crossbar mount onto the plate on the column. (figure 10) figure 10 Crossbar mount Column Instruction manual...
  • Page 26 2. Insert two M6x10 mm screws through the holes under the crossbar mount and into the plate on the column. 3. Use the 5 mm hex key to tighten the screws in place. (figure 11) figure 11 Crossbar mount M6x10 mm screw Column 5 mm hex key Instruction manual...
  • Page 27 4. Slide the crossbars onto the crossbar mount so that the flat sides of the crossbars are against the column. (figure 12) figure 12 Crossbar Crossbar Crossbar mount Column Instruction manual...
  • Page 28 5. If the crossbars are loose, use the wrench to tighten the bolts in each of the crossbars. (figure 13) figure 13 Wrench Crossbar Crossbar Bolt Column Instruction manual...

  • Page 29: Attach The Vesa Monitor Mounts To The Crossbars

    Attach the VESA monitor mounts to the crossbars 1. Insert the rectangular projection on the back of one of the VESA monitor mounts into the slot at the front of one of the crossbars. 2. At the back of the crossbars, insert one of the knobs through one of the crossbar washers and into the back of the VESA monitor mount.

  • Page 30: Attach The Monitors To The Crossbars

    Warning! Attaching a monitor is a two-person job. Do not attempt to complete this task by yourself. WALLSTS2 is a designed to be used with two monitors that weigh the same. If you attach monitors that are different weights to the WALLSTS2, you do so at your own risk.
  • Page 31 2. Carefully slide the M4x10 mm screws into the top slots of one of the VESA monitor mounts attached to one of the crossbars. (figure 16) figure 16 M4x10 mm screw Slot Instruction manual...
  • Page 32 3. Insert two of the M4x10 mm screws into the mounting holes in the bottom two holes in the VESA monitor mount and into the monitor. 4. Use a Phillips type screwdriver to tighten all four of the screws. 5. Repeat steps 1 to 4 to attach the second monitor to the other VESA monitor mount. (figure 17) figure 17 M4x10 mm screw...
  • Page 33 Use the 75x75 VESA mounting hole pattern to attach the monitors 1. Insert two of the M4x10 mm screws into the mounting holes that are located closest to the top of one of the monitors. (figure 18) Note: Do not tighten the M4x10 mm screws, and make sure that you leave between 3 and 4 mm of space between the screws and the monitor.
  • Page 34 2. Carefully hang the M4x10 mm screws onto the keyhole-shaped holes in one of the VESA monitor mounts attached to one of the crossbars. 3. Insert two of the M4x10 mm screws into the mounting holes in the bottom of the VESA monitor mount and into the monitor.
  • Page 35 6. Slide the covers onto the wall plate. (figure 20) figure 20 Cover Wall plate Cover Instruction manual...

  • Page 36: Attach The Adhesive Strip

    Attach the adhesive strip 1. If necessary, cut the adhesive strip to fit the length of your keyboard. 2. Separate the two sides of the adhesive strip. 3. Remove the backing from one half of the adhesive strip and stick it to the back of your keyboard.

  • Page 37: Route Cables

    Route cables 1. Run your cable along the column and through the slot at the bottom of the column. 2. At the top of the cable cover, squeeze the tabs and slide the cable cover up to unhook the tabs at the bottom of the cable cover from the slots in the monitor arm, and lift the cable cover off of the monitor arm.

  • Page 38: Remove Monitors From The Wallsts2

    Remove monitors from the WALLSTS2 Warning: Stored energy hazard! The column contains a lift mechanism that could move up quickly when you remove the monitors from the product. Before you remove the monitors, move the monitors to the highest position. Failure to do so could result in injury or property damage.

  • Page 39: Adjusting The Wallsts2

    Adjusting the WALLSTS2 Adjust the height of the monitors Caution! When you adjust the monitors, make sure that you move both monitors at the same time. • To adjust the height of the monitors, grasp the bottoms of both monitors and move them up or down.

  • Page 40: Adjust The Tilt Angle Of The Monitor

    Adjust the tilt angle of the monitor 1. If necessary, swivel the monitors so that you can access the two screws in the sides of each of the VESA monitor mounts. 2. Use the 5 mm hex key to loosen the two screws in the side of the VESA monitor mount that you want to adjust.

  • Page 41: Adjust The Tilt Angle Of The Keyboard Tray

    Adjust the tilt angle of the keyboard tray • Pull up or push down on the keyboard tray to adjust it from 0 to 90°. (figure 26) figure 26 Keyboard tray Instruction manual...

  • Page 42: Counterbalance The Weight Of The Monitor

    Counterbalance the weight of the monitors The WALLSTS2 features a one-touch height adjustment design that enables you to easily raise or lower your monitors. To use the one-touch height adjustment feature, you need to counterbalance the weight of your monitors.

  • Page 43: Counterbalance The Weight Of The Workstation

    Counterbalance the weight of the workstation The WALLSTS2 features a one-touch height adjustment design that enables you to easily raise or lower the entire workstation, including the keyboard tray. To use the one-touch height adjustment feature, you need to counterbalance the weight of the workstation.

  • Page 44: Adjust The Swivel Effort Of The Monitor Arm

    Adjust the swivel effort of the monitor arm • To increase or decrease the swivel effort of the monitor arm, use the 6 mm hex key to turn the screw in the plate on the back of the column to the right or left. (figure 29) Caution! When you loosen the screw, make sure that you don’t remove the screw from the joint.

  • Page 45: Extend The Keyboard Tray

    Extend the keyboard tray You can adjust the keyboard tray so that it extends to the left or right. • Pull the extension to the left or right. (figure 30) figure 30 Keyboard tray Extension Extension Instruction manual...

  • Page 46: Clean The Keyboard Tray

    Clean the keyboard tray You can remove the extension and the plastic cover from the wrist rest to clean them. 1. To remove the plastic cover from the wrist rest, carefully peel it off of the keyboard tray. (figure 31) 2.

  • Page 47: Technical Support

    StarTech.com. Where they occur these references are for illustrative purposes only and do not represent an endorsement of a product or service by StarTech.com, or an endorsement of the product(s) to which this manual applies by the third-party company in question. Regardless of any direct acknowledgement elsewhere in the body of this document, StarTech.com hereby...
  • Page 48 StarTech.com is an ISO 9001 Registered manufacturer of connectivity and technology parts. StarTech.com was founded in 1985 and has operations in the United States, Canada, the United Kingdom and Taiwan servicing a worldwide market.
