12.14 CHAINS

102
STEERING CHAINS

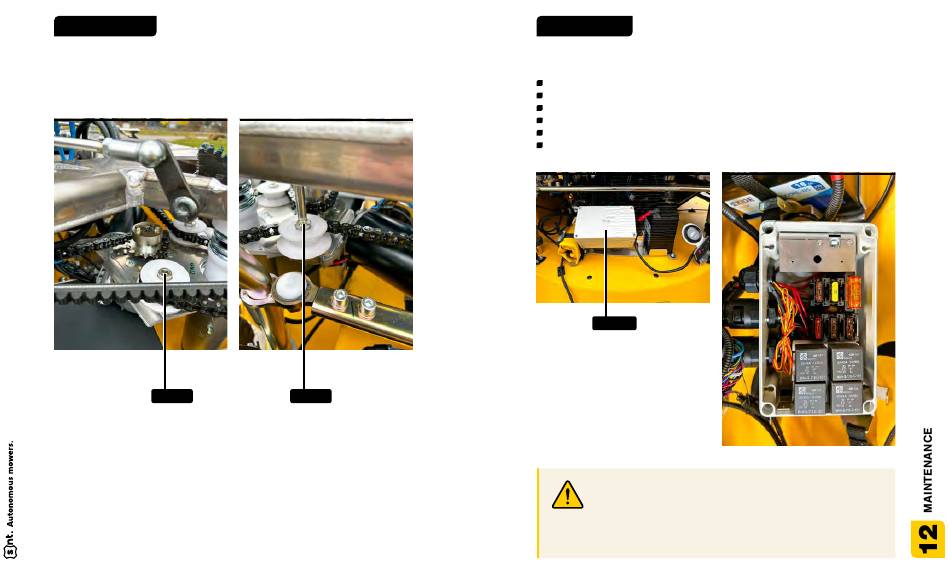

Check the wear and tension of the chain and the tensioning devices. The chain
can by tightened by rotating the steering motor bracket after loosening two
attachments bolts (see the figure).
screw 1 screw 2

12.15 FUSES

The fuse box is located in the space next to the battery. The fuse box houses
the fuses for the individual circuits.
40 A parallel main circuit protection, steering servomotor
20 A starter coil, relay coils R3 and R4 (fault signaling)
10 A not connected (for future use)
7,5 A control unit
5 A indicator panel
5 A LED strip
fuse box
Inside the machine between the
engine and the alternator there is a
40A charging fuse. Next to the engine
there are engine injection fuses, which
consists of a 10A fuel pump fuse and
a 2A fuse of the engine control unit.
When changing fuses follow the electric current value
for which the fuses are designed. Do not replace
damaged fuses with fuses with a higher or lower electric
current value. These could cause damage or even a fire
in the mower!
