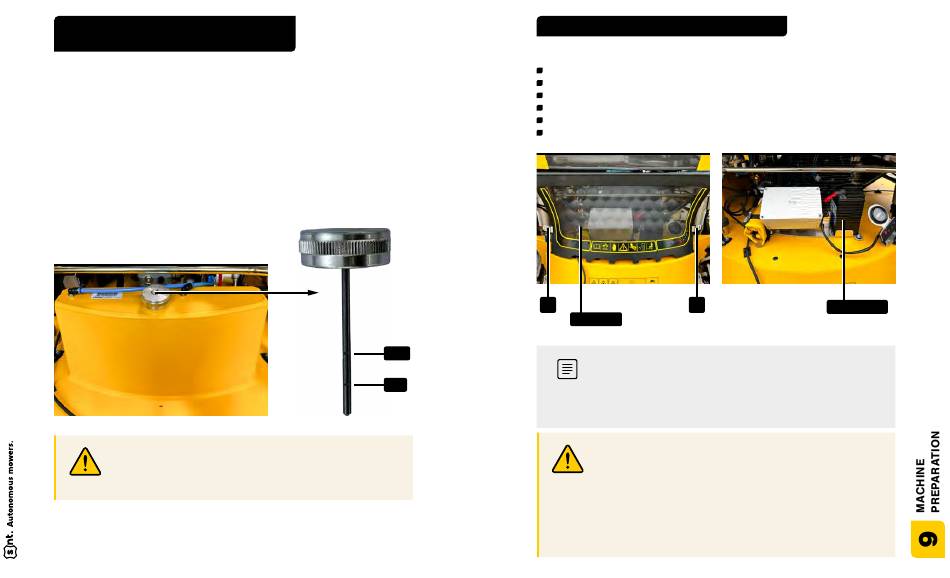

9.4 CHECKING THE FLUID LEVEL
58
IN THE HYDRAULIC SYSTEM
Make sure the fluid is cold before checking the fluid level.
Use a dipstick to check the height of the fluid level, which must be between
the lines of the dipstick.
If the level extends above the defined area, there is a risk that the fluid may
overflow when heated. from the tank. If the level is below the defined area, then
there is a risk of damage to the of the hydraulic drive or uncontrolled behavior
when working on a slope.
Add the fluid if necessary (HM 68 to ISO 6743 or HLP 68, CLP 68 according
to DIN 51502).
After checking, screw in the oil reservoir plug properly.
Remove dirt from around the stopper, unscrew
the stopper of the hydraulic fluid reservoir on the
side of the mower.
9.5
The SPIDER mower uses a gel accumulator type 6E12, 12 V, 18 Ah.
Loosen the locking clips [ A ] and remove the side cover (see Figure).
Insert the accumulator
Attach the clamps according to the marked polarity. First [ + ] and then [ − ] .
Secure the accumulator against movement with a tightening strap.
Reattach the side cover.
When disconnecting and removing the battery, do the opposite.
A
max
min

ACCUMULATOR PREPARATION

A
side cover
Do not fill the battery with electrolyte!
Dry design is used in the construction of the machine
accumulator. In case of recharging, use the maximum
charging current of 1.4 A.
Never start the mower when the battery charger
is connected to the battery.
A SPECIAL CHARGER WITH OVER-GAS PROTECTION
MUST BE USED FOR CHARGING.
WHEN CHARGING THE BATTERY, THE CONNECTING
CABLES MUST BE DISCONNECTED FROM
THE MACHINE.
