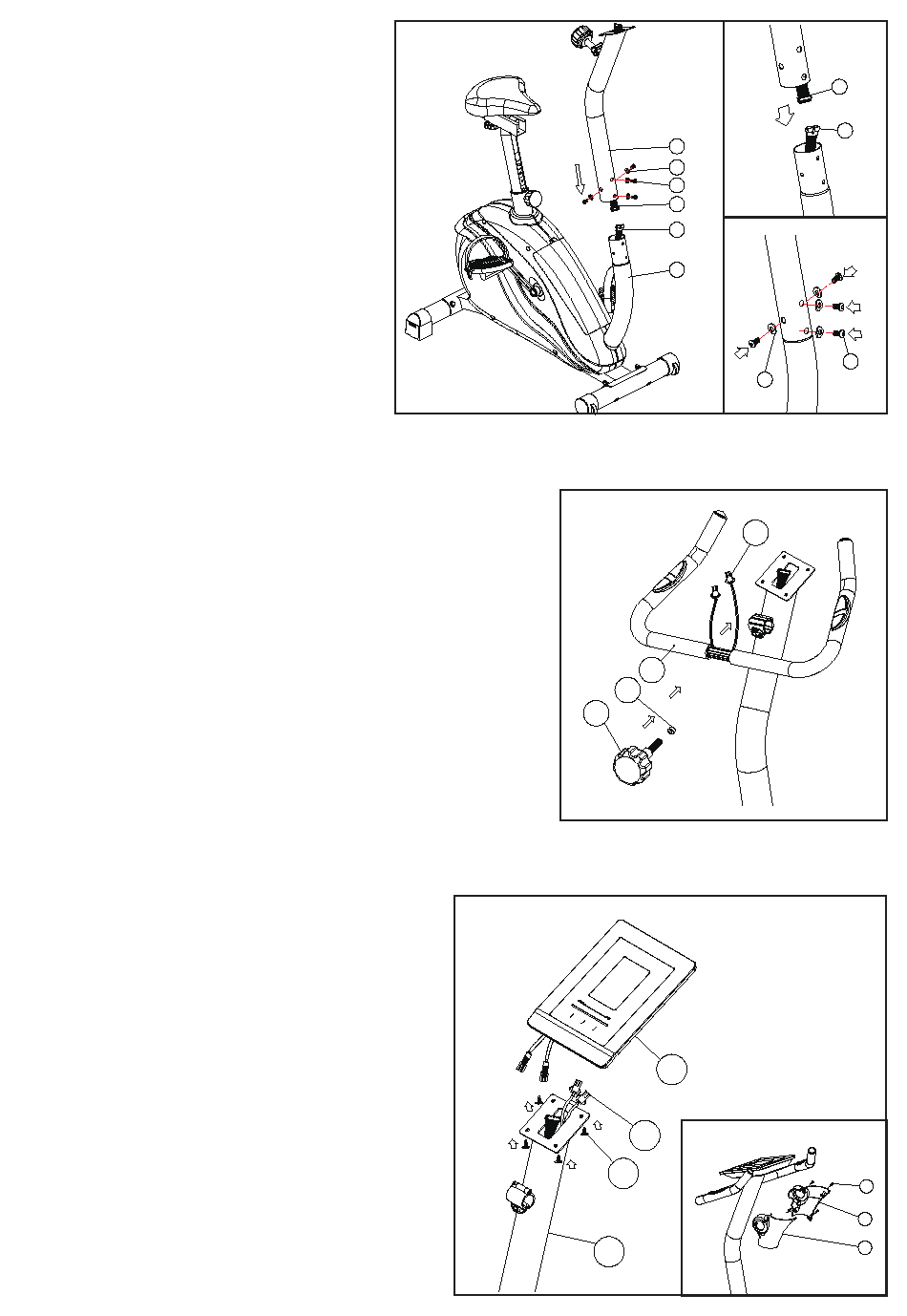

STEP 4
1. Hold the Handlebar Post with the Upper
Computer Cable (65) and connect the Upper
Computer Cable coming out of the bottom
the Handlebar Post with the Lower Comput-
er Cable (28) coming out of the Main Frame.
(NOTE: The Upper Computer Cable (65)
projecting from the top of the Handlebar
Post must not slide into the tube, as it is re-
quired for later steps of installation)
2. Attach the Handlebar Post onto the Main
Frame and fasten it using 4×M8 Allen Bolt
(66), and 4×M8 Curved Washer (25).
STEP 5
Attach the Handlebar (5) onto Handlebar Post (67) with
Tube Spacer (8) and Knob (9). Tighten fully.
(NOTE: Please Keep the Hand Pulse Cable outside.)
STEP 6
1. Push the plug of the Upper Computer Cable pro-
jecting from the Handlebar Post (67) into the associ-
ated socket of the computer (1).
2. Attach the Computer (1) into the computer brack-
et with the 4 screws (70).
Attach the chain cover (14L&14R) onto the handle-
bar with 4 ×screws (31).
Now, your machine is ready for use.
