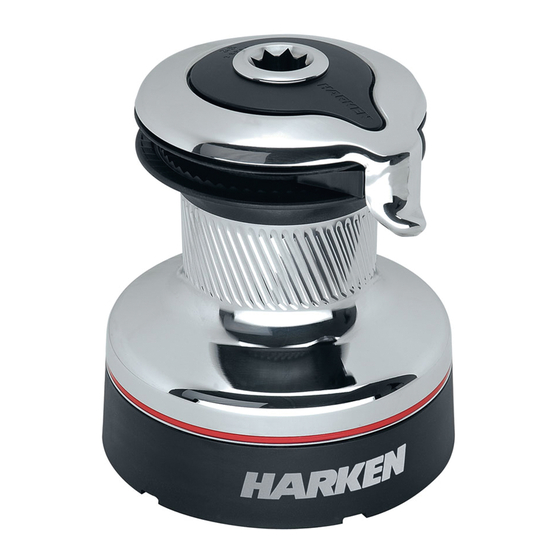

Harken Performa 20 STP Installation And Maintenance Manual

Harken Performa 20 STP Installation And Maintenance Manual

Advertisement

Quick Links

Installation and Maintenance Manual
MRPW-03
Performa
Winch 20 STP

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Performa 20 STP and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Harken Performa 20 STP

  • Page 1 Installation and Maintenance Manual MRPW-03 Performa Winch 20 STP ™...
  • Page 2 Outline Installation Installation procedure Positioning the self-tailing arm Maintenance Washing Maintenance table Disassembly procedure Exploded view with maintenance products Assembly Harken limited worldwide warranty ® Ordering spare parts Exploded view Parts list 20 STP Installation and Maintenance Manual Performa Winch...
  • Page 3: Technical Characteristics

    In case of doubt the Harken ® Tech Service is at your disposal at techservice@harken.it This Manual is available only in English. If you do not fully understand the English language, do not carry out the operations described in this Manual.
  • Page 4: Installation

    It is the installer's responsibility to carry out all structural tests needed to ensure that the deck can bear the load. ® Harken does not supply the screws needed to install the winch since these may vary depending on the deck on which it is to be installed.
  • Page 5 Procedure To install the winch you must remove the drum and use Socket Head (SH) bolts. Tools needed One medium flat-bladed screwdriver To identify the various parts, refer to the exploded view at the end of this Manual. Torque to apply when assembling 2.
  • Page 6 B. Remove the winch and drill the five 6.2 mm diameter holes. ® C. Bolt the base of the winch to the deck using five M6 bolts (not supplied by Harken ), correctly chosen for the thickness and type of the boat deck. Consult the yard that built the boat in case of doubt.
  • Page 7: Maintenance

    Installation and maintenance of winches must be carried out exclusively by specialized personnel. ® In the case of doubt contact Harken Tech Service at techservice@harken.it Disassembly procedure Tools needed...
  • Page 8 Carry out procedure as shown in the paragraph on winch installation and then do the following: 6. Completely unscrew the three screws n°16 7. Remove the stripper arm support n°12 and slide out the bushing 8. Slide out the central shaft n°7 9.
  • Page 9 If it is necessary to replace any jaws of the winch, proceed as follows: I. Unscrew the 3 screws n°14 II. Remove the jaws n°19 ( 4Nm/35 in-lb) If it is necessary to remove any pawls in the central shaft, proceed as follows: Unscrew the screw n°10 and remove the washer n°9 ( 4Nm/35 in-lb) Once the winch is completely disassembled, clean the parts: use a basin of diesel oil to soak...
  • Page 10 Exploded view with maintenance products Anti-seize Harken ® Grease Harken ® Pawl Oil Axial Threadlocker Apply Harken grease on assy socket screw ® Apply Harken grease on drum gear ® 20 STP Installation and Maintenance Manual Performa Winch ™...
  • Page 11 Once in position, check that the pawls can be easily opened and closed with a finger. ® In case of doubt concerning the assembly procedure contact Harken Tech Service: techservice@harken.it 20 STP Installation and Maintenance Manual...
  • Page 12: Ordering Spare Parts

    Refer to the Harken Limited Worldwide Warranty in the Harken Catalogue and on the website www.harken.com Ordering spare parts ® Spare parts can be requested from Harken ® described in the Harken Limited Worldwide Warranty, indicating the part number in the W XXXXX...
  • Page 13: Exploded View

    Exploded view 1/2 20 STP Installation and Maintenance Manual Performa Winch ™...
  • Page 14 Exploded view 2/2 20 STP Installation and Maintenance Manual Performa Winch ™...
  • Page 15: Parts List

    Screw M8x20 UNI 6109 A96620900 PERFORMA W20 Jaws Assembly Lower Jaw W20 PERFORMA Upper Jaw W20 S663760080 PERFORMA Peeler W20 S385970001 SPRING *Available with service kit; see website www.harken.com **Winch product sticker 20 STP Installation and Maintenance Manual Performa Winch ™...
