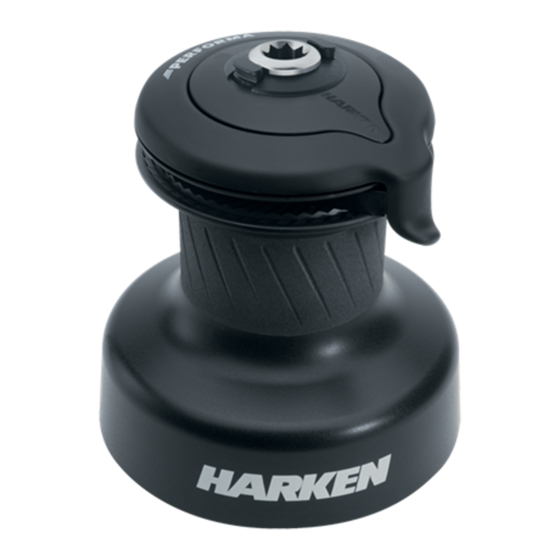

Installation and Maintenance Manual
MRPW-A
Performa
Winch 80.3 STP

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Performa Winch 80.3 STP and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Harken Performa Winch 80.3 STP

  • Page 1 Installation and Maintenance Manual MRPW-A Performa Winch 80.3 STP ™...
  • Page 2 Installation Installation Procedure Positioning the self-tailing arm Maintenance Washing Maintenance table Disassembly procedure Exploded view with maintenance products Assembly Harken limited worldwide warranty ® Ordering spare parts Exploded view Parts list 80.3 STP Installation and Maintenance Manual - Mod.A Performa Winch ™...
  • Page 3: Technical Characteristics

    ® In case of doubt the Harken Tech Service is at your disposal at techservice@harken.it ® This Manual is available only in English. If you do not fully understand the English language, do not carry out the operations described in this Manual.
  • Page 4: Installation

    It is the installer's responsibility to carry out all structural tests needed to ensure that the deck can bear the load. Harken does not supply the screws needed to install the winch since these may vary depending ®...
  • Page 5: Installation Procedure

    Installation procedure To install the winch, remove the drum support and use Hexagon Head (HH) cap screws. Tools needed: One medium flat-bladed screwdriver A number six hex key Rags To identify the various parts refer to the exploded view at the end of this Manual. Torque to apply when assembling 1.
  • Page 6 5. Remove the stripper arm n°44 by rotating 6. Unscrew the three screws n°43 and lifting it ( 20 Nm/177 lb-in) 7 . Slide out the drum n°41 and the roller 8. Unscrew the six screws n°23 bearing n°17 9. Slide out the assy flange n°19 10.
  • Page 7 11. Slide out the roller bearing n°18 12. Unscrew the six screws n°22 ( 20 Nm/177 lb-in) 13. Slide out the drum support n°15 80.3 STP Installation and Maintenance Manual - Mod.A Performa Winch ™...
  • Page 8 A. Position the base of the winch on the deck and mark the position of the holes or use the drilling cut-out template at the point where you have decided to place the winch. Below is a reduced scale diagram. The drilling cut out template is available on the Harken website, www.harken.com ®...
  • Page 9: Maintenance Table

    Installation and maintenance of winches must be carried out exclusively by specialized personnel. In the case of doubt contact Harken Tech Service at techservice@harken.it ®...
  • Page 10 16. Remove the washer n°10 17 . Slide out roller bearings n°2 and gear n°13 18. Remove the roller bearing n°2 and the 19. Remove the roller bearing n°2 and the washer n°14 washer n°10 20. Remove the gear n°12 21.
  • Page 11 22. Slide out the assy pinion n°9 23. Remove the gear n°4 24. Remove the washer n°3 25. Remove the roller bearing n°2 26. Remove the central shaft n°24 and the 27 . Remove washers n°25 and n°26 spacer n°27 Important: The plastic washer must be positioned in contact with the winch base.
  • Page 12 If it is necessary to replace any jaws of the winch, proceed as follows: I. Unscrew the 3 screws n°43 II. Remove the jaws ( 20 Nm/177 lb-in) Inspect balls inside the drum and carefully check the correct position; if it is necessary to put back any balls, push balls in the race (as shown below): Once the winch is completely disassembled, clean the parts with a degreasing that does not leave residues, proper to clean metal components;...
  • Page 13 Apply Harken grease: 1. on assy socket screw - 2. on drum gear ® NOTICE On every gear and every component that must be greased, apply Harken grease with a brush in a proper ® quantity as shown below: NOTICE...
  • Page 14 Once clockwise direction starting from the pin. in position, check that the pawls can be easily opened and closed with a finger. In case of doubt concerning the assembly procedure contact Harken Tech Service: ® techservice@harken.it 80.3 STP...
  • Page 15: Ordering Spare Parts

    Limited Worldwide Warranty in the Harken Catalogue and on the website ® ® www.harken.com Ordering spare parts Spare parts can be requested from Harken ® described in the Harken Limited Worldwide ® W XXXXX Warranty, indicating the part number in the...
  • Page 16: Exploded View

    Exploded view 1/2 80.3 STP Installation and Maintenance Manual - Mod.A Performa Winch ™...
  • Page 17 Exploded view 2/2 80.3 STP Installation and Maintenance Manual - Mod.A Performa Winch ™...
  • Page 18: Parts List

    Screw M8x45 UNI 5931 S405860080 Spacer A94055700 Assembly Pinion Z14 Pinion Z14 S455420081 Bushing Ø24,5xØ28,5x27 S405620004 Hub 2nd ratchet *Available with service kit; see website www.harken.com **Winch product sticker 80.3 STP Installation and Maintenance Manual - Mod.A Performa Winch ™...
