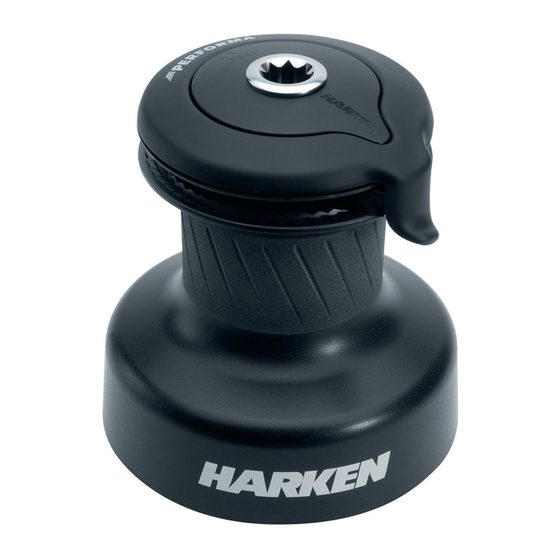

Summary of Contents for Harken Performa Winch 40.2 STP
- Page 1 Installation and Maintenance Manual MRPW-03 Performa Winch 40.2 STP ™...
- Page 2 Outline Installation Installation procedure Positioning the self-tailing arm Maintenance Washing Maintenance table Disassembly procedure Exploded view with maintenance products Assembly Harken limited worldwide warranty ® Ordering spare parts Exploded view Parts list 40.2 STP Installation and Maintenance Manual Performa Winch...
-
Page 3: Technical Characteristics
® In case of doubt the Harken Tech Service is at your disposal at techservice@harken.it This Manual is available only in English. If you do not fully understand the English language, do not carry out the operations described in this Manual. -
Page 4: Installation
It is the installer's responsibility to carry out all structural tests needed to ensure that the deck can bear the load. ® Harken does not supply the screws needed to install the winch since these may vary depending on the deck on which it is to be installed. - Page 5 Procedure To install the winch you must remove the drum and use Socket Head (SH) bolts. Tools needed One medium flat-bladed screwdriver To identify the various parts, refer to the exploded view at the end of this Manual. Torque to apply when assembling 2.
- Page 6 A. Position the base of the winch on the deck and mark the position of the holes or use the drilling cut-out template at the point where you have decided to place the winch. Below is a reduced scale diagram. ® The drilling cut out template is available on the Harken website, www.harken.com final pinion position Ø123...
-
Page 7: Maintenance
Installation and maintenance of winches must be carried out exclusively by specialized personnel. ® In the case of doubt contact Harken Tech Service at techservice@harken.it Disassembly procedure Tools needed... - Page 8 Carry out procedure as shown in the paragraph on winch installation and then do the following: 6. Completely unscrew the three screws n° 24 7 . Remove the stripper arm support n°20 8. Slide out the central shaft n°18 9. Unscrew the 6 hex screws n°15 ( 8Nm/71 in-lb) 10.
- Page 9 12. Remove gear n°6 and remove the pawls 13. Slide off gear n°2 n°4. To facilitate the operation press the spring against the pawl with a blade. 14. Slide off gear n°13 15. Remove pin n°7 16. Slide off gear n°9 17.
- Page 10 If it is necessary to replace any jaws of the winch, proceed as follows: II. Remove the jaws n°22 I. Unscrew the 4 screws n°23 ( 4Nm/35 in-lb) Inspect balls inside the drum and carefully check the correct position; if it is necessary to put back any balls, push balls in the race (as shown below): Once the winch is completely disassembled, clean the parts: use a basin of diesel oil to soak metal components and rinse plastic parts in fresh water.
- Page 11 Exploded view with maintenance products Anti-seize Harken ® Grease Harken ® Pawl Oil Apply Harken grease on assy socket screw ® 40.2 STP Installation and Maintenance Manual Performa Winch ™...
- Page 12 Once in position, check that the pawls can be easily opened and closed with a finger. ® In case of doubt concerning the assembly procedure contact Harken Tech Service: techservice@harken.it 40.2 STP Installation and Maintenance Manual...
-
Page 13: Ordering Spare Parts
Limited Worldwide Warranty in the Harken ® Catalogue and on the website www.harken.com Ordering spare parts ® Spare parts can be requested from Harken ® described in the Harken Limited Worldwide W XXXXX Warranty, indicating the part number in the... -
Page 14: Exploded View
Exploded view 1/2 40.2 STP Installation and Maintenance Manual Performa Winch ™... - Page 15 Exploded view 2/2 40.2 STP Installation and Maintenance Manual Performa Winch ™...
-
Page 16: Parts List
Performa Black Stripper Arm W40 M0649802 Heli-coil M6x9 S4130900A7 Bushing Ø22xØ25x8.5 M0635103 Socket head screw M6x16 UNI 5931 S657280052 Performa Shim W40 *Available with service kit; see website www.harken.com **Winch product sticker 40.2 STP Installation and Maintenance Manual Performa Winch ™...
