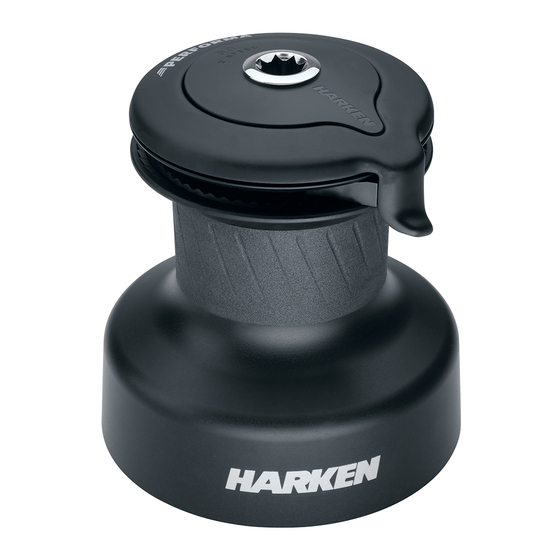

- Page 1 Installation and Maintenance Manual MRPW-D Performa Winch 50.2 STP ™...
- Page 2 Installation Installation procedure Positioning the self-tailing arm Maintenance Washing Maintenance table Disassembly procedure Exploded view with maintenance products Assembly Harken limited worldwide warranty ® Ordering spare parts Exploded view Parts list 50.2 STP Performa Winch Installation and Maintenance Manual - Mod.D...
-
Page 3: Technical Characteristics
® In case of doubt the Harken Tech Service is at your disposal at techservice@harken.it This Manual is available only in English. If you do not fully understand the English language, do not carry out the operations described in this Manual. -
Page 4: Installation
It is the installer's responsibility to carry out all structural tests needed to ensure that the deck can bear the load. ® Harken does not supply the screws needed to install the winch since these may vary depending on the deck on which it is to be installed. - Page 5 Procedure To install the winch, remove the drum and use Socket Head (SH) bolts. Tools needed One medium flat-bladed screwdriver To identify the various parts, refer to the exploded view at the end of this Manual. Torque to apply when assembling 2.
- Page 6 A. Position the base of the winch on the deck and mark the position of the holes or use the drilling cut-out template at the point where you have decided to place the winch. Below is a reduced scale diagram. ® The drilling cut out template is available on the Harken website, www.harken.com final pinion position Ø150...
-
Page 7: Maintenance
Installation and maintenance of winches must be carried out exclusively by specialized personnel. ® In the case of doubt contact Harken Tech Service at techservice@harken.it Disassembly procedure Tools needed... - Page 8 Carry out procedure as shown in the paragraph on winch installation and then do the following: 6. Completely unscrew the three screws n° 27 7. Slide out the central shaft n°20 and remove the stripper arm support n°22 9. Unscrew the 5 hex screws n°17 9.
- Page 9 12. Remove gear n°9 and remove the pawls n°7 . To facilitate the operation press the spring against the pawl with a blade. 13. Slide off gear n°2 14. Remove the pinion n°10. 15. Slide off gear n°5 16. Remove the washer n°4. 50.2 STP Performa Winch...
- Page 10 If it is necessary to replace any jaws of the winch, proceed as follows: I. Unscrew the 4 screws n°25 II. Remove the jaws n°24 ( 4Nm/35 in-lb) Inspect balls inside the drum and carefully check the correct position; if it is necessary to put back any balls, push balls in the race (as shown below): Once the winch is completely disassembled, clean the parts with a degreasing that does not leave residues, proper to clean metal components;...
- Page 11 ® Apply Harken grease: 1. on assy socket screw ® NOTICE On every gear and every component that must be greased, apply Harken grease with a brush in a proper ® quantity as shown below: NOTICE Harken grease to apply on all ®...
- Page 12 Hold the spring closed and slide the pawl into its housing. Once in position, check that the pawls can be easily opened and closed with a finger. ® In case of doubt concerning the assembly procedure contact Harken Tech Service: techservice@harken.it 50.2 STP Performa Winch Installation and Maintenance Manual - Mod.D...
-
Page 13: Ordering Spare Parts
Limited Worldwide Warranty in the Harken ® Catalogue and on the website www.harken.com Ordering spare parts ® Spare parts can be requested from Harken ® described in the Harken Limited Worldwide W XXXXX Warranty, indicating the part number in the... -
Page 14: Exploded View
Exploded view 1/2 50.2 STP Performa Winch Installation and Maintenance Manual - Mod.D ™... - Page 15 Exploded view 2/2 50.2 STP Performa Winch Installation and Maintenance Manual - Mod.D ™...
-
Page 16: Parts List
S414900080 Bushing Ø12xØ14x8 S657320052 Performa Shim W50 S413330085 Bushing Ø12xØ14x11 S4133200B3 Bushing for support M0606303 Screw M8x25 UNI 5931 *Available with service kit; see website www.harken.com **Winch product sticker 50.2 STP Performa Winch Installation and Maintenance Manual - Mod.D ™...
