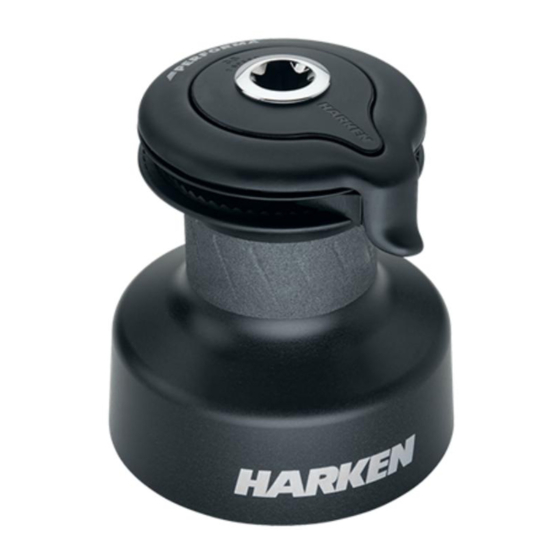

  • Page 1 Installation and Maintenance Manual MRPW-D Performa Winch 35.2 STP ™...
  • Page 2 Installation Installation procedure Positioning the self-tailing arm Maintenance Washing Maintenance table Disassembly procedure Exploded view with maintenance products Assembly Harken limited worldwide warranty ® Ordering spare parts Exploded view Parts list 35.2 STP Installation and Maintenance Manual - Mod.D Performa Winch ™...
  • Page 3: Technical Characteristics

    In case of doubt the Harken ® Tech Service is at your disposal at techservice@harken.it This Manual is available only in English. If you do not fully understand the English language, do not carry out the operations described in this Manual.
  • Page 4: Installation

    It is the installer's responsibility to carry out all structural tests needed to ensure that the deck can bear the load. ® Harken does not supply the screws needed to install the winch since these may vary depending on the deck on which it is to be installed.
  • Page 5 Procedure To install the winch, remove the drum and use Socket Head (SH) bolts. Tools needed One medium flat-bladed screwdriver To identify the various parts, refer to the exploded view at the end of this Manual. Torque to apply when assembling 2.
  • Page 6 B. Remove the winch and drill the five 6.2 mm diameter holes. ® C. Bolt the base of the winch to the deck using five M6 bolts (not supplied by Harken ), correctly chosen for the thickness and type of the boat deck. Consult the yard that built the boat in case of doubt.
  • Page 7: Maintenance

    Installation and maintenance of winches must be carried out exclusively by specialized personnel. ® In the case of doubt contact Harken Tech Service at techservice@harken.it Disassembly procedure Tools needed...
  • Page 8 Carry out procedure as shown in the paragraph on winch installation and then do the following: 6. Completely unscrew the three screws n° 25 7 . Remove the stripper arm support n°21 8. Slide out the central shaft n°19 9. Unscrew the 6 hex screws n°16 ( 8Nm/71 in-lb) 10.
  • Page 9 12. Remove gear n°7 and remove the pawls 13. Slide off gear n°3 n°5. To facilitate the operation press the spring against the pawl with a blade. 14. Slide off gear n°14 15. Slide off gear n°10 16. Remove the pawls n°5. To facilitate the 17.
  • Page 10 If it is necessary to replace any jaws of the winch, proceed as follows: I. Unscrew the 4 screws n°23 II. Remove the jaws n°22 ( 4Nm/35 in-lb) Once the winch is completely disassembled, clean the parts with a degreasing that does not leave residues, proper to clean metal components;...
  • Page 11 ® Apply Harken grease: 1. on assy socket screw ® NOTICE On every gear and every component that must be greased, apply Harken grease with a brush in a proper ® quantity as shown below: NOTICE Harken grease to apply on all ®...
  • Page 12 Once in position, check that the pawls can be easily opened and closed with a finger. ® In case of doubt concerning the assembly procedure contact Harken Tech Service: techservice@harken.it 35.2 STP Installation and Maintenance Manual - Mod.D...
  • Page 13: Ordering Spare Parts

    Limited Worldwide Warranty in the Harken ® Catalogue and on the website www.harken.com Ordering spare parts ® Spare parts can be requested from Harken ® described in the Harken Limited Worldwide W XXXXX Warranty, indicating the part number in the...
  • Page 14: Exploded View

    Exploded view 1/2 35.2 STP Installation and Maintenance Manual - Mod.D Performa Winch ™...
  • Page 15 Exploded view 2/2 35.2 STP Installation and Maintenance Manual - Mod.D Performa Winch ™...
  • Page 16: Parts List

    Housing Winch 35 S414890080 Bushing Ø9xØ11x7 S4130900A7 Bushing Ø22xØ25x8.5 M0635103 Socket head screw M6x16 UNI 5931 S413150082 Washer Ø62xØ80x1.5 *Available with service kit; see website www.harken.com **Winch product sticker 35.2 STP Installation and Maintenance Manual - Mod.D Performa Winch ™...
