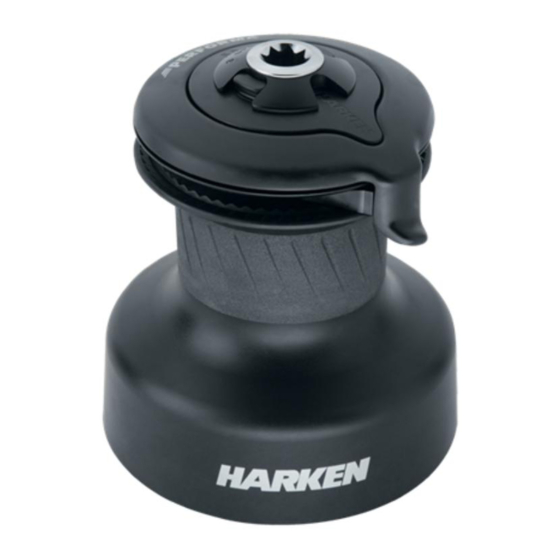

Harken Performa 50.3 STP Installation And Maintenance Manual

Harken Performa 50.3 STP Installation And Maintenance Manual

Advertisement

Quick Links

Installation and Maintenance Manual
MRPW50.3/55.3 - 0
Performa
Winch
50.3 STP
55.3 STP

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Performa 50.3 STP and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Harken Performa 50.3 STP

  • Page 1 Installation and Maintenance Manual MRPW50.3/55.3 - 0 Performa Winch ™ 50.3 STP 55.3 STP...
  • Page 2 Winch installation procedure Positioning the self-tailing arm Maintenance Washing Maintenance table Winch disassembly procedure Winch exploded view with maintenance products Winch assembly Harken limited worldwide warranty ® Ordering spare parts Exploded view Performa Winch 50.3 STP Parts list Performa Winch 50.3 STP Exploded view Performa Winch 55.3 STP...
  • Page 3: Technical Characteristics

    ® In case of doubt the Harken Tech Service is at your disposal at techservice@harken.it This Manual is available only in English. If you do not fully understand the English language, do not carry out the operations described in this Manual.
  • Page 4 Outline 50.3 STP Ø111 220 5 96 3 Ø195 50.3 STP - 55.3 STP Installation and Maintenance Manual - Mod.0 Performa Winch ™...
  • Page 5 Outline 55.3 STP Ø111 220 5 96 3 Ø195 50.3 STP - 55.3 STP Installation and Maintenance Manual - Mod.0 Performa Winch ™...
  • Page 6: Installation

    It is the installer's responsibility to carry out all structural tests needed to ensure that the deck can bear the load. ® Harken does not supply the screws needed to install the winch since these may vary depending on the deck on which it is to be installed.
  • Page 7: Installation Procedure

    Installation procedure Installation procedure To install the winch, remove the drum and use Socket Head (SH) bolts. Torque to be applied in assembly phase. 3. Unscrew the three M6 1. Unscrew the M8 central 2. Slide off the socket and screws screw the covers...
  • Page 8 A. Position the base of the winch on the deck and mark the position of the holes or use the drilling cut-out template at the point where you have decided to place the winch. Below is a reduced scale diagram. ® The drilling cut out template is available on the Harken website, www.harken.com 30° 30°...
  • Page 9: Maintenance

    Installation and maintenance of winches must be carried out exclusively by specialized personnel. ® In the case of doubt contact Harken Tech Service at techservice@harken.it WARNING! Make sure that the power is switched off before installing or carrying out maintenance on the winch.
  • Page 10 Winch disassembly procedure Winch disassembly procedure Tools needed One medium flat-bladed screwdriver A number five hex key Brush Rags To identify the various parts refer to the exploded view at the end of this Manual. Torque to be applied in assembly phase Carry out procedure as shown in the paragraph on winch installation and then do the following: 1.
  • Page 11 Winch disassembly procedure 4. Remove the flange and the central disconnection button 5. Unscrew the two M4 screws 6. Unscrew the four M6 screws 16Nm 50.3 STP - 55.3 STP Installation and Maintenance Manual - Mod.0 Performa Winch ™...
  • Page 12 Winch disassembly procedure 7 . Slide off gear, the two pawls and springs 8. Slide off supports and the three assembly gears (satellites). To remove the elastic ring, use a flat headed screw or a punch. 9. Slide out gears and pins in the 10.
  • Page 13 Winch disassembly procedure 12. Remove the assembly housing 11. Unscrew the five M8 screws 20Nm 13. Slide off gears of the central axle 14. Slide off gears of the final axle. and of the idler axle Remove the four pawls and springs 50.3 STP - 55.3 STP Installation and Maintenance Manual - Mod.0 Performa...
  • Page 14 Winch disassembly procedure If it is necessary to replace any jaws of the winch, proceed as follows: Inspect balls inside the drum and carefully check the correct position; if it is necessary to put back any balls, push balls in the race (as shown below): Once the winch is completely disassembled, clean the parts with a degreasing that does not leave residues, proper to clean metal components;...
  • Page 15: Maintenance Products

    ® Apply Harken grease: 1. on assy socket screw - 2. on washer ® NOTICE On every gear and every component that must be greased, apply Harken grease with a brush in a proper ® quantity as shown below: NOTICE...
  • Page 16: Winch Assembly

    Hold the spring closed and slide the pawl into its housing. Once in position, check that the pawls can be easily opened and closed with a finger. In case of doubt concerning the assembly procedure contact Harken ® Tech Service: techservice@harken.it 50.3 STP - 55.3 STP...
  • Page 17: Ordering Spare Parts

    Refer to the Harken Limited Worldwide Warranty in the Harken Catalogue and on the website www.harken.com Ordering spare parts Spare parts can be requested from Harken ® ® described in the Harken Limited Worldwide Warranty, indicating the part number in the...
  • Page 18: Exploded View

    Exploded view 1/2 Performa Winch 50.3 STP 50.3 STP - 55.3 STP Installation and Maintenance Manual - Mod.0 Performa Winch ™...
  • Page 19 Exploded view 2/2 Performa Winch 50.3 STP 50.3 STP - 55.3 STP Installation and Maintenance Manual - Mod.0 Performa Winch ™...
  • Page 20: Parts List

    S680780004 Clutch 1st direct w50.3 Winch Product Sticker** S377510001 Clutch spring S396950004 Special pawl Ø8 *Available with service kit; see website www.harken.com S680880041 Insert **Winch product sticker M6020494 Bushing Ø8xØ10x12 50.3 STP - 55.3 STP Installation and Maintenance Manual - Mod.0...
  • Page 21 Exploded view 1/2 Performa Winch 55.3 STP 50.3 STP - 55.3 STP Installation and Maintenance Manual - Mod.0 Performa Winch ™...
  • Page 22 Exploded view 2/2 Performa Winch 55.3 STP 50.3 STP - 55.3 STP Installation and Maintenance Manual - Mod.0 Performa Winch ™...
  • Page 23 Insert A74135100 Bearing Ø85xØ97x26 M6020494 Bushing Ø8xØ10x12 S418760063 Winch Serial Number Sticker** S743640004 Gear Z14 *Available with service kit; see website www.harken.com A96807900 Performa assembly Jaws W50.3 S743650041 Gear Z38 **Winch product sticker Lower Jaw W50 A96807500 Performa drum W50.3 Performa Upper jaw W50.3...

This manual is also suitable for:

Performa 55.3 stp
