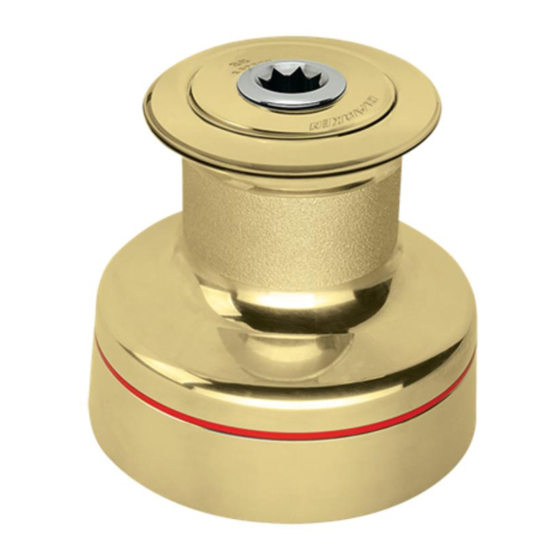

Harken 20.2 PTBBB Installation And Maintenance Manual

Harken 20.2 PTBBB Installation And Maintenance Manual

Radial winch

Advertisement

Quick Links

Installation and Maintenance Manual
MRW-A
Radial Winch 20.2 PT
BBB / CCC

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 20.2 PTBBB and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Harken 20.2 PTBBB

  • Page 1 Installation and Maintenance Manual MRW-A Radial Winch 20.2 PT BBB / CCC...
  • Page 2 Procedure Installation procedure Maintenance Washing Maintenance table Disassembly procedure Exploded view with maintenance products Assembly Harken limited worldwide warranty ® Ordering spare parts Exploded view Parts List Radial Winch 20 PTBBB Radial Winch 20 PTCCC 20.2 PT BBB / CCC Radial Winch Installation and Maintenance Manual - Mod.A...
  • Page 3: Technical Characteristics

    In case of doubt the Harken ® Tech Service is at your disposal at techservice@harken.it This Manual is available only in English. If you do not fully understand the English language, do not carry out the operations described in this Manual.
  • Page 4: Installation

    It is the installer's responsibility to carry out all structural tests needed to ensure that the deck can ® bear the load. Harken does not supply the screws needed to install the winch since these may vary depending on the deck on which it is to be installed.
  • Page 5 The winch can be installed following the procedure below: Procedure To install the winch you must remove the drum and use Socket Head (SH) and Hexagonal Headed (HH) bolts. Tools needed One medium flat-bladed screwdriver To identify the various parts, refer to the exploded view at the end of this Manual. Torque to apply when assembling 2.
  • Page 6: Installation Procedure

    The drilling cut out template is available on the Harken® website, www.harken.com B. Remove the winch and drill the five 6.2 mm diameter holes. C. Bolt the base of the winch to the deck using five M6 bolts (not supplied by Harken ®...
  • Page 7: Maintenance

    Installation and maintenance of winches must be carried out exclusively by specialized personnel. In the case of doubt contact Harken ® Tech Service at techservice@harken.it...
  • Page 8 Carry out the Procedure as shown in the paragraph on winch installation and then do the following: 3. Completely unscrew the three screws n°17 4. Remove the socket support n°11 5. Slide out the central shaft n°6 6. Remover the pin n°5 7.
  • Page 9 9. Unscrew the screw n°9 and remove the washer n°8 ( 4Nm/35 in-lb) Once the winch is completely disassembled, clean the parts with a degreasing that does not leave residues, proper to clean metal components; rinse plastic parts in fresh water. Once you have done this, dry the parts with cloths that do not leave residue.
  • Page 10 Apply Harken grease: 1. on assy socket screw - 2. on drum gear ® NOTICE On every gear and every component that must be greased, apply Harken grease with a brush in a proper ® quantity as shown below: NOTICE...
  • Page 11: Ordering Spare Parts

    Once in position, check that the pawls can be easily opened and closed with a finger. ® In case of doubt concerning the assembly procedure contact Harken Tech Service: techservice@harken.it ® Harken limited worldwide warranty Refer to the Harken ®...
  • Page 12 Manufacturer Harken Italy S.p.A. ® Tech Service Via Marco Biagi, 14 Email: techservice@harken.it 22070 Limido Comasco (CO) Italy Tel: (+39) 031.3523511 Customer Service Fax: (+39) 031.3520031 Tel: (+39) 031.3523511 Email: info@harken.it Email: info@harken.it Web: www.harken.com Headquarters Harken , Inc. ®...
  • Page 13: Exploded View

    Exploded view Radial Winch 20.2 PTBBB, PTCCC 20.2 PT BBB / CCC Radial Winch Installation and Maintenance Manual - Mod.A...
  • Page 14 Exploded view Radial Winch 20.2 PTBBB, PTCCC 20.2 PT BBB / CCC Radial Winch Installation and Maintenance Manual - Mod.A...
  • Page 15: Parts List

    Screw M6x16 UNI1207 M0601903 Socket PT BBB S416640046 Washer Ø7.7xØ25x5.8 S415130085 Screw M8x20 UNI 6109 M0614303 Winch Product Sticker** *Available with service kit; see website www.harken.com **Winch product sticker 20.2 PT BBB / CCC Radial Winch Installation and Maintenance Manual - Mod.A...
  • Page 16 Screw M6x16 UNI1207 M0601903 Socket PT C S416680046 Washer Ø7.7xØ25x5.8 S415130085 Screw M8x20 UNI 6109 M0614303 Winch Product Sticker** *Available with service kit; see website www.harken.com **Winch product sticker 20.2 PT BBB / CCC Radial Winch Installation and Maintenance Manual - Mod.A...
