Luci della Ribalta srl, Via Berna 14, 46042 Castel Goffredo MN, Italy. tel +39 0376 771 777 ‐ email info@ldr.it

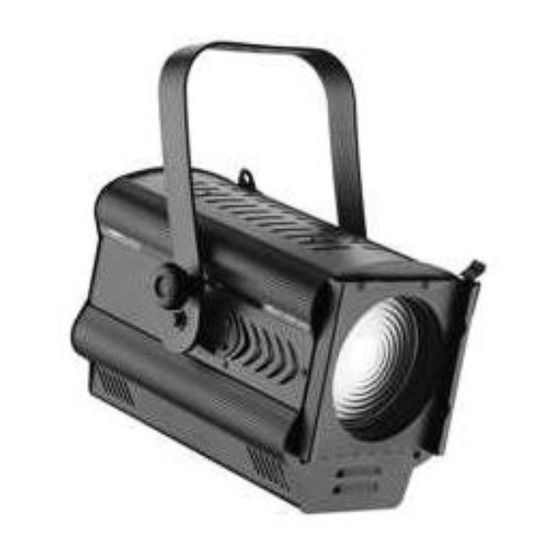

Alba F250 PD 3200K
Alba F250 PD 5600K
Alba PC250 PD 3200K
Alba PC250 PD 5600K
Phase Dimming + DMX512
istruzioni per l'uso
operating instructions
Bedienungsanleitung
instrucciones de
mode d'emploi
gebruiksaanwijzing
230W, 100/260V
manejo
+ RDM
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for LDR Alba F250 PD 3200K
Summary of Contents for LDR Alba F250 PD 3200K
- Page 1 Bedienungsanleitung instrucciones de manejo mode d'emploi gebruiksaanwijzing Alba F250 PD 3200K 01201000 Alba F250 PD 5600K 01201100 Alba PC250 PD 3200K 01202000 Alba PC250 PD 5600K 01202100 230W, 100/260V Phase Dimming + DMX512 + RDM Luci della Ribalta srl, Via Berna 14, 46042 Castel Goffredo MN, Italy. tel +39 0376 771 777 ‐ email info@ldr.it...
-
Page 2: Table Of Contents
10.Local control panel and operation………………………………………………………………… page 06 11.Menu………………………………………….……………………………………………………………..… page 06 11.1 Blocks diagram.…………………………………………………………………………………………. page 06 11.2 Main Menu..……………………………………………………………………………………………... page 07 11.3 Function Menu……………………………………………………………………………………….…. page 07 11.4 Measure Menu.……………………………………………………………………………………….… page 10 11.5 Hidden Menu…………………………………………………..…………………………………….…. page 11 12 Summary of Controls and Functions ….............. page 12 MAINTENANCE 13. Cleaning and maintenance…………………………………………………………………….……. page 13 14. Spare parts …………………………………………………………………………………………………. page 13 15. Warranty……………………………………………………………………………..……………………… page 13 DMX CHARTS 16. DMX Chart 1 ………………………………………………………………………………………………. page 14 16.1 DMX Chart 2 ……………………….……………………………………………………………………. page 14 16.2 DMX Chart 3 …………………………………………………………………………………………….. page 15 LDR Conformity Certificate – Certificato di Conformità – Konformitätserklärung page 16 Complaint form – Modulo di reclamo – Reklamationsformular …………………………. p age 17 WEEE Directive – Direttiva RAEE – WEEE Richtlinie …………………………………………… page 18 Luci della Ribalta srl, Via Berna 14, 46042 Castel Goffredo (MN) Italy Tel. +39 0376 771 777 – fax +39 0376 772 140 – email info@ldr.it – web www.ldr.it ... -
Page 3: Important Safety Norms
Luci della Ribalta accepts no liability for direct, indirect, incidental, special, or consequential damages resulting from the customer’s failure to follow the installation, operating, maintenance and safety procedures in this manual or those generally applicable to lighting equipment. The limitation extends to damages for personal injury, property damage, loss of operations, loss of profits, loss of product or loss of time, whether incurred in by the customer, the customer’s employees or a third party. Apart from the instructions given on this manual, all relevant safety and health standards of the appropriate EU Directives must be complied with. IMPORTANT SAFETY NORMS This product is rated IP 20 and is therefore designed for interior use only. For details on maximum ambient temperature and tilt angle please refer to what indicated on the product label or screen‐ printing on the side of the lens‐tube or the rear of the LED‐house Warning, high voltage ignition. Disconnect the unit from power before servicing Continuous mains power is required for this spotlight as an internal dimmer controls the intensity via DMX or local rotary knob. Use of a phase control dimmed mains supply may damage the internal electronics. Use of a phase control dimmed mains supply may damage the internal electronics This product features fan‐assisted ventilation. Make sure you do not cover the fans or obstruct the air flow at any one time. Make sure the fans are working correctly. Should you detect even the slightest malfunction, switch the luminaire off and carry out the necessary servicing. Replace the fan if necessary. Repairing and replacement of any component of this product must be carried out exclusively by professional personnel in conformity with the relevant safety and health standards and only with original Luci della Ribalta srl components. Replacement of any part of the wiring system must be carried out exclusively by professional personnel in compliance with the original wiring diagram and with components identical to or compatible with those originally fitted. Luci della Ribalta srl, Via Berna 14, 46042 Castel Goffredo (MN) Italy Tel. +39 0376 771 777 – fax +39 0376 772 140 – email info@ldr.it – web www.ldr.it ... -
Page 4: Box Contents
Alba F & PC 250 PD, 3200K and 5600K LED User’s Manual – 2.0 Installation of this product must be exclusively carried out by professional personnel in compliance with the safety norms in force in the country where the product is used. This product must be fitted with a secondary fixing system such as a safety chain or bond. Should this not be supplied as a standard accessory, please make sure you buy it separately and install it before using the product. WARNING: DANGER OF ELECTRICAL SHOCK DO NOT OPERATE ON LIVE EQUIPMENT Disconnect power before opening this fixture to access its light source or electronics. The replacement of the LED source or any of its electronic components can be carried out exclusively by professional personnel upon LDR’s written authorization and only with original Luci della Ribalta srl components. Failure to obtain the manufacturer’s authorization to carry out the replacement/repair, will immediately invalidate the product’s warranty WARNING: EYE DAMAGE HAZARD Make sure this fixture is installed so as to avoid prolonged direct staring at its operating light source (LED) from a distance of less than 7m / 23ft. WARNING: FIRE HAZARD Never locate this fixture on any flammable surface. Minimum distance of any part of the body of the luminaire from any flammable surface or object: 0,5m Minimum distance from lit surface, please refer to product label ... -
Page 5: Weight And Dimensions
packing dimensions: 60x40x45h cm IMPORTANT NOTICE BEFORE THE INSTALLATION / INSTALLATION Before installing this fixture check its weight on the product label and the weight of each accessory you are adding and make sure the structure you are installing it to withstands the total weight. The mounting stirrup rotates around the body of the luminaire and is designed to allow the spotlight to be suspended from above using a C‐clamp or similar, or supported on a stand or bracket from below. CAUTION DO NOT TURN THE LUMINAIRE UPSIDE‐DOWN BUT ALWAYS TURN THE STIRRUP IF YOU NEED TO MOUNT IT ON A STAND OR BRACKET Note: the spotlight’s location must provide suitable ventilation for the LED module. If not supplied choose a suitable clamp and make sure it is correctly fixed and strongly tightened to the stirrup according to the clamp’s manufacturer’s instructions If not supplied choose a suitable safety cable or bond. Clamp it to the eyelet provided on the upper rear part of the luminaire (see picture here below), run it twice around the stirrup and the structure the luminaire is hung to so as to bond them together and close the loop. When tilting the unit make sure the knob blocking the stirrup is strongly tightened and that the luminaire can hold the desired tilt angle Luci della Ribalta srl, Via Berna 14, 46042 Castel Goffredo (MN) Italy Tel. +39 0376 771 777 – fax +39 0376 772 140 – email info@ldr.it – web www.ldr.it ... -
Page 6: Mechanical Operation
The green or green and yellow wire must be connected to the connection point marked with the letter E or with the symbol or coloured in green or in green‐yellow The blue wire must be connected to the connection point marked with the letter N or coloured in black The brown wire must be connected to the connection point marked with the letter L or coloured in red Before you finally position this product for use, temporarily connect it to a properly fused power supply to check the unit works correctly. 7. VOLTAGE Before operating this unit please refer to the product label mounted on each side of the luminaire to check you are operating with the correct voltage. The Alba F/PC PD can be operated between 90V and 260V and the electronic Driver inside the fixture will automatically switch to the available voltage. WARNING: at 100Vac (+/‐10%) it is necessary to reduce the current output from 3,35A to 3A (see chapter 9.4 for further details). The Alba F/PC PD can also be powered by a phase control dimmer, leading (triac) or trailing (IGBT) edge. 8. FREQUENCY Frequency on this product is automatically selected by the electronic Driver (50/60Hz) 9. CONNECT TO THE POWER SUPPLY Connect the unit to a continuous mains power source Make sure the power supply is protected by a suitable thermal magnetic circuit breaker This fixture must be grounde Luci della Ribalta srl, Via Berna 14, 46042 Castel Goffredo (MN) Italy Tel. +39 0376 771 777 – fax +39 0376 772 140 – email info@ldr.it – web www.ldr.it ... -
Page 7: Local Control Panel And Operation
Measure Hide FUNCTION MEASURE HIDE Manual Dimmer TEMPsens Upload 100% FUNCTION MEASURE HIDE Display DmxValue Download FUNCTION MEASURE HIDE Out Freq Dmx rate Res Time FUNCTION MEASURE HIDE Fan Mode Alarms Res Memo FUNCTION MEASURE HIDE Align OUTvalue FullMenu FUNCTION MEASURE HIDE Luci della Ribalta srl, Via Berna 14, 46042 Castel Goffredo (MN) Italy Tel. +39 0376 771 777 – fax +39 0376 772 140 – email info@ldr.it – web www.ldr.it ... -
Page 8: Main Menu
It allows to select the response curve for the ALBA PD as linear. DIMMER E.g. 50% input = 50% output. This setting can only be used on Linear DMX mode. Luci della Ribalta srl, Via Berna 14, 46042 Castel Goffredo (MN) Italy Tel. +39 0376 771 777 – fax +39 0376 772 140 – email info@ldr.it – web www.ldr.it ... - Page 9 It allows to select the 16 bit + Strobe (3 DMX channels) control DMX CHAN mode. For more details please refer to the DMX charts at the end 3 Chn of this manual Luci della Ribalta srl, Via Berna 14, 46042 Castel Goffredo (MN) Italy Tel. +39 0376 771 777 – fax +39 0376 772 140 – email info@ldr.it – web www.ldr.it ...
- Page 10 Luci della Ribalta srl, Via Berna 14, 46042 Castel Goffredo (MN) Italy Tel. +39 0376 771 777 – fax +39 0376 772 140 – email info@ldr.it – web www.ldr.it ...
-
Page 11: Measure Menu
10 Luci della Ribalta srl, Via Berna 14, 46042 Castel Goffredo (MN) Italy Tel. +39 0376 771 777 – fax +39 0376 772 140 – email info@ldr.it – web www.ldr.it ... -
Page 12: Hidden Menu
11 Luci della Ribalta srl, Via Berna 14, 46042 Castel Goffredo (MN) Italy Tel. +39 0376 771 777 – fax +39 0376 772 140 – email info@ldr.it – web www.ldr.it ... - Page 13 Default Factory RESET Return to default settings ‐‐‐ 8 BITS control mode on 1 channel ; DMX 9 DMX channels selection 16 BITS control mode on 2 channels ; 1 CHANNEL Chan 16 BITS + STROBE on 3 channels Sets the ID number to activate Between 000 (no remote control) 10 Remoto Remoto control for upload and 000 and 250 download firmware PHASEDIM (controlled by phase dimming input); MANUAL 11 Mode Sets the input control ‐‐‐ (controlled from the external potentiometer); DMX 12 Luci della Ribalta srl, Via Berna 14, 46042 Castel Goffredo (MN) Italy Tel. +39 0376 771 777 – fax +39 0376 772 140 – email info@ldr.it – web www.ldr.it ...
-
Page 14: Cleaning And Maintenance
E Full Menu ON the control menu OFF = Measures menu not available F Current Sets the output current Between 0,5A and 4A 3,35A CLEANING AND MAINTENANCE To ensure maximum performance of the product, a regular maintenance service should be carried out. Please make sure the product is cold and disconnected from power supply when doing this. General maintenance * Clean all reflective parts such as lenses opening the product, if necessary. * Check the lenses and replace any visibly damaged component. * Clean air ducts and fans in order to allow proper ventilation activity on the product. * Check internal and external wiring and replace any cable which should be damaged by heat or mechanical agents. SPARE PARTS All components are available as spare parts. We strongly recommend you always use original LDR components as spare parts. Please refer to our technical assistance should you need to order and/or replace any part of the unit. 15. WARRANTY Our warranty covers all structural and manufacture defects over from 24 months from the date you purchased this product. In case of complaints we strongly recommend you use the complaint form at the end of this manual or contact the local dealer who supplied the product to you. In any case please report the serial number of the product. 13 Luci della Ribalta srl, Via Berna 14, 46042 Castel Goffredo (MN) Italy Tel. +39 0376 771 777 – fax +39 0376 772 140 – email info@ldr.it – web www.ldr.it ... -
Page 15: Dmx Charts
This DMX chart refers to the fixture set at 16 bits resolution (see Menu Function DMX Chan 2Chn): Type of DMX channel Function Effect Decimal % control Adjusts luminous output intensity between 0% 1 Master dimmer Proportional 0 ‐ 255 0% ‐ and 100% % 2 Dimmer fine Proportional Fine dimmer control 16 bit 0 ‐ 255 0% ‐ % Date: Fixture: ALBA PD Table name: DMX 512 function ‐ Chart 2 Issue: 1 21/11/2022 14 Luci della Ribalta srl, Via Berna 14, 46042 Castel Goffredo (MN) Italy Tel. +39 0376 771 777 – fax +39 0376 772 140 – email info@ldr.it – web www.ldr.it ... - Page 16 160 ‐ 161 63% ‐ 63% Random strobe effect with variable speed from Proportional 162 ‐ 207 64% ‐ 81% slow to fast Step Stop strobe 208 ‐ 209 82% ‐ 82% Random strobe effect with variable speed from Proportional 210 ‐ 255 82% ‐ fast to slow % Date: Fixture: ALBA PD Table name: DMX 512 function ‐ Chart 3 Issue: 1 21/11/2022 Luci della Ribalta srl reserves the right to modify the present document without prior notice. 15 Luci della Ribalta srl, Via Berna 14, 46042 Castel Goffredo (MN) Italy Tel. +39 0376 771 777 – fax +39 0376 772 140 – email info@ldr.it – web www.ldr.it ...
- Page 17 P .iva 01815640204 c.iso IT01815640204 Luci della Ribalta srl, Via Berna 14, 46042 Castel Goffredo MN Italy - tel +39 0376 771777 - web www.ldr.it - email info@ldr.it IT/015/MN/11 VAT registration # It01815640204 - REA MN 198438 - Authorized Exporter #...
- Page 18 Reklamationsformular ‐ formulaire de réclamation ‐ hoja de reclamaciones email: info@ldr.it Azienda ed Indirizzo ‐ Company's name and address ‐ Firmenname und Addresse ‐ Nom et adresse ‐ Nombre y direcciòn _______________________________________________________________________________________________________ _______________________________________________________________________________________________________ Nome del rivenditore da cui il prodotto è stato acquistato ‐ Name of the dealer where you have purchased the product ‐ Namen der Firma, die Ihnen das Produkt verkauft hat ‐ Nom de la société qui vous a vendu ce produit ‐ Nombre de la compañia donde han comprado el producto: ____________________________________________________________________________________________________ 01201000 Alba F250 PD 3200K 230W Prodotto difettoso 01201100 Alba F250 PD 5600K 230W Faulty product 01202000 Alba PC250 PD 3200K 230W Defekte s Produkt 01202100 Alba PC250 PD 5600K 230W Produit défectueux Producto defectuoso Descrizione del problema /Problem found/Beschreibung des Defekts/Description du défaut/Descripciòn del problema ________________________________________________________________________________________________________ ________________________________________________________________________________________________________ ________________________________________________________________________________________________________ ________________________________________________________________________________________________________ Data d'acquisto ‐ Date of purchase ‐ Kaufdatum ‐ Date de l'achat ‐ Fecha de compra ________________________ Si prega di allegare prova d'acquisto ‐ Please attach copy of purchase invoice ‐ Bitte Kaufnachweis beilegen ‐ Veuillez joindre une quittance d'achat ‐ Les rogamos incluyan lcopia de la factura de compra. Nome e qualifica ‐ Name and position ‐ Name und Funktion ‐ Nom et fonction ‐ Nombre y cargo ____________________________________________________________________ Data ‐ Date ‐ Datum ‐ Date ‐ Fecha _____________________________...
- Page 19 local de escoamento de residuos, ou a loja na qual efectuou a compra. Richtlinie 2002/96/EU (Elektro- und Elektronik- Altgeräte - WEEE): Benutzerinformationen. Dieses Produkt entspricht Richtlinie WEEE-symbolet (Waste Electrical 2002/96/EU. Das Symbol des auf dem Gerät Electronic Equipment). dargestellten, durchgestrichenen Korbes gibt an, dass Bruken av WEEE-symbolet indikerer at dette Produkt Ende...
- Page 20 Luci della Ribalta srl, Via Berna 14, 46042 Castel Goffredo mn Italy. tel +39 0376 771 777 ‐ fax +39 0376 772 140 ‐ email info@ldr.it...
