istruzioni per l'uso
operating instructions
Bedienungsanleitung
instrucciones de manejo
mode d'emploi
gebruiksaanwijzing

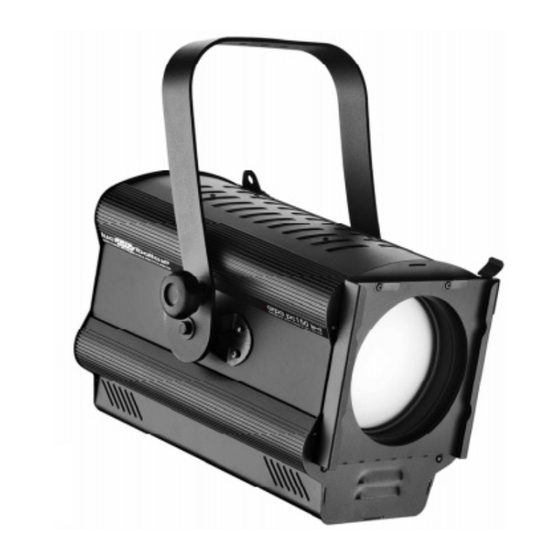

Arpa F150 CM, 180W LED
01151200
Arpa PC150 CM, 180W LED
01152200
RGBW, 100/260V
DMX512 + RDM
Luci della Ribalta srl, Via Berna 14, 46042 Castel Goffredo mn Italy. tel +39 0376 771 777 ‐ fax +39 0376 772 140 ‐ email info@ldr.it
Advertisement
Table of Contents
Related Manuals for LDR Arpa F150 CM
Summary of Contents for LDR Arpa F150 CM
- Page 1 Bedienungsanleitung instrucciones de manejo mode d'emploi gebruiksaanwijzing Arpa F150 CM, 180W LED 01151200 Arpa PC150 CM, 180W LED 01152200 RGBW, 100/260V DMX512 + RDM Luci della Ribalta srl, Via Berna 14, 46042 Castel Goffredo mn Italy. tel +39 0376 771 777 ‐ fax +39 0376 772 140 ‐ email info@ldr.it...
-
Page 2: Table Of Contents
SUMMARY OF CONTROLS AND FUNCTIONS 16. Summary of Controls and Functions ......... 1 1 17. DMX Charts ................ 1 3 17.1 DMX Chart 1 ............ 1 3 17.2 DMX Chart 2 ............ 1 3 17.3 DMX Chart 3 ............ 1 4 17.4 DMX Chart 4 ............ 1 5 LDR Conformity Certificate – Certificato di Conformità – Konformitätserklärung 16 Complaint form – Modulo di reclamo – Reklamationsformular …………………………. 1 7 WEEE Directive – Direttiva RAEE – WEEE Richtlinie …………………………………………… 18 1 Luci della Ribalta srl, Via Berna 14, 46042 Castel Goffredo (MN) Italy Tel. +39 0376 771 777 – fax +39 0376 772 140 – email info@ldr.it – web www.ldr.it ... -
Page 3: Important Safety Norms
Make sure the fans are working correctly. Should you detect even the slightest malfunction, switch the luminaire off and carry out the necessary servicing. Replace the fan if necessary. This product must be fitted with a front protection shield (wire guard or safety glass). Should this not be supplied as a standard accessory, please make sure you buy it separately and install it before using the product. There are no user serviceable parts in this product. Replacement of any internal component of this product must be carried out exclusively by professional personnel and only with original Luci 2 Luci della Ribalta srl, Via Berna 14, 46042 Castel Goffredo (MN) Italy Tel. +39 0376 771 777 – fax +39 0376 772 140 – email info@ldr.it – web www.ldr.it ... -
Page 4: Box Contents
Installation of this product must be exclusively carried out by professional personnel in compliance with the safety norms in force in the country where the product is used. This product must be fitted with a secondary fixing system such as a safety chain or bond. Should this not be supplied as a standard accessory, please make sure you buy it separately and install it before using the product. WARNING: DANGER OF ELECTRICAL SHOCK DO NOT OPERATE ON LIVE EQUIPMENT Disconnect power before opening this fixture to access its light source or electronics. The replacement of the LED source or any of its electronic components can be carried out exclusively by professional personnel upon LDR’s written authorization and only with original Luci della Ribalta srl components. Failure to obtain the manufacturer’s authorization to carry out the replacement/repair, will immediately invalidate the product’s warranty WARNING: EYE DAMAGE HAZARD Make sure this fixture is installed so as to avoid prolonged direct staring at its operating light source (LED) from a distance of less than 7m / 23ft. WARNING: FIRE HAZARD Never locate this fixture on any flammable surface. Minimum distance of any part of the body of the luminaire from any flammable surface or object: 0,5m Minimum distance from lit surface, please refer to product label ... -
Page 5: Weight And Dimensions
packing dim.: 60x40x45h cm packing dim: 60x40x45h cm 4. IMPORTANT NOTICE BEFORE THE INSTALLATION/ INSTALLATION Before installing this fixture check its weight on the product label and the weight of each accessory you are adding and make sure the structure you are installing it to withstand the total weight. The mounting stirrup rotates around the body of the luminaire and is designed to allow the spotlight to be suspended from above using a C‐clamp or similar, or supported on a stand or bracket from below. CAUTION DO NOT TURN THE LUMINAIRE UPSIDE‐DOWN BUT ALWAYS TURN THE STIRRUP IF YOU NEED TO MOUNT IT ON A STAND OR BRACKET Note: the spotlight’s location must provide suitable ventilation for the LED module. If not supplied choose a suitable clamp and make sure it is correctly fixed and strongly tightened to the stirrup according to the clamp’s manufacturer’s instructions If not supplied choose a suitable safety cable or bond. Clamp it to the eyelet provided on the upper rear part of the luminaire (see picture here below), run it twice around the stirrup and the structure the luminaire is hung to so as to bond them together and close the loop. When tilting the unit make sure the knob blocking the stirrup is strongly tightened and that the luminaire can hold the desired tilt angle 4 Luci della Ribalta srl, Via Berna 14, 46042 Castel Goffredo (MN) Italy Tel. +39 0376 771 777 – fax +39 0376 772 140 – email info@ldr.it – web www.ldr.it ... -
Page 6: Mechanical Operation
Ground: green+yellow – Neutral: blue ‐ Phase: brown In case the colours of the wires do not correspond to the colour of the connection points on your plug, please proceed as follows: The green or green and yellow wire must be connected to the connection point marked with the letter E or with the symbol or coloured in green or in green‐yellow The blue wire must be connected to the connection point marked with the letter N or coloured in black The brown wire must be connected to the connection point marked with the letter L or coloured in red Before you finally position this product for use, temporarily connect it to a properly fused power supply to check the lamp works correctly. 7. VOLTAGE Before operating this unit please refer to the product label mounted at the back of the luminaire to check you are operating with the correct voltage. The ARPA RGBW LED can be operated between 90V and 260V and the electronic PSU inside the fixture will automatically switch to the available voltage. 8. FREQUENCY Frequency on this product is automatically selected by the electronic PSU (50/60Hz) 9. CONNECT TO THE POWER SUPPLY Connect the unit to a continuous mains power source Make sure the power supply is protected by a suitable thermal magnetic circuit breaker This fixture must be grounded 5 Luci della Ribalta srl, Via Berna 14, 46042 Castel Goffredo (MN) Italy Tel. +39 0376 771 777 – fax +39 0376 772 140 – email info@ldr.it – web www.ldr.it ... -
Page 7: Control Functions And Operation
XX % XXX MANUAL THE VALUE 11.2 DMX ADDRESS (Addr) It allows to select the initial DMX starting address to remotely control the LED functions. To change the initial DMX address press the rotary switch until an arrow appears, then turn to change to the desired DMX starting address. Press to confirm your selection. Factory setting is 001. PRESS TO ACTIVATE 2 Addr 2 Addr 2 Addr TURN TO ASSIGN THE THE MENU, AN DMX ADDRESS AND ARROW SHOULD PRESS TO CONFIRM APPEAR 11.3 DIMMER RESOLUTION (8/16b) The dimming resolution can be controlled at 8 bits from one DMX channel to 16 bits with 2 DMX channels. Factory setting is 8 Bit. 6 Luci della Ribalta srl, Via Berna 14, 46042 Castel Goffredo (MN) Italy Tel. +39 0376 771 777 – fax +39 0376 772 140 – email info@ldr.it – web www.ldr.it ... -
Page 8: Lost Dmx Signal
OFF 11.7 DIMMING CURVE (Curves) This function allows to select a response curve for the Arpa LED. A choice of two curves is available: Square and Linear. Factoring setting is SQUARE. PRESS TO ACTIVATE 7 Curves 7 Curves SQUARE TO INCREASE THE MENU, AN VOLTAGE RESPONSE AT SQUARE SQUARE ARROW SHOULD LOWER VALUE APPEAR 7 Curves LINEAR DIMMING LINEAR CONTROL 11.8 CUT OFF DIMMING RESPONSE (CutOff) This function allows to select the LED behaviour simulating a tungsten or halogen lamp during the dimming cut off. 7 Luci della Ribalta srl, Via Berna 14, 46042 Castel Goffredo (MN) Italy Tel. +39 0376 771 777 – fax +39 0376 772 140 – email info@ldr.it – web www.ldr.it ... -
Page 9: Dimming Behaviour
STEADY 11.11 LCD SCREEN ILLUMINATION (BackL) This function allows to turn off the LCD backlight, the LED POWER and LED DMX after 1’30” from last setting. Factory setting is AutoOFF. PRESS TO ACTIVATE 11 BackL 11 BackL LCD BACKLIGHT OFF THE MENU, AN AFTER 1 MINUTE AND AutoOFF AutoOFF ARROW SHOULD 30 SECONDS APPEAR 11 BackL LCD BACKLIGHT ALWAYS ON 8 Luci della Ribalta srl, Via Berna 14, 46042 Castel Goffredo (MN) Italy Tel. +39 0376 771 777 – fax +39 0376 772 140 – email info@ldr.it – web www.ldr.it ... -
Page 10: Red Colour Intensity
##°C ARROW SHOULD ##°C ###°F CONFIRM APPEAR 11.17 SOFTWARE VERSION (SwVer) This function allows to visualize the software version. There are also four different hidden menus which allow to select the advanced settings of the ARPA LED. To activate this function turn OFF and ON the Arpa by pressing the rotary switch at power on. 11.18‐A PRO or BASIC CONTROL (ProBasic) The PRO‐BASIC control is a special function which allows to limit the access to the control menu. Select ProBasic with the rotary switch and press to access the menu. Select: PRO, to enable access to all the functions BASIC, to limit access to functions 11.1 DMX or MANUAL MODE, 11.2 DMX ADDRESS, 11.12 Temperature Control and 11.13 Software version. Factory setting is PRO. PRESS TO ACTIVATE Choose MenuType MenuType TURN TO SELECT PRO THE MENU, AN OR BASIC MENU AND ProBasic BASIC ARROW SHOULD PRESS TO CONFIRM APPEAR 9 Luci della Ribalta srl, Via Berna 14, 46042 Castel Goffredo (MN) Italy Tel. +39 0376 771 777 – fax +39 0376 772 140 – email info@ldr.it – web www.ldr.it ... -
Page 11: B Factory Settings
VALUE AND PRESS TO #### #### CONFIRM TURN TO ASSIGN Min White Min White THE CALIBRATION VALUE AND PRESS TO #### #### CONFIRM 11.22‐E EXIT HIDDEN MENU (Exit) It allows to exit from hidden menus. 12. SOFTWARE UPGRADE – REMOTO control device Software upgrades are available for download from the reserved area of our website (password requested). An accessory gateway REMOTO, ‐ GATEWAY FULL LINE DISPLAY REMOTER DMX512A‐ ARTNET (part # 20107072) Allows to upload the desired software version on your Arpa. Please contact your local distributor for more detailed information. 10 Luci della Ribalta srl, Via Berna 14, 46042 Castel Goffredo (MN) Italy Tel. +39 0376 771 777 – fax +39 0376 772 140 – email info@ldr.it – web www.ldr.it ... -
Page 12: Cleaning And Maintenance
Arpa F/PC 150W RGBW LED User’s Manual – 2.0 13. CLEANING AND MAINTENANCE To ensure maximum performance of the product, a regular maintenance service should be carried out. Please make sure the product is cold and disconnected from power supply when doing this. Clean all reflective parts such as lenses opening the product, if necessary. check and replace any visibly damaged component. clean air ducts and fans in order to allow proper ventilation activity on the product. check internal and external wiring and replace any cable which should be damaged by heat or mechanical agents. 14. SPARE PARTS All components are available as spare parts. We strongly recommend you always use original LDR components as spare parts. Please refer to our technical assistance should you need to order and/or replace any part of the unit. 15. WARRANTY Our warranty covers all structural and manufacturing defects for a period of one year from the date of purchase. In case of complaint, we strongly recommend that in the first instance you contact the local dealer who supplied the product to you. In all cases, please refer to the serial number located at the rear of the spotlight. 16. SUMMARY OF CONTROLS AND FUNCTIONS # Function Description Available Options Factory Setting MANUAL (controlled from the 1 ... - Page 13 Factory RESET Return to factory settings ‐‐‐ Sets the ID number to activate From 000 (no remote control) to C ID Rem the Remoto control for upload 000 250 and download firmware Red: from 000 to 9999 ‐‐‐ Green: from 000 to 9999 ‐‐‐ Sets the minimum output level D Set Min of each colour Blue: from 000 to 9999 ‐‐‐ White: from 000 to 9999 ‐‐‐ E Exit Exits from hidden menus ‐‐‐ 12 Luci della Ribalta srl, Via Berna 14, 46042 Castel Goffredo (MN) Italy Tel. +39 0376 771 777 – fax +39 0376 772 140 – email info@ldr.it – web www.ldr.it ...
-
Page 14: Dmx Charts
‐ 255 0% ‐ 100% from 0 to 100% Proportional setting of the white colour 6 White Proportional 0 ‐ 255 0% ‐ 100% from 0 to 100% Arpa RGBW Chart name: DMX512 Functions chart 2 (16 bits) Issue: 1.0 Date: May 2018 Luminaire: 13 Luci della Ribalta srl, Via Berna 14, 46042 Castel Goffredo (MN) Italy Tel. +39 0376 771 777 – fax +39 0376 772 140 – email info@ldr.it – web www.ldr.it ... -
Page 15: Dmx Chart 3
Step Closed 221 ‐ 255 87% ‐ 100% Arpa RGBW Chart name: DMX512 Functions chart 3 (Strobe) Issue: 1.0 Date: May 2018 Luminaire: 14 Luci della Ribalta srl, Via Berna 14, 46042 Castel Goffredo (MN) Italy Tel. +39 0376 771 777 – fax +39 0376 772 140 – email info@ldr.it – web www.ldr.it ... -
Page 16: Dmx Chart 4
161 ‐ 180 64% ‐ 71% Step Strobe speed 9 181 ‐ 200 72% ‐ 78% Step Strobe speed 10 (maximum frequency) 201 ‐ 220 79% ‐ 86% Step Closed 221 ‐ 255 87% ‐ 100% Chart name: DMX512 Functions chart 4 (16 bits + Arpa RGBW Issue: 1.0 Date: 2018 Luminaire: Strobe) Luci della Ribalta srl reserves the right to modify the present document without prior notice. 15 Luci della Ribalta srl, Via Berna 14, 46042 Castel Goffredo (MN) Italy Tel. +39 0376 771 777 – fax +39 0376 772 140 – email info@ldr.it – web www.ldr.it ... - Page 17 P .iva 01815640204 c.iso IT01815640204 Luci della Ribalta srl, Via Berna 14, 46042 Castel Goffredo MN Italy - tel +39 0376 771777 - web www.ldr.it - email info@ldr.it IT/015/MN/11 VAT registration # It01815640204 - REA MN 198438 - Authorized Exporter #...
- Page 18 Reklamationsformular ‐ formulaire de réclamation ‐ hoja de reclamaciones email: info@ldr.it Azienda ed Indirizzo ‐ Company's name and address ‐ Firmenname und Addresse ‐ Nom et adresse ‐ Nombre y direcciòn _______________________________________________________________________________________________________ _______________________________________________________________________________________________________ Nome del rivenditore da cui il prodotto è stato acquistato ‐ Name of the dealer where you have purchased the product ‐ Namen der Firma, die Ihnen das Produkt verkauft hat ‐ Nom de la société qui vous a vendu ce produit ‐ Nombre de la compañia donde han comprado el producto: ____________________________________________________________________________________________________ 01151200 Arpa F150 CM, 180W LED Prodotto difettoso 01152200 Arpa PC150 CM, 180W LED Faulty product RGBW, 100/260V Defekte s Produkt DMX512 + RDM Produit défectueux Producto defectuoso Descrizione del problema /Problem found/Beschreibung des Defekts/Description du défaut/Descripciòn del problema ________________________________________________________________________________________________________ ________________________________________________________________________________________________________ ________________________________________________________________________________________________________ ________________________________________________________________________________________________________ Data d'acquisto ‐ Date of purchase ‐ Kaufdatum ‐ Date de l'achat ‐ Fecha de compra ________________________ Si prega di allegare prova d'acquisto ‐ Please attach copy of purchase invoice ‐ Bitte Kaufnachweis beilegen ‐ Veuillez joindre une quittance d'achat ‐ Les rogamos incluyan lcopia de la factura de compra. Nome e qualifica ‐ Name and position ‐ Name und Funktion ‐ Nom et fonction ‐ Nombre y cargo ____________________________________________________________________ Data ‐ Date ‐ Datum ‐ Date ‐ Fecha _____________________________...
- Page 19 local de escoamento de residuos, ou a loja na qual efectuou a compra. Richtlinie 2002/96/EU (Elektro- und Elektronik- Altgeräte - WEEE): Benutzerinformationen. Dieses Produkt entspricht Richtlinie WEEE-symbolet (Waste Electrical 2002/96/EU. Das Symbol des auf dem Gerät Electronic Equipment). dargestellten, durchgestrichenen Korbes gibt an, dass Bruken av WEEE-symbolet indikerer at dette Produkt Ende...
- Page 20 Luci della Ribalta srl, Via Berna 14, 46042 Castel Goffredo mn Italy. tel +39 0376 771 777 ‐ fax +39 0376 772 140 ‐ email info@ldr.it...
