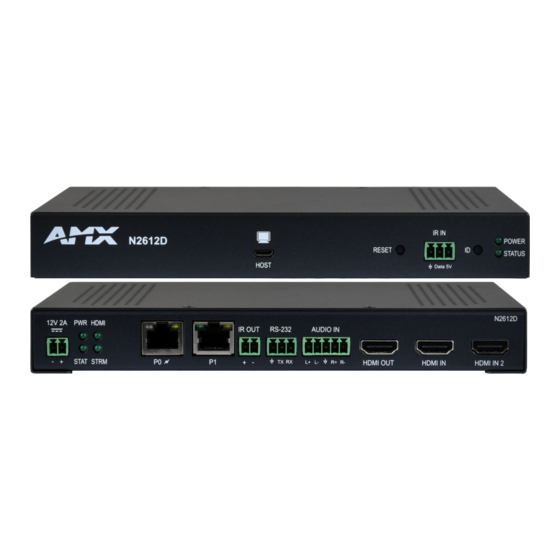

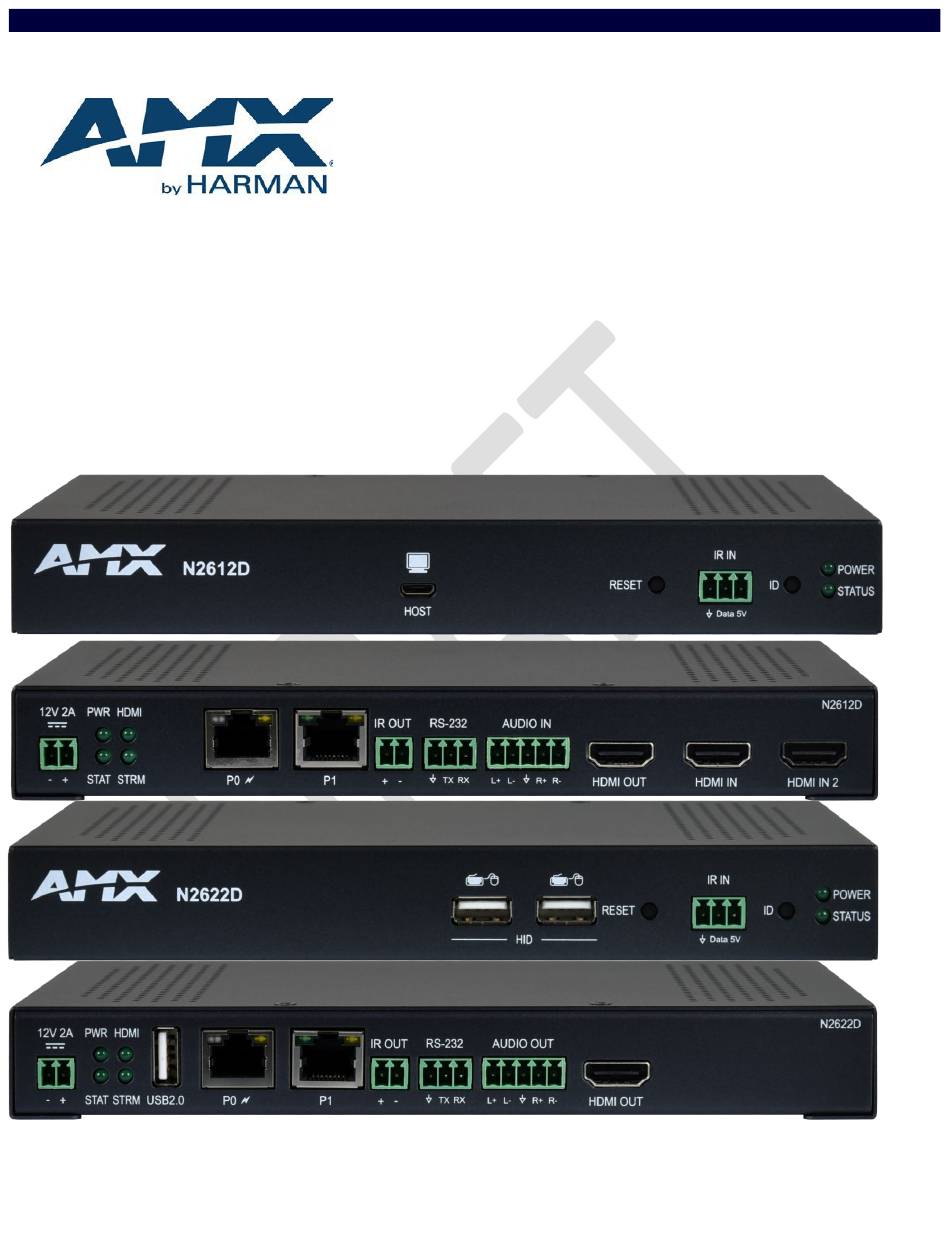

- Page 1 INSTRUCTION MANUAL N2600S SERIES NMX-ENC-N2612S ENCODER / NMX-DEC-N2622S DECODER NMX-ENC-N2612S, NMX-ENC-N2612S-C NMX-ENC-N2622S...
- Page 2 IMPORTANT SAFETY INSTRUCTIONS READ these instructions. KEEP these instructions. HEED all warnings. FOLLOW all instructions. DO NOT use this apparatus near water. CLEAN ONLY with dry cloth. DO NOT block any ventilation openings. Install in accordance with the manufacturer's instructions. DO NOT install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat.
- Page 3 EU COMPLIANCE INFORMATION: Hereby, Harman Professional, Inc. declares that the equipment is in compliance with the following: European Union Low Voltage Directive 2014/35/EU; European Union EMC Directive 2014/30/EU; European Union Restriction of Hazardous Substances Recast (RoHS2) Directive 2011/65/EU and as amended by 2015/863.
- Page 4 Manufacturer Information: HARMAN Professional, Inc. Address: 8500 Balboa Blvd. Northridge, CA 91329 USA EU Regulatory Contact: Harman Professional Denmark ApS Olof Palmes Allé 44, 8200 Aarhus N, Denmark UK Regulatory Contact: Harman Professional Solutions 2 Westside, London Road, Apsley, Hemel Hempstead, HP3 9TD, UK...
-
Page 5: Table Of Contents
Table of Contents Introducing Your New N2600 Series Devices ................8 Product Overview............................... 8 Hardware Overview ..............................8 Installing and Configuring Your AV Equipment ................ 11 Installation Overview ..............................11 Mounting Options ..............................12 Surface and Wall Mounting............................12 Rack Mounting ..............................12 Step-by-Step Installation Instructions ..........................14 Step 1: Setting Up Your Host Computer ..........................14 Step 2: Connecting Decoders to the Network ........................16 Step 3: Connecting Encoders to the Network and Configuring Stream Settings.................17... - Page 6 Video/Audio Page ..............................39 Stream Video Section – MWC Stream – Video Section.........................40 Current Source Section – MWC Stream – Video Section .......................41 Stream Video Section – H.26x Stream - Video section ........................42 Profile Configuration Section – H.26x Stream - Video section......................43 General Section –...
- Page 7 Date/Time ................................85 802.1x ..................................86 Video/Audio Page ..............................87 Stream Video Section – MWC/H.26x Stream Section – Video Section ....................88 Current Source Section – MWC/H.26x Stream Section – Video Section....................89 General Section – HDMI Out Section – Video Section .........................90 CEC Settings Section – HDMI Out Section – Video Section ......................91 Current Source Section –...
-
Page 8: Introducing Your New N2600 Series Devices
Introducing Your New N2600 Series Devices Introducing Your New N2600 Series Devices Product Overview The N2600 AV over IP Series belongs to the N-Series product family from AMX and consists of N2612S Encoders, N2622S Decoders, N2615 Wallplate Encoders and N2625 Wallplate Decoders. This series provides a flexible, feature-rich, and simple-to- deploy digital media distribution and switching solution that can be used in 4K applications with resolutions up to 4096x2160, with support for HDCP 2.2. - Page 9 Introducing Your New N2600 Series Devices 1) USB Standard-A Ports 4) Device ID Discovery Button 2) Device Reset Button 5) Power/Status Indicators 3) IR Emitter Input Connection FIG. 3 N2622S Decoder Front Panel 1) 12VDC Input (not needed with PoE) 6) IR Emitter Output Connection 2) Status Indicators 7) RS232 Connection...
- Page 10 Introducing Your New N2600 Series Devices Front and Rear Panel Descriptions Front Panel USB Micro-B port For KVM/USB 2.0 support. Connects the Encoder to the computer to be controlled. USB Standard-A port (x2) For KVM support. Connects the Decoder to keyboard and/or mouse. RESET button Recessed pushbutton.
-
Page 11: Installing And Configuring Your Av Equipment
Installing and Configuring Your AV Equipment Installing and Configuring Your AV Equipment This chapter provides an installation overview as well as a detailed step-by-step process for installation. If you encounter any problems, refer to the Troubleshooting section on page 89 for help. -
Page 12: Mounting Options
Installing and Configuring Your AV Equipment Mounting Options The N2600 units are available in stand-alone and card versions. The stand-alone version can be free standing, surface mounted, wall mounted, or rack mounted. All cards must be rack mounted using the N9206 Card Cage (sold separately). Surface and Wall Mounting To mount your N2600 stand-alone unit to a flat surface or wall, follow these steps: Remove the four screws from the bottom of the unit and use them to attach the mounting wings (not included in shipment -... - Page 13 Installing and Configuring Your AV Equipment FIG. 7 Rack Mounting Cards Align the thumb screw on back plate before seating card into cage. Firmly seat the card and tighten the thumb screw by hand to secure card placement. Use one of the six Phoenix connector cables (included in shipment with the Encoder/Decoder Card) to connect the card’s 12VDC input Phoenix connector to one of the cage’s six 12VDC outputs.
-
Page 14: Step-By-Step Installation Instructions
Installing and Configuring Your AV Equipment Step-by-Step Installation Instructions This section provides step-by-step guidance for installing and configuring equipment from the N-Series product family on your network. The steps provided here assume the following to be true: There are switches operational on the network. N-Series equipment can operate on many different brands of networking equipment. - Page 15 Installing and Configuring Your AV Equipment Scroll down in the list to the Internet Protocol Version 4 option. Highlight it and click the Properties button. N2612S/N2622S Manual...
-
Page 16: Step 2: Connecting Decoders To The Network
Installing and Configuring Your AV Equipment address option and enter the static IP address provided to you by your network administrator. NOTE: If the computer does not need Internet access, you can simply enter a unique 169.254.xxx.xxx IP address with a 255.255.0.0 subnet mask. -
Page 17: Step 3: Connecting Encoders To The Network And Configuring Stream Settings
Installing and Configuring Your AV Equipment Once the Decoders and displays are connected and powered up, the LocalPlay screen appears on the displays. NOTE: If the LocalPlay screen does not appear, refer to the chapter Troubleshooting on page 89 for more guidance. NOTE: In order for the unit to receive PoE, it must be connected to a switch or other equipment that has a PoE PSE (Power Sourcing Equipment) port. - Page 18 Installing and Configuring Your AV Equipment Encoders listed along the top Decoders listed along the bottom FIG. 11 Video Matrix Page Double-click the Encoder’s name in the list. The Login page is displayed (see Figure 12). If prompted, use the following default login credentials to log in for the first time.
-
Page 19: Step 4: Configuring Decoder And Encoder Ip Addresses (If Needed)
Installing and Configuring Your AV Equipment FIG. 13 Changing Stream Setting Repeat these steps until all Encoders are connected to the network and configured with an appropriate Stream number. NOTE: Each Encoder’s Stream number must be unique to all other Encoders on the network. NOTE: Screen-by-screen descriptions of the web interface options are provided for your reference in the Encoder Configuration Options section on page 23... -
Page 20: Option 2: Assigning Ip Addresses To Multiple Units (Using Csv Files)
Installing and Configuring Your AV Equipment FIG. 14 MWC IP Setup of the Network settings Click the Save button. Return to the Settings page through the newly configured IP address. NOTE: If you lose communication for any reason, unplug the N2600, wait one minute, and plug it back in. This restores the unit to the original IP address. -
Page 21: Step 5: Connecting Encoders To An Input Source
Installing and Configuring Your AV Equipment Step 5: Connecting Encoders to an Input Source Having already connected the Encoder(s) to the network and made the appropriate settings changes (as described in Step 3 Step 4), you can now connect to the appropriate AV source(s). This connection from an Encoder HDMI IN port to an input source is accomplished using either an HDMI cable or DVI-I (through adapter). -
Page 22: Switching And Scaling Options
Installing and Configuring Your AV Equipment Switching and Scaling Options N-Series Encoders and Decoders make up a true AV matrix solution. In other words, one input can go to any or all outputs. Decoders have internal scaling capabilities. Keep the following in mind: The input of an Encoder is the video and/or audio signal going into the Encoder. -
Page 23: Control Options
Installing and Configuring Your AV Equipment Control Options For the most part, once the initial setup is complete, you will be primarily managing/configuring the Decoders. To better understand, think of Encoders as radio stations and Decoders as car radios. The Encoders are supplying the streams and, using the Decoders, you can “tune in”... -
Page 24: Encoder Configuration Options
Encoder Configuration Options Encoder Configuration Options This chapter defines N2612S Encoder configuration options. For ease of navigation, it is organized to reflect the graphical user interface (GUI). From any main page in the GUI, you can access all other main pages by clicking the links in the top navigation bar. Figure 17 shows the navigation bar and provides hot links to the sections of this chapter which describe each main page. -
Page 25: Home Page
Encoder Configuration Options Home Page Click the Home link at the top of any of the main web pages to access the page shown in Figure 18. This page is divided into several sections and has links to other dialog boxes for additional configuration options. Refer to the following sections for detailed descriptions: Stream Setup Settings Section on page 26 ... -
Page 26: Stream Setup Section
Encoder Configuration Options Stream Setup Section The Stream Setup section of the Home page is shown in Figure 19. Options are described in Table FIG. 19 Device Settings Section TABLE 1 Home Page: Stream Settings Section Option Description Notes Enable Encoder When enabled will allow the encoder to transmit multicast video through the network. -
Page 27: Management Setup Settings
Encoder Configuration Options Management Setup Settings The Management Setup section of the Home page is shown in Figure 20. Options are described in Table FIG. 20 Management Setup Settings TABLE 2 Home Page: Management Setup Settings Option Description Notes Settings Lock Enable to lock the Encoder IP settings and stream number, preventing automated processes (from N-Able or N-Command) from occurring. -
Page 28: Current Source Section
Encoder Configuration Options Current Source Section The Current Source section of the Home page is shown in Figure 21. Options are described in Table FIG. 21 Current Source Section TABLE 3 Home Page: Current Source Section Option Description Notes When enabled the current source will be shown in the below Preview Image The preview image is updated approximately image preview area. -
Page 29: General Setup Section
Encoder Configuration Options General Setup Section The General Setup section of the Home page is shown in Figure 22. Options are described in Table FIG. 22 General Setup Section TABLE 4 Home Page: General Setup Section Option Description Notes Enable Send Status Enables the encoder to send a periodic status packet to the Send Status Address listed. -
Page 30: Network Page
Encoder Configuration Options Network Page Click the Network link at the top of any of the main web pages to access the page shown in Figure 23. This page is divided into several sections and has links to other dialog boxes for additional configuration options. Refer to the following sections for detailed descriptions: MWC IP Setup Settings Section on page 31 ... -
Page 31: General Section - Mwc Ip Setup
Encoder Configuration Options General Section – MWC IP Setup The General Section of the MWC IP Setup on the Network page is shown in Figure 21. Options are described in Table FIG. 24 General Section TABLE 5 Network Page: General Section of MWC IP Setup Option Description Notes... -
Page 32: Ipv4 Section -Mwc Ip Setup
Encoder Configuration Options IPv4 Section –MWC IP Setup The IPv4 section of the MWC IP Setup on the Network page is shown in Figure 24. Options are described in Table FIG. 25 IPv4 Section TABLE 6 Network Page: IPv4 Section of IP Setup Option Description Notes... -
Page 33: Ipv6 Section -Mwc Ip Setup
Encoder Configuration Options IPv6 Section –MWC IP Setup The IPv6 section of the MWC IP Setup on the Network page is shown in Figure 25. Options are described in Table FIG. 26 IPv6 Section TABLE 7 Network Page: IPv6 Section of IP Setup Option Description Notes... -
Page 34: General Section - H.26X Ip Setup
Encoder Configuration Options General Section – H.26x IP Setup The General Section of the H.26x IP Setup on the Network page is shown in Figure 21. Options are described in Table FIG. 27 General Section TABLE 8 Network Page: General Section of H.26x IP Setup Option Description Notes... -
Page 35: Ipv4 Section -H.26X Ip Setup
Encoder Configuration Options IPv4 Section –H.26x IP Setup The IPv4 section of the H.26x IP Setup on the Network page is shown in Figure 24. Options are described in Table FIG. 28 IPv4 Section TABLE 9 Network Page: IPv4 Section of IP Setup Option Description Notes... -
Page 36: Vlan Setup
Encoder Configuration Options VLAN Setup The VLAN Setup section of the Network page is shown in Figure 26. Options are described in Table FIG. 29 VLAN Setup Section TABLE 10 Network Page: Date/Time Option Notes Video VLAN Tagging Options to allow or disallow multicast on the selected port If multicast is disallowed then no video Allow Multicast will be present on that port. -
Page 37: Date/Time
Encoder Configuration Options Date/Time The Date/Time section of the Network page is shown in Figure 26. Options are described in Table FIG. 30 Date/Time Section TABLE 11 Network Page: Date/Time Option Description Notes Displays the current date and time of the unit. Current Date and Time Used to select the offset for the NTPP time. - Page 38 Encoder Configuration Options 802.1x The 802.1x section of the Network page is shown in Figure 27. Options are described in Table FIG. 31 802.1x Section TABLE 12 Network Page: 802.1x Option Description Notes When enabled will allow the device to be used with 802.1x IEEE 802.1x network configurations.
-
Page 39: Video/Audio Page
Encoder Configuration Options Video/Audio Page Click the Video/Audio link at the top of any of the main web pages to access the page shown in Figure 32. This page is divided into several sections and has links to other dialog boxes for additional configuration options. Refer to the following sections for detailed descriptions: Video Settings on page 40 ... -
Page 40: Stream Video Section - Mwc Stream - Video Section
Encoder Configuration Options Stream Video Section – MWC Stream – Video Section The Stream Video section of the MWC Stream section of the Video section on the Video/Audio page is shown in Figure 29. Options are described in Table FIG. 33 Stream Video Section TABLE 13 Video/Audio: HDMI Video section of the Video tab... -
Page 41: Current Source Section - Mwc Stream - Video Section
Encoder Configuration Options Current Source Section – MWC Stream – Video Section The Current Source section of the MWC Stream section of the Video section on the Video/Audio page is shown in Figure 30. Options are described in Table FIG. 34 Current Source Section TABLE 14 Video/Audio: Current Source section of the Video tab... -
Page 42: Stream Video Section - H.26X Stream - Video Section
Encoder Configuration Options Stream Video Section – H.26x Stream - Video section The Stream Video section of the H.26x Stream section of the Video section on the Video/Audio page is shown in Figure 31. Options are described in Table FIG. 35 Stream Video Section TABLE 15 Video/Audio: Stream Video section of the H.26x section of the Video tab... -
Page 43: Profile Configuration Section - H.26X Stream - Video Section
Encoder Configuration Options Profile Configuration Section – H.26x Stream - Video section The Profile Configuration section of the H.26x Stream section of the Video section on the Video/Audio page is shown in Figure Options are described in Table FIG. 36 Profile Configuration Section TABLE 16 Video/Audio: Profile Configuration section of the H.26x section of the Video tab... -
Page 44: General Section - Hdmi Pass-Thru - Video Section
Encoder Configuration Options General Section – HDMI Pass-thru - Video section The General section of the HDMI Pass-thru section of the Video section on the Video/Audio page is shown in Figure 31. Options are described in Table FIG. 37 General Section TABLE 17 Video/Audio: General section of the HDMI Pass-thru section of the Video tab Option... -
Page 45: Current Source Section - Hdmi Pass-Thru - Video Section
Encoder Configuration Options Current Source Section – HDMI Pass-thru - Video section The Current Source section of the HDMI Pass-thru section of the Video section on the Video/Audio page is shown in Figure 31. Options are described in Table FIG. 38 Current Source Section TABLE 18 Video/Audio: Current Source section of the HDMI Pass-thru section of the Video tab... -
Page 46: Status Section - Hdmi Pass-Thru - Video Section
Encoder Configuration Options Status Section – HDMI Pass-thru - Video section The Status section of the HDMI Pass-thru section of the Video section on the Video/Audio page is shown in Figure 31. Options are described Table FIG. 39 Status Section TABLE 19 Video/Audio: Status section of the HDMI Pass-thru section of the Video tab Option... -
Page 47: General Section - Hdmi In 1 - Video Section
Encoder Configuration Options General Section – HDMI In 1 - Video section The General section of the HDMI In 1 section of the Video section on the Video/Audio page is shown in Figure 31. Options are described in Table FIG. 40 General Section TABLE 20 Video/Audio: General section of the HDMI In 1 section of the Video tab... -
Page 48: Status Section - Hdmi In 1 - Video Section
Encoder Configuration Options Status Section – HDMI In 1 - Video section The Status section of the HDMI In 1 section of the Video section on the Video/Audio page is shown in Figure 31. Options are described in Table FIG. 41 Status Section TABLE 21 Video/Audio: Status section of the HDMI In 1 section of the Video tab... -
Page 49: General Section - Hdmi In 2 - Video Section
Encoder Configuration Options General Section – HDMI In 2 - Video section The General section of the HDMI In 2 section of the Video section on the Video/Audio page is shown in Figure 31. Options are described in Table FIG. 42 General Section TABLE 22 Video/Audio: General section of the HDMI In 2 section of the Video tab... -
Page 50: Status Section - Hdmi In 2 - Video Section
Encoder Configuration Options Status Section – HDMI In 2 - Video section The Status section of the HDMI In 2 section of the Video section on the Video/Audio page is shown in Figure 31. Options are described in Table FIG. 43 Status Section TABLE 23 Video/Audio: Status section of the HDMI In 2 section of the Video tab... -
Page 51: Audio Settings Section - Audio Setup
Encoder Configuration Options Audio Settings Section – Audio Setup The Audio Settings section of the Audio on the Video/Audio page is shown in Figure 32. Options are described in Table FIG. 44 Audio Section TABLE 24 Network Page: Audio Section of Audio Setup Option Description Notes... -
Page 52: Edid Section - Edid Setup
Encoder Configuration Options EDID Section – EDID Setup The EDID section of the EDID on the Video/Audio page is shown in Figure 33. Options are described in Table FIG. 45 EDID Section TABLE 25 Network Page: Audio Section of Audio Setup Option Description Notes... -
Page 53: Security Page
Encoder Configuration Options Security Page Click the Security link at the top of any of the main web pages to access the page shown in Figure 46. This page is divided into several sections and has links to other dialog boxes for additional configuration options. Refer to the following sections for detailed descriptions: General Settings Section on page 54 ... -
Page 54: Web Page Section - General Setup
Encoder Configuration Options Web Page Section – General Setup The Web Page section of the General on the Security page is shown in Figure 35. Options are described in Table FIG. 47 Web Page Section TABLE 26 Security Page: Web Page Section of General Option Description Notes... -
Page 55: Security Certificates Section - General Setup
Encoder Configuration Options Security Certificates Section – General Setup The Security Certificates section of the General on the Security page is shown in Figure 36. Options are described in Table FIG. 48 Security Certificates Section TABLE 27 Security Page: Security Certificates Section of General Option Description Notes... -
Page 56: User Security Details Section - Users Setup
Encoder Configuration Options User Security Details Section – Users Setup The Security Certificates section of the Users on the Security page is shown in Figure 37. Options are described in Table FIG. 49 User Security Details Section TABLE 28 Security Page: User Security Details Section of Users Option Description... -
Page 57: Ldap Section - Ldap Setup
Encoder Configuration Options LDAP Section – LDAP Setup The LDAP section of the LDAP on the Security page is shown in Figure 38. Options are described in Table FIG. 50 LDAP Section TABLE 29 Security Page: LDAP Section of LDAP Option Description Notes... -
Page 58: Control Page
Decoder Configuration Options Control Page Click the Control link at the top of any of the main web pages to access the page shown in Figure 39. This page is divided into several sections and has links to other dialog boxes for additional configuration options. Refer to the following sections for detailed descriptions: Serial Settings on page 59 ... -
Page 59: Serial Commands - Serial Setup
Decoder Configuration Options Serial Commands – Serial Setup The Serial Commands section of the Serial on the Control page is shown in Figure 72. Options are described in Table FIG. 52 Serial Commands Section TABLE 30 Control Page: Serial Commands Section of Serial Option Description Notes... -
Page 60: Rs232 Settings - Serial Setup
Decoder Configuration Options RS232 Settings – Serial Setup The RS232 Settings section of the Serial on the Control page is shown in Figure 73. Options are described in Table FIG. 53 RS232 Settings Section TABLE 31 Control Page: RS232 Settings Section of Serial Option Description Notes... -
Page 61: Serial Settings - Serial Setup
Decoder Configuration Options Serial Settings – Serial Setup The Serial Settings section of the Serial on the Control page is shown in Figure 74. Options are described in Table FIG. 54 Serial Settings Section TABLE 32 Control Page: Serial Settings Section of Serial Option Description Notes... -
Page 62: Ir Command - Ir Setup
Decoder Configuration Options IR Command – IR Setup The IR Command section of the IR on the Control page is shown in Figure 75. Options are described in Table FIG. 55 IR Command Section TABLE 33 Control Page: IR Command Section of IR Option Description Notes... -
Page 63: Ir Passthrough Settings - Ir Setup
Decoder Configuration Options IR Passthrough Settings – IR Setup The IR Passthrough Settings section of the IR on the Control page is shown in Figure 76. Options are described in Table FIG. 56 IR Passthrough Settings Section TABLE 34 Control Page: IR Passthrough Section of IR Option Description... -
Page 64: Kvm/Usb 2.0 Connection - Kvm/Usb 2.0
Decoder Configuration Options KVM/USB 2.0 Connection – KVM/USB 2.0 The KVM/USB 2.0 Settings section of the KVM/USB 2.0 on the Control page is shown in Figure 40. Options are described in Table FIG. 57 KVM/ USB 2.0 Settings Section TABLE 35 Control Page: KVM/USB 2.0 Settings Section of USB Option Description... -
Page 65: System Page
Decoder Configuration Options System Page Click the System link at the top of any of the main web pages to access the page shown in Figure 41 This page is divided into several sections and has links to other dialog boxes for additional configuration options. Refer to the following sections for detailed descriptions: Logs Section on page 66 ... -
Page 66: Command Log - Log
Decoder Configuration Options Command Log – Log The Command Log section of the Log on the System page is shown in Figure 42. Options are described in Table FIG. 59 Command Log Section TABLE 36 System Page: Command Log Section of Log Option Description Notes... -
Page 67: Debug Log - Log
Decoder Configuration Options Debug Log – Log The Debug Log section of the Log on the System page is shown in Figure 43. Options are described in Table FIG. 60 Debug Log Section TABLE 37 System Page: Debug Log Section of Log Option Description Notes... -
Page 68: Link Layer Discovery Protocol (Lldp) - Status
Decoder Configuration Options Link Layer Discovery Protocol (LLDP) – Status The LLDP section of the Status on the System page is shown in Figure 44. Options are described in Table FIG. 61 LLDP Section TABLE 38 System Page: LLDP Section of Status Option Description Notes... -
Page 69: Status - Status
Decoder Configuration Options Status – Status The Status section of the Status on the System page is shown in Figure 45. Options are described in Table FIG. 62 Status Section TABLE 39 System Page: Status Section of Status Option Description Notes HDMI Status Displays the status of the HDMI input as either Connected or... -
Page 70: Current Source - Status
Decoder Configuration Options Current Source – Status The Current Source section of the Status on the System page is shown in Figure 46. Options are described in Table FIG. 63 Current Source Section TABLE 40 System Page: Current Source of Status Option Description Notes... -
Page 71: Software - Status
Decoder Configuration Options Software – Status The Software section of the Status on the System page is shown in Figure 47. Options are described in Table FIG. 64 Current Source Section TABLE 41 System Page: Current Source of Status Option Description Notes Displays the model of the N2600 device. -
Page 72: Decoder Configuration Options
Decoder Configuration Options Decoder Configuration Options This chapter defines N2622S Decoder configuration options. For ease of navigation, it is organized to reflect the graphical user interface (GUI). As explained previously in the Encoder Configuration Options section on page 24, you can access the GUI main pages by clicking the links in the top navigation bar. -
Page 73: Home Page
Decoder Configuration Options Home Page Click the Home link at the top of any of the main web pages to access the page shown in Figure 65. This page is divided into several sections and has links to other dialog boxes for additional configuration options. Refer to the following sections for detailed descriptions: Stream Setup Settings Section on page 54 ... -
Page 74: Stream Setup Section
Decoder Configuration Options Stream Setup Section The Stream Setup section of the Home page is shown in Figure 66. Options are described in Table FIG. 66 Device Settings Section TABLE 42 Home Page: Stream Settings Section Option Description Notes Device Name Enter a user-friendly name for the unit. -
Page 75: Management Setup Settings
Decoder Configuration Options Management Setup Settings The Management Setup section of the Home page is shown in Figure 67. Options are described in Table FIG. 67 Management Setup Settings TABLE 43 Home Page: Management Setup Settings Option Description Notes Settings Lock Enable to lock the Decoder IP settings and stream number, preventing automated processes (from N-Able or N-Command) from occurring. -
Page 76: Current Source Section
Decoder Configuration Options Current Source Section The Current Source section of the Home page is shown in Figure 68. Options are described in Table FIG. 68 Current Source Section TABLE 44 Home Page: Current Source Section Option Description Notes When enabled the current source will be shown in the below The preview image is updated approximately Preview Image image preview area. -
Page 77: General Setup Section
Decoder Configuration Options General Setup Section The General Setup section of the Home page is shown in Figure 69. Options are described in Table FIG. 69 General Setup Section TABLE 45 Home Page: General Setup Section Option Description Notes IGMP Join on stream When enabled will send IGMP Join messages when no incoming stream is detected. -
Page 78: Network Page
Decoder Configuration Options Network Page Click the Network link at the top of any of the main web pages to access the page shown in Figure 70. This page is divided into several sections and has links to other dialog boxes for additional configuration options. Refer to the following sections for detailed descriptions: MWC IP Setup Settings Section on page 79 ... -
Page 79: General Section - Mwc Ip Setup
Decoder Configuration Options General Section – MWC IP Setup The General Section of the MWC IP Setup on the Network page is shown in Figure 71. Options are described in Table FIG. 71 General Section TABLE 46 Network Page: General Section of MWC IP Setup Option Description Notes... -
Page 80: Ipv4 Section - Mwc Ip Setup
Decoder Configuration Options IPv4 Section – MWC IP Setup The IPv4 section of the MWC IP Setup on the Network page is shown in Figure 72. Options are described in Table FIG. 72 IPv4 Section TABLE 47 Network Page: IPv4 Section of MWC IP Setup Option Description Notes... -
Page 81: Ipv6 Section - Mwc Ip Setup
Decoder Configuration Options IPv6 Section – MWC IP Setup The IPv6 section of the MWC IP Setup on the Network page is shown in Figure 73. Options are described in Table FIG. 73 IPv6 Section TABLE 48 Network Page: IPv6 Section of MWC IP Setup Option Description Notes... -
Page 82: General Section - H.26X Ip Setup
Decoder Configuration Options General Section – H.26x IP Setup The General Section of the H.26x IP Setup on the Network page is shown in Figure 74. Options are described in Table 49. FIG. 74 General Section TABLE 49 Network Page: General Section of H.26x IP Setup Option Description Notes... -
Page 83: Ipv4 Section -H.26X Ip Setup
Decoder Configuration Options IPv4 Section –H.26x IP Setup The IPv4 section of the H.26x IP Setup on the Network page is shown in Figure 75. Options are described in Table FIG. 75 IPv4 Section TABLE 50 Network Page: IPv4 Section of IP Setup Option Description Notes... -
Page 84: Vlan Setup
Decoder Configuration Options VLAN Setup The VLAN Setup section of the Network page is shown in Figure 76. Options are described in Table FIG. 76 VLAN Setup Section TABLE 51 Network Page: Date/Time Option Notes Video VLAN Tagging Options to allow or disallow multicast on the selected port If multicast is disallowed then no video Allow Multicast will be present on that port. -
Page 85: Date/Time
Decoder Configuration Options Date/Time The Date/Time section of the Network page is shown in Figure 79. Options are described in Table FIG. 79 Date/Time Section TABLE 52 Network Page: Date/Time Option Description Notes Used to select the NTP server connection Select Edit When selected will allow editing of that name server information. - Page 86 Decoder Configuration Options 802.1x The 802.1x section of the Network page is shown in Figure 80. Options are described in Table FIG. 80 802.1x Section TABLE 53 Network Page: 802.1x Option Description Notes When enabled will allow the device to be used with 802.1x IEEE 802.1x network configurations.
-
Page 87: Video/Audio Page
Decoder Configuration Options Video/Audio Page Click the Video/Audio link at the top of any of the main web pages to access the page shown in Figure 81. This page is divided into several sections and has links to other dialog boxes for additional configuration options. Refer to the following sections for detailed descriptions: Video Settings on page 88 ... -
Page 88: Stream Video Section - Mwc/H.26X Stream Section - Video Section
Decoder Configuration Options Stream Video Section – MWC/H.26x Stream Section – Video Section The Stream Video section of the MWC/H.26x Stream section of the Video section on the Video/Audio page is shown in Figure Options are described in Table FIG. 82 MWC Stream Video Section FIG. -
Page 89: Current Source Section - Mwc/H.26X Stream Section - Video Section
Decoder Configuration Options Current Source Section – MWC/H.26x Stream Section – Video Section The Current Source section of the MWC/H.26x Stream section of the Video section on the Video/Audio page is shown in Figure Options are described in Table FIG. 84 Current Source Section TABLE 55 Video/Audio: Current Source section of the MWC/H.26x Stream section of the Video tab... -
Page 90: General Section - Hdmi Out Section - Video Section
Decoder Configuration Options General Section – HDMI Out Section – Video Section The General section of the HDMI Out section of the Video section on the Video/Audio page is shown in Figure 85. Options are described in Table FIG. 85 General Section TABLE 56 Video/Audio: General section of the HDMI Out section of the Video tab... -
Page 91: Cec Settings Section - Hdmi Out Section - Video Section
Decoder Configuration Options CEC Settings Section – HDMI Out Section – Video Section The CEC Settings section of the HDMI Out section of the Video section on the Video/Audio page is shown in Figure 86. Options are described in Table FIG. -
Page 92: Current Source Section - Hdmi Out - Video Section
Decoder Configuration Options Current Source Section – HDMI Out - Video section The Current Source section of the HDMI Out section of the Video section on the Video/Audio page is shown in Figure 87. Options are described in Table FIG. 87 Current Source Section TABLE 58 Video/Audio: Current Source section of the Video tab... -
Page 93: Audio Section - Audio Setup
Decoder Configuration Options Audio Section – Audio Setup The Audio section of the Audio on the Video/Audio page is shown in Figure 88. Options are described in Table FIG. 88 Audio Section TABLE 59 Network Page: Audio Section of Audio Setup Option Description Notes... -
Page 94: Edid Section - Edid Setup
Decoder Configuration Options EDID Section – EDID Setup The EDID section of the EDID on the Video/Audio page is shown in Figure 89. Options are described in Table FIG. 89 EDID Section TABLE 60 Video Page: EDID Section of EDID Setup Option Description Notes... -
Page 95: Security Page
Decoder Configuration Options Security Page Click the Security link at the top of any of the main web pages to access the page shown in Figure 90. This page is divided into several sections and has links to other dialog boxes for additional configuration options. Refer to the following sections for detailed descriptions: General Settings Section on page 71 ... -
Page 96: Web Page Section - General Setup
Decoder Configuration Options Web Page Section – General Setup The Web Page section of the General on the Security page is shown in Figure 91. Options are described in Table FIG. 91 Web Page Section TABLE 61 Security Page: Web Page Section of General Option Description Notes... -
Page 97: Security Certificates Section - General Setup
Decoder Configuration Options Security Certificates Section – General Setup The Security Certificates section of the General on the Security page is shown in Figure 92. Options are described in Table FIG. 92 Security Certificates Section TABLE 62 Security Page: Security Certificates Section of General Option Description Notes... -
Page 98: User Security Details Section - Users Setup
Decoder Configuration Options User Security Details Section – Users Setup The Security Certificates section of the Users on the Security page is shown in Figure 93. Options are described in Table FIG. 93 User Security Details Section TABLE 63 Security Page: User Security Details Section of Users Option Description... -
Page 99: Ldap Section - Ldap Setup
Decoder Configuration Options LDAP Section – LDAP Setup The LDAP section of the LDAP on the Security page is shown in Figure 94. Options are described in Table FIG. 94 LDAP Section TABLE 64 Security Page: LDAP Section of LDAP Option Description Notes... -
Page 100: Control Page
Decoder Configuration Options Control Page Click the Control link at the top of any of the main web pages to access the page shown in Figure 95. This page is divided into several sections and has links to other dialog boxes for additional configuration options. Refer to the following sections for detailed descriptions: Serial Section on page 78 ... -
Page 101: Serial Commands - Serial Setup
Decoder Configuration Options Serial Commands – Serial Setup The Serial Commands section of the Serial on the Control page is shown in Figure 96. Options are described in Table FIG. 96 Serial Commands Section TABLE 65 Control Page: Serial Commands Section of Serial Option Description Notes... -
Page 102: Rs232 Settings - Serial Setup
Decoder Configuration Options RS232 Settings – Serial Setup The RS232 Settings section of the Serial on the Control page is shown in Figure 97. Options are described in Table FIG. 97 RS232 Settings Section TABLE 66 Control Page: RS232 Settings Section of Serial Option Description Notes... -
Page 103: Serial Settings - Serial Setup
Decoder Configuration Options Serial Settings – Serial Setup The Serial Settings section of the Serial on the Control page is shown in Figure 98. Options are described in Table FIG. 98 Serial Settings Section TABLE 67 Control Page: Serial Settings Section of Serial Option Description Notes... -
Page 104: Ir Command - Ir Setup
Decoder Configuration Options IR Command – IR Setup The IR Command section of the IR on the Control page is shown in Figure 99. Options are described in Table FIG. 99 IR Command Section TABLE 68 Control Page: IR Command Section of IR Option Description Notes... -
Page 105: Ir Passthrough Settings - Ir Setup
Decoder Configuration Options IR Passthrough Settings – IR Setup The IR Passthrough Settings section of the IR on the Control page is shown in Figure 100. Options are described in Table FIG. 100 IR Passthrough Settings Section TABLE 69 Control Page: IR Passthrough Section of IR Option Description... -
Page 106: Usb Setting - Kvm/Usb
Decoder Configuration Options USB Setting – KVM/USB The USB Settings section of the KVM/USB on the Control page is shown in Figure 101. Options are described in Table FIG. 101 USB Settings Section TABLE 70 Control Page: USB Settings Section of USB Option Description Notes... -
Page 107: System Page
Decoder Configuration Options System Page Click the System link at the top of any of the main web pages to access the page shown in Figure 102. This page is divided into several sections and has links to other dialog boxes for additional configuration options. Refer to the following sections for detailed descriptions: Logs Section on page 84 ... -
Page 108: Command Log - Log
Decoder Configuration Options Command Log – Log The Command Log section of the Log on the System page is shown in Figure 103. Options are described in Table FIG. 103 Command Log Section TABLE 71 System Page: Command Log Section of Log Option Description Notes... -
Page 109: Debug Log - Log
Decoder Configuration Options Debug Log – Log The Debug Log section of the Log on the System page is shown in Figure 104. Options are described in Table FIG. 104 Debug Log Section TABLE 72 System Page: Debug Log Section of Log Option Description Notes... -
Page 110: Link Layer Discovery Protocol (Lldp) - Status
Decoder Configuration Options Link Layer Discovery Protocol (LLDP) – Status The LLDP section of the Status on the System page is shown in Figure 105. Options are described in Table FIG. 105 LLDP Section TABLE 73 System Page: LLDP Section of Status Option Description Notes... -
Page 111: Status - Status
Decoder Configuration Options Status – Status The Status section of the Status on the System page is shown in Figure 106. Options are described in Table FIG. 106 Status Section TABLE 74 System Page: Status Section of Status Option Description Notes HDMI Out Status Select the output resolution of the video stream to be transmitted... -
Page 112: Current Source - Status
Decoder Configuration Options Current Source – Status The Current Source section of the Status on the System page is shown in Figure 107. Options are described in Table FIG. 107 Current Source Section TABLE 75 System Page: Current Source of Status Option Description Notes... -
Page 113: Software - Status
Decoder Configuration Options Software – Status The Software section of the Status on the System page is shown in Figure 108. Options are described in Table FIG. 108 Current Source Section TABLE 76 System Page: Current Source of Status Option Description Notes Displays the model of the N2600 device. -
Page 114: Troubleshooting
Troubleshooting Troubleshooting This chapter contains possible solutions to some common issues. Should you encounter any problems not covered by these guidelines, please contact technical support. You can also visit our support webpage at suppot.harmanpro.com Issues Suggestions LocalPlay screen displays instead of the •... -
Page 115: Series Default Local/Host Play Troubleshooting Screens
Troubleshooting Series Default Local/Host Play Troubleshooting Screens This section shows and defines the status screens displayed by N2600 Series devices. FIG. 109 Host Play Screen Displayed when Decoder..and Encoder..Notes • is set to view an Encoder stream on •... - Page 116 Troubleshooting FIG. 111 Unsupported Input Resolution Screen Displayed when Decoder..and Encoder..Notes • is set to view a encoder • is being fed a video resolution This screen can be useful to show you that the stream on the network that is does not support Decoder is receiving the stream from the intended Encoder.
- Page 117 FIG. 113 Video Encrypted Screen Displayed when Decoder..Notes • is receiving a stream from an encoder it cannot decrypt Make sure the decoder has the correct password for decrypting the stream. To reset the password, go to the security page on both the encoder and decoder and click the reset button.
-
Page 118: Appendix B: Minimum Network Requirements
Appendix B: Minimum Network Requirements The following list specifies the minimum network requirements that must be considered when deploying your N-Series equipment. These requirements cover the necessary protocols and features needed to drive N-Series streams. NOTE: Specific configuration recommendations are based off the Cisco Catalyst series, however this may vary. Managed Network Switch Gigabit Ethernet Internet Group Management Protocol (IGMP) Version 2... -
Page 119: Appendix C: Supported Resolutions
Appendix C: Supported Resolutions Resolution Refresh Rates YUV 4:4:4 YUV 4:2:2 YUV 4:2:0 Interlaced 4096x2160 (DCI) 4096x2160 4096x2160 4096x2160 4096x2160 4096x2160 4096x2160 3840x2160 (UHD) 3840x2160 3840x2160 3840x2160 3840x2160 3840x2160 3840x2160 3440x1440 (WQHD) 3440x1440 3440x1440 3440x1440 3440x1440 3440x1440 3440x1440 3840x1080 (DFHD) 3840x1080 3840x1080 3840x1080... - Page 120 Resolution Refresh Rates YUV 4:4:4 YUV 4:2:2 YUV 4:2:0 Interlaced 1360x768 1280x1024 1280x960 1280x800 1280x768 1280x720 (HD) 1280x720 1280x720 1024x768 N2612S/N2622S Manual...
- Page 121 © 2023 Harman. All rights reserved. SmartScale, NetLinx, Enova, AMX, AV FOR AN IT WORLD, and HARMAN, and their respective logos are registered trademarks of HARMAN. Oracle, Java and any other company or brand name referenced may be trademarks/registered trademarks of their respective companies.
