DriveRack 260 Quick Start Guide
PN: 5059584-A
© 2015 Harman. dbx Professional Products is a registered trademark of Harman. All rights reserved.
Quick Start Guide
WHAT'S IN THE BOX

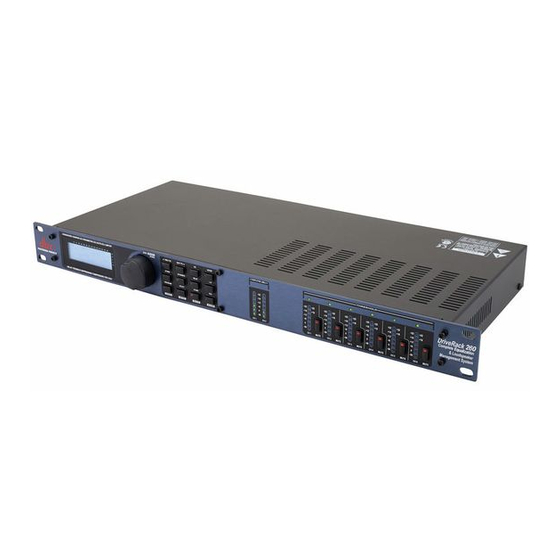

• DriveRack 260 Processor
• Power Cable
• Null Modem Cable
• Rack Mount Screw Kit
PRODUCT REGISTRATION
Register your product at http://dbxpro.com/en-US/
support/warranty_registration or scan the code to the
right with a QR scanner app on your mobile device.
DOWNLOAD THE OWNER'S MANUAL
Get the owner's manual at http://dbxpro.com/en-US/
products/driverack-260#documentation or scan the code
to the right with a QR scanner app on your mobile device.
1

Getting Started

Before making any audio connections, perform the following:
• Ensure power to your mixer, 260, and amplifier(s) are turned off.
• Turn the attenuators on all power amplifiers or powered speakers all the way down.
• Make the audio connections per your application (see the system diagrams inside this
quick start guide for reference).
• Power up the mixer, then the 260, then your amplifiers or powered speakers.
2

Run The Setup Wizard

The Setup Wizard will walk you through the configuration process. To run the Setup Wizard,
follow these steps:
A. Press and hold the WIZARD button for
2 seconds.
B. Select the "System Setup" Wizard option
by pressing the SELECT wheel.
C. Follow the on-screen instructions. Use
the NEXT PG and PREV PG buttons
to navigate the Wizard and the SELECT
wheel to make selections. Select the
"Custom" option for amplifier and/or
speaker models not listed in the System
Setup Wizard.
TIP: The "GEQ" option must be selected to use the Auto EQ Wizard and the "AFS"
option must be selected as one of the inserts to use the AFS Wizard.
NOTE: For information on manually configuring the 260 using Configuration mode,
see the "Manual Configuration" section inside this Quick Start Guide.
