Summary of Contents for Harman Lexicon MC-10

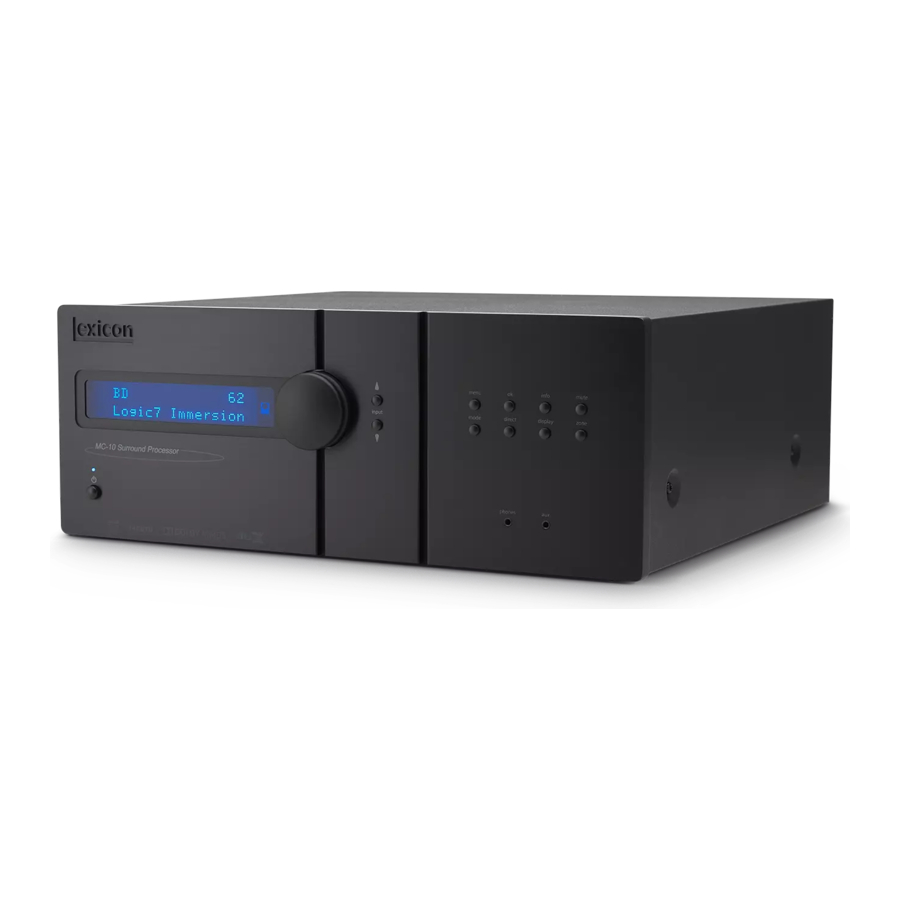

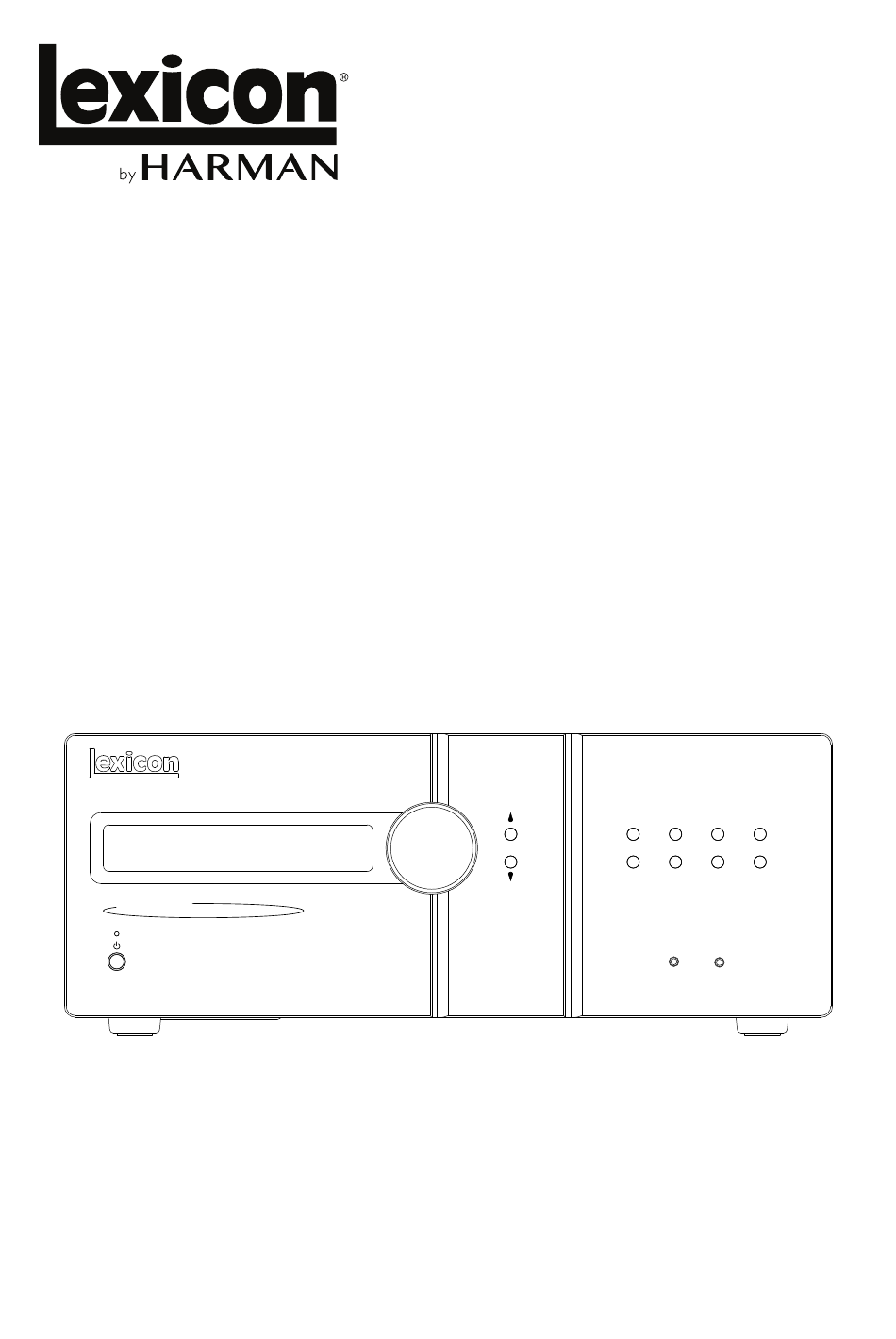

- Page 1 Custom Installation Notes: Serial programming interface and IR remote commands for Lexicon MC-10, RV-9, RV-6 menu info mute input mode direct display zone RV-9 Receiver phones...
-
Page 2: Table Of Contents
Contents Menu Command Specifications ......14 Request menu status (0x14) ..........14 Introduction ..............3 Request tuner preset (0x15)...........14 Set-up ................3 Tune (0x16) ...................14 Conventions ..............3 Request DAB station (0x18) ...........15 Prog. Type/Category (0x19) ...........15 Command and response formats ......3 DLS/PDT info. (0x1A) ..............15 Serial Cable Specification .........3 Request preset details (0x1B) ..........16 Data transfer format ..............3... -
Page 3: Introduction
Controlling via RS232/NET Introduction This document describes the remote control protocol for controlling via the RS232/NET interface. The AV implements virtual IR commands in order to simplify the protocol. Any operation that can be invoked using the IR remote control can be achieved over a control link using the Simulate RC5 IR command (0x08). -
Page 4: Amx Duet™ Support
Zone numbers The following zone numbers are defined: „ 0x01 – Zone number 1. (Zone 1 is the master zone. Commands that appear zone-less refer to the master zone) „ 0x02 – Zone number 2. Answer codes The following answer codes are defined: „... -
Page 5: System Command Specifications
System Command Specifications Power (0x00) COMMAND: Request the stand-by state of a zone. Byte: Description: 0x21 Example Zone number Command/response sequence to request the power state of zone 1 where 0x00 zone 1 has power on: 0x01 Command: 0x21 0x01 0x00 0x01 0xF0 0x0D Data 0xF0 –... -
Page 6: Fm Genre (0X03)
FM genre (0x03) COMMAND: Request information on the current station programme type from FM source Byte: Description: in a given zone. If FM is not selected on the given zone an error 0x85 is 0x21 returned. Zone number 0x03 Example 0x01 Command/response sequence to request the programme type on zone 1 where Data1... -
Page 7: Save/Restore Secure Copy Of Settings (0X06)
Save/Restore secure copy of settings (0x06) COMMAND: Force a restore of the secure copy of the settings. Note: If no secure copy has Byte: Description: been made, this command will return an answer code of 0x85. 0x21 If the system is currently doing a save and another save is requested. The 0x01 second save will fail silently. -
Page 8: Display Information Type (0X09)
Display Information Type (0x09) COMMAND: Set the VFD display information type (where applicable). Byte: Description: The return data echoes the data sent. 0x21 Zone number 0x09 Example Command/response sequence to set the display text to show the current FM 0x01 radio text with FM playing in zone 2: Data For all sources:... -
Page 9: Request Current Source (0X1D)
Request current source (0x1D) COMMAND: Request the source currently selected for a given zone. Byte: Description: 0x21 Example Zone number Command/response sequence to request the current source for Zone 1 where 0x1D the source is set to ‘SAT’: 0x01 Data 0xF0 Command: 0x21 0x01 0x1D 0x01 0xF0 0x0D... -
Page 10: Input Command Specifications
Input Command Specifications COMMAND: Byte: Description: Video selection (0x0A) 0x21 Changes the video input. Returns invalid (0x85) if OSD is showing setup 0x01 screen. 0x0A 0x01 Example Data Source: Command/response sequence to change the video source for zone 1 to ‘PVR’: 0x00 –... -
Page 11: Output Command Specifications
Output Command Specifications COMMAND: Byte: Description: Set/Request Volume (0x0D) 0x21 Set or request the volume of a zone. Zone number This command returns the volume even if the zone requested is in mute. The 0x0D “Request Mute status” command can be used to discover if the zone is muted. 0x01 Data 0x00 (0) –... -
Page 12: Request Decode Mode Status - 2Ch (0X10)
Request decode mode status — 2ch (0x10) COMMAND: Request the decode mode for two-channel material in zone 1. Byte: Description: 0x21 Example 0x01 Command/response sequence to request the decode mode in zone 1 where the 0x10 mode is Dolby Surround Mode: 0x01 Command: 0x21 0x01 0x10 0x01 0xF0 0x0D... -
Page 13: Request Rds Information (0X12)
Request RDS information (0x12) COMMAND: Request RDS information from the current radio station in a given zone. If FM Byte: Description: is not selected on the given zone an error 0x85 is returned. 0x21 Zone number Example 0x12 Command/response sequence to request the RDS information on FM in zone 0x01 1, where the response is “Playing your favourite music”. -
Page 14: Menu Command Specifications
Menu Command Specifications COMMAND: Byte: Description: 0x21 Request menu status (0x14) 0x01 Request which (if any) menu is open in the unit. 0x14 0x01 Example Data 0xF0 – Request the open menu state Command/response sequence to request which menu is open where the ‘Trim’ 0x0D menu is open: RESPONSE:... -
Page 15: Request Dab Station (0X18)
Request DAB station (0x18) COMMAND: Request the current DAB station selected. If DAB is not selected on the given Byte: Description: zone, an error 0x85 is returned. 0x21 Example Zone number Command/response sequence to request the DAB station selection where the 0x18 0x01 station is called “DAB STATION 2”... -
Page 16: Request Preset Details (0X1B)
Request preset details (0x1B) COMMAND: Request details of tuner presets. Byte: Description: 0x21 Example Zone number Command/response sequence to request preset 1 where the response is a preset 0x1B on DAB called “DAB STATION 2”: 0x01 Command: 0x21 0x01 0x1B 0x01 0x01 0x0D Data 0x01- 0x32: (1-50) The number of the required preset Response:... -
Page 17: Setup Adjustment Command Specifications
Setup Adjustment Command Specifications COMMAND: Byte: Description: Treble Equalisation (0x35) 0x21 Adjust the amount of treble equalisation. Zone number 0x35 Example 0x01 Command/response sequence to set the treble to -2dB: Data 0x00 — 0x0C – Set treble to 0dB — +12dB Command: 0x21 0x01 0x35 0x01 0x82 0x0D 0x81 —... -
Page 18: Dolby Volume (0X38)
Dolby Volume (0x38) COMMAND: Control the status of the Dolby volume system. Byte: Description: 0x21 Example Zone number Command/response sequence to turn the Dolby Volume system on: 0x38 Command: 0x21 0x01 0x38 0x01 0x01 0x0D 0x01 Response: 0x21 0x01 0x38 0x00 0x01 0x02 0x0D Data 0x00 –... -
Page 19: Balance (0X3B)
Balance (0x3B) COMMAND: Adjust the balance control. Byte: Description: 0x21 Example Zone number Command/response sequence to set the balance to -3: 0x3B Command: 0x21 0x01 0x3B 0x01 0x83 0x0D 0x01 Response: 0x21 0x01 0x3B 0x00 0x01 0x83 0x0D Data 0x00 — 0x06 – Set the balance to 0 — 6 0x81 —... -
Page 20: Compression (0X41)
Compression (0x41) COMMAND: Adjust the dynamic range compression setting. Byte: Description: 0x21 Example Zone number Command/response sequence to set compression to medium: 0x41 Command: 0x21 0x01 0x41 0x01 0x01 0x0D 0x01 Response: 0x21 0x01 0x41 0x00 0x01 0x01 0x0D Data 0x00 –... -
Page 21: Request Incoming Audio Format (0X43)
Request incoming audio format (0x43) COMMAND: Request the incoming audio format. Byte: Description: 0x21 Example Zone number Command/response sequence to request the incoming audio format, where the 0x43 format is Dolby Digital 5.1: 0x01 Command: 0x21 0x01 0x43 0x01 0xF0 0x0D Data 0xF0 –... -
Page 22: Request Incoming Audio Sample Rate (0X44)
Request incoming audio sample rate (0x44) COMMAND: Request the incoming audio sample rate. Byte: Description: 0x21 Example 0x01 Command/response sequence to request the incoming audio sample rate, 0x44 where the rate is 48kHz: 0x01 Command: 0x21 0x01 0x44 0x01 0xF0 0x0D Data 0xF0 –... -
Page 23: Set/Request Zone 1 Osd On/Off (0X4E)
Set/Request Zone 1 OSD on/off (0x4E) COMMAND: Set/Request whether the Zone 1 OSD is shown. Byte: Description: 0x21 Example 0x01 Command/response sequence to set the Zone 1 OSD to ‘Off ’: 0x4E Command: 0x21 0x01 0x4A 0x01 0xF2 0x0D 0x01 Response: 0x21 0x01 0x4A 0x00 0x00 0x01 0x0D Data... -
Page 24: Fm Scan Up/Down (0X23)
FM Scan up/down (0x23) COMMAND: Initiates a FM scan up or down. Note: only valid if on FM input Byte: Description: 0x21 Example 0x01 Command/response to starting a FM scan up: 0x23 Command: 0x21 0x01 0x23 0x01 0x01 0x0D 0x01 Response: 0x21 0x01 0x23 0x00 0x01 0xFF 0x0D Data... -
Page 25: Reboot (0X26)
Reboot (0x26) COMMAND: Forces a reboot of the unit. Byte: Description: 0x21 Example 0x01 Command/response to sending a reboot command: 0x26 Command: 0x21 0x01 0x26 0x06 0x52 0x45 0x42 0x4F 0x4F 0x54 0x06 0x0D Data1 0x52 Response: 0x21 0x01 0x26 0x01 0x00 0x0D Data2 0x45 Data3... -
Page 26: Av Rc5 Command Codes
AV RC5 command codes Advanced Functions These RC5 codes are not present on the supplied remote control but have been These codes are recognised as infra-red signals received by the front panel, created for custom install use. In order for the AVR to respond to these codes RC5 electrical signals received by the remote in jacks and as control data using they must be transmitted from a programmable IR remote control or over the the ‘Simulate RC5 IR Command’... - Page 27 Function RC5 Code RC5 Code [system-command] (Data1 - Data2) Decimal Hexadecimal Zone 2 Power Off 23-124 0x17 - 0x7C Zone 2 Vol+ 23-1 0x17 - 0x01 Zone 2 Vol- 23-2 0x17 - 0x02 Zone 2 Mute 23-3 0x17 - 0x03 Zone 2 Mute On 23-4 0x17 - 0x04...
- Page 28 SH274L Issue B 8500 Balbao BLVD, Northridge, CA 91329 http://www.lexicon.com...
