Harman AMX NMX-ENC-N2612S-C Quick Start Manual

Overview

The SVSI NMX-ENC-N2612S Encoder is part of the N2600 Series and used in conjunction
with N2600 Series Decoders for transmission of video, audio, control, and USB 2.0
over Ethernet. All Encoders and Decoders of the N2600 Series feature balanced audio,
HDMI video connections, and Power-over-Ethernet (PoE+). The N2600 Series Decoders
support output scaling and limited output downscaling options.

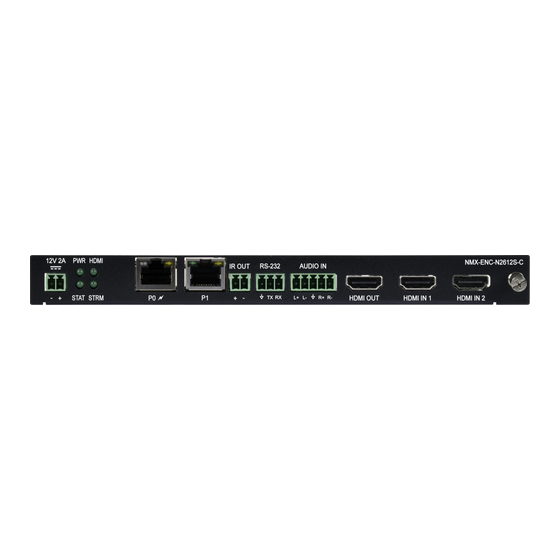

FIG. 1 N2612S-C CARD ENCODER

Installing the N2612S-C Encoder Card:

Follow the steps below to install your new N2612S-C Encoder into an existing N9206
Card Frame.
1. Gently slide the N2612S-C into the card cage slot. Make sure the card is properly
aligned with the guides. The N2612S-C front LED indicators should align with the
holes in the cage faceplate. See Fig. 2.
FIG. 2 Installing Cards
2. Align the thumb screw on to the back plate before seating the N2612S-C into the
cage.
3. Firmly seat the N2612S-C and tighten the thumb screw by hand to secure the
N2612S-C.
4. Use the 2-pin phoenix connector cable with ferrite core attached to connect
the N2612S-C 12VDC input phoenix connector to one of the N9206 six 12VDC
outputs.
5. Repeat these steps until all N2612S-C are properly installed. See Fig. 3.
FIG. 3 Fully Populated N9206
6. For proper airflow, cover any unused card slots with faceplate blanks. Blanks are
sold separately (part number NMX-ACC-N9210).
Make sure the N9206 power is plugged in for proper cooling. The POWER LED
7.
on the front of the N9206 should ALWAYS be on when cards are installed and
powered on.
NMX-ENC-N2612S-C Encoder
Attaching Signal and Control Cables
The following table explains how to attach cables to the front of the Encoder.
IMPORTANT: Encoders must be securely mounted and connected to the switch before
attaching the remaining cables.
NOTE: Any switch handling the N2612S-C Encoder video stream must be configured to
support jumbo frames. Disable the wireless adapter on your computer (it must be hard-
wired to the switch).

Basic Cabling Guidelines

Connector Description
External External Power
Power Connect a 12v regulated power supply (P/N N9312) to the unit's two-pin
terminal block plug connector labeled 12V 2A
P0 (PoE+) PoE+
Connect the units P0 port to an active, PoE+ enabled network switch.
HDMI IN 1 Digital Video Connection
For video encoding of a digital source, connect from the source to
the Encoder's HDMI IN connector using a video cable with an HDMI
connector (or adapter).
HDMI IN 2 Digital Video Connection
For video encoding of a digital source, connect from the source to the
Encoder's HDMI IN 2connector using a video cable with an HDMI
connector (or adapter).
HDMI OUT Digital Video Connection
For video decoding of a digital source, connect from the display to the
Decoder's HDMI OUT connector using a video cable with an HDMI
connector (or adapter).
AUDIO IN - Audio Encoding
STEREO Insert an analog audio cable from the source into the AUDIO IN
STEREO jack (optional) or use the embedded audio from the video
source.
IR OUT IR Connection
Insert an IR cable blaster from the IR device being controlled into the
IR OUT jack (optional).
RS-232 Serial Control Connection
Insert a RS-232 cable from a RS-232 enabled device into the RS-232
jack (optional).
The table shows LED states on initial power up. If not normal, check connections.
Normal
Indicator LEDs
power up
Front LEDs
POWER Green
STATUS Green
Rear LEDs
POWER Green
STAT Green
HDMI Green
STREAM
Green

RESET and ID Buttons

RESET button - (Press and release)
Resets Encoder's CPU.
FIG. 4 BUTTONS LOCATED ON FRONT OF UNIT
QUICK START GUIDE
Indicates
PoE+/External power is applied.
On flashing (green) when there is software activity.
PoE+/External power is applied.
On flashing (green) when there is software activity.
On when HDMI sync is detected
On when the unit is streaming to the network.
ID button - (Press and release)
Identifies the unit in N-Able.
(Press and hold 30 seconds)
set Encoder back to factory
defaults.
