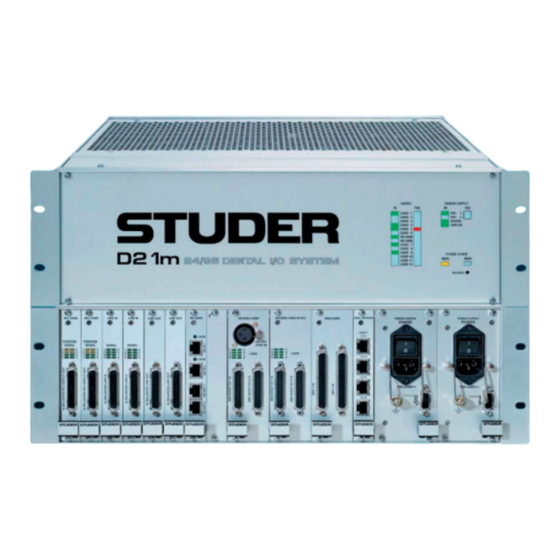

Studer D21m
I/O System Components
Operating Instructions
(January 2012, 21
Edition)
st

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Studer D21m and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Harman Studer D21m

Summary of Contents for Harman Studer D21m

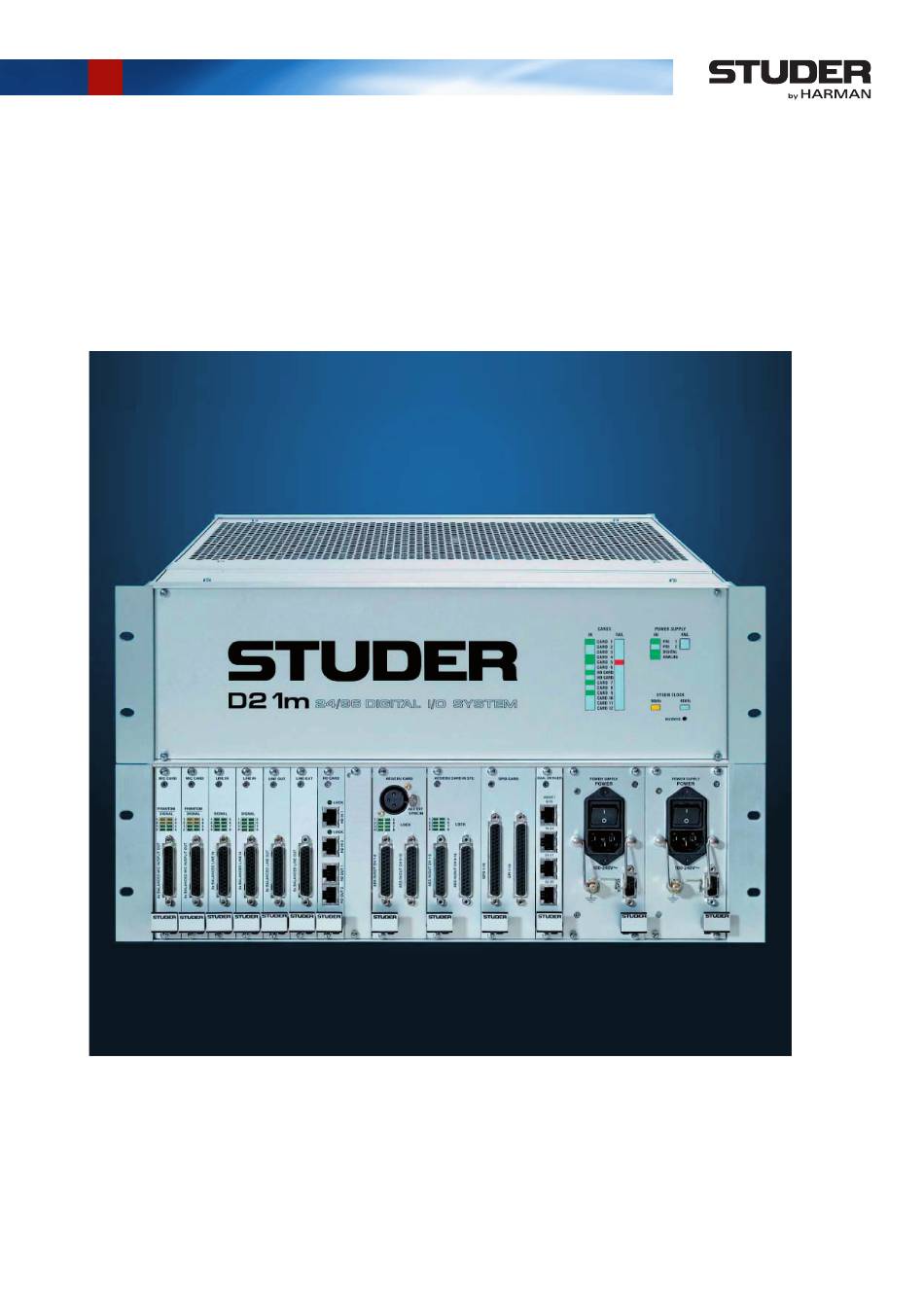

  • Page 1 Studer D21m I/O System Components Operating Instructions (January 2012, 21 Edition)
  • Page 2 Prepared and edited by Copyright by Studer Professional Audio GmbH Studer Professional Audio GmbH Technical Documentation Order no. BD10.275102-U (0112) Riedthofstrasse 214 CH-8105 Regensdorf – Switzerland http://www.studer.ch Subject to change Studer is a registered trade mark of Studer Professional Audio GmbH, Regensdorf...
  • Page 3 Safety Information For Your Own Safety and to Avoid Invalidation of the Warranty Please Read This Section Carefully • Read these instructions. • Keep these instructions. • Heed all warnings. • Follow all instructions. • Do not use this apparatus near water. • Clean only with a dry cloth. • Do not block any ventilation openings. Install in accordance with the manufacturer's instructions.
  • Page 4 Safety Information • Protective Earth (Ground): Green/Yellow (US: Green or Green/ Yellow) • Neutral: Blue (US: White) • Live (Hot): Brown (US: Black) As the colours of the wires in the mains lead may not correspond with the coloured markings identifying the terminals in your plug, proceed as follows: • The wire which is coloured Green and Yellow must be connected to the terminal in the plug which is marked with the letter E or by the earth symbol. • The wire which is coloured Blue must be connected to the terminal in the plug which is marked with the letter N. • The wire which is coloured Brown must be connected to the terminal in the plug which is marked with the letter L. Ensure that these colour codes are followed carefully in the event of the plug being changed • This unit is capable of operating over a range of mains voltages, as marked on the rear panel.
  • Page 5 Safety Information Conforming to this directive will minimise the risk of hearing damage caused by long listening periods. A simple rule to follow is: The longer you listen, the lower the average volume should be. Please take care when working with your audio system –...
  • Page 6 Installation General Installation Instructions Please consider besides these general instructions also any product-specific instructions in the “Installation” chapter of this manual. Unpacking Check the equipment for any transport damage. If the unit is mechanically damaged, if liquids have been spilled or if objects have fallen into the unit, it must not be connected to the AC power outlet, or it must be immediately disconnected by unplugging the power cable.
  • Page 7 Installation / EMC Class I Equipment (Mains Operation) Should the equipment be delivered without a matching mains cable, the latter has to be prepared by a trained person using the attached female plug (IEC 320 / C13 or IEC 320 / C19) with respect to the applicable regulations in your country.
  • Page 8 EMC / Maintenance / ESD • Use a system grounding concept that satisfies the safety requirements (class I equipment must be connected with a protective ground conduc- tor) and that also takes into consideration the EMC require ments. When deciding between radial, surface, or combined grounding, the advantages and disadvantages should be carefully evaluated in each case.
  • Page 9 ESD / Repair • When performing a repair by replacing complete assemblies, the removed assembly must be sent back to the supplier in the same packing material in which the replacement assembly was shipped. If this should not be the case, any claim for a possible refund will be null and void. • Unpacked ESD sensitive components should only be handled in ESD protected areas (EPA, e.g.
  • Page 10 Repair / Disposal SMD Components Studer has no commercially available SMD components in stock for service purposes. For repair, the corresponding devices have to be purchased locally. The specifications of special components can be found in the service manual. SMD components should only be replaced by skilled specialists using appro- priate tools.
  • Page 11 Conformity Declarations of Conformity Class A Equipment - FCC Notice This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide a reasonable protection against harmful interfer- ence when the equipment is operated in a commercial environment.
  • Page 12 Appendix Appendix 1: Air Temperature and Humidity General Normal operation of the unit or system is warranted under the ambient condi- tions defined by EN 60721-3-3, set IE32, value 3K3. This standard consists of an extensive catalogue of parameters, the most important of which are: ambient temperature +5...+40 °C, relative humidity 5...85% (i.e., no formation of condensation or ice);...
  • Page 13 Appendix evaporation (sublimation) may be expected; otherwise the system must be heated and dried while switched off. A system without visible internal formation of ice or condensation should be heated up with its own heat dissipation, as homogeneously (and subsequently as slow) as possible;...
  • Page 14 Appendix Appendix 2: Mains Connector Strain Relief For anchoring connectors without a mechanical lock (e.g. IEC mains connec- tors), we recommend the following arrangement: Procedure: The cable clamp shipped with your unit is auto-adhesive. For mounting please follow the rules below: • The surface to be adhered to must be clean, dry, and free from grease, oil, or other contaminants.
  • Page 15 Appendix Appendix 3: Software License Use of the software is subject to the Studer Professional Audio Software License Agreement set forth below. Using the software indicates your accep- tance of this license agreement. If you do not accept these license terms, you are not authorized to use this software.
  • Page 16 Appendix Reverse Engineering Reverse engineering is only permitted with the express consent of Studer. The consent of Studer can be obtained but is not limited to the case in which the interface software can not be provided by Studer. In any case Studer has to be informed immediately upon complete or partial reverse engineering.

  • Page 17: Table Of Contents

    D21m System CONTENTS General ....................................3 Utilization for the Purpose Intended ..........................3 First Steps ..................................3 1.2.1 Unpacking and Inspection ..............................3 1.2.2 Installation ..................................3 1.2.3 Adjustments, Repair, Cleaning ............................4 Introduction ..................................5 System Philosophy ................................. 5 The Frame and Its Cards ..............................6 Hub Frame ..................................
  • Page 18 D21m System D21m Modules .................................. 23 Available Cards ................................23 Analog I/O Cards ................................. 24 6.2.1 Mic/Line In Card ......... A949.0427 ....................24 6.2.2 Analog Insert Card ........A949.0428 ....................26 6.2.3 HD Mic/Line In Card........A949.0447 ....................28 6.2.4 Line In Card ..........A949.0421 ....................30 6.2.5 Line Out Card ..........

  • Page 19: General

    D21m System GENEral Utilization for the Purpose Intended The D21m system is intended for professional use. It is presumed that the unit is operated only by trained personnel. Servicing is reserved to skilled technicians. The electrical connections may be connected only to the voltages and signals designated in this manual.

  • Page 20: Adjustments, Repair, Cleaning

    D21m System Operating Mode Total Height Max. Power Dissipation Closed 40 W Passive, with 2 vents 80 W Active, w. 1 fan unit, 1 vent 200 W Card No. Card Name Power Dissipation (approx.) Backplane with power supply 10 W A949.0427 Mic/Line in card (transformerless) 11 W...

  • Page 21: Introduction

    D21m System INTrOdUCTION The D21m I/O system provides very cost-effective inputs and outputs with maximum flexibility while maintaining the well-known Studer sound quality. It is the first Studer I/O system providing full 96 kHz operation. Different I/O modules can be plugged into a frame, providing I/O systems tailor-made to customer needs.

  • Page 22: The Frame And Its Cards

    D21m System play it within the console’s system surveyor page. This is without sacrificing any audio channels within the MADI link. Additionally, an RS422 signal can be ‘tunneled’ through the MADI connection. In this way e.g. a MIDI device can be connected to the remote I/O box and find the ‘extension’ connector on the hub frame next to the core again.

  • Page 23: Hub Frame

    D21m System The frame hosts one or two ‘High Density Link’ cards (short: HD Link), providing the main audio connection to the DSP core. From the HD card(s) the signals are redirected to the different types of I/O cards in the frame. Therefore at least one HD card must be inserted in the frame.
  • Page 24 D21m System for the current production). In both cases the surveyor application indicates ‘green’, unless the user tells it to wait for the missing I/O components. There is no need to tell the system which channel has a microphone preampli- fier included, since this detection is done automatically.

  • Page 25: Applications

    D21m System aPPlICaTIONS local I/O Only (located Close to Core) I/O Frame (One or Multiple) Studer Proprietary HD Link (max. Distance 10 m) SCore & I/O Frame One I/O Box within long distance Remote I/O frame with Different Types of I/O Cards I/O Box Standard Dual Optical MADI Cable with SC Type Connectors.

  • Page 26: Multiple I/O Boxes, Long Distance

    D21m System using card-internal DIP switches. In order to provide synchronization and surveyor information it is necessary to provide a MADI link to and from the remote I/O boxes at all times, even if the channel count should be set to 0. The protocol switch on the front panel of the MADI I/O card may be set to ‘64 channel’...

  • Page 27: Multiple Hubs, Multiple I/O Boxes, Long Distance

    D21m System ‘64 channel’ allowing maximum usage of the available channels. This switch may only have to be set to ‘56 channel’ protocol for operation with third- party MADI devices (in case no remote I/O box is connected to the MADI I/O card).

  • Page 28: Shared I/O

    D21m System The RS422 link for the second hub may be taken from the Vista desk by using a further RS422 port. The channel count of the MADI link may be set in steps of eight channels using card-internal DIP switches. In order to provide synchronization and surveyor information it is necessary to provide a MADI link to and from the remote I/O boxes at all times, even if the channel count should be set to 0.

  • Page 29: System Examples

    D21m System SySTEM ExaMPlES System with remote and local I/O Remote I/O Box, equipped w. e.g.: • 44 Mic Inputs Remote • 8 Line Outputs (Returns) I/O Box or e.g.: • 40 Mic Inputs • 8 Line Inputs • 8 Line Outputs (Returns) or e.g.: •...

  • Page 30: System With Remote Midi Connection

    D21m System System with remote MIdI Connection I/O Frames with Different Types of I/O Cards Remote I/O Box 1 ..Remote I/O Box 5 ..Remote I/O Boxes MIDI Signal into 0...64 Ch Optical MADI, incl. MIDI ‘AUX’...

  • Page 31: Additional Information

    D21m System addITIONal INFOrMaTION Mapping of I/O Cards to MadI and Hd link Channels The HD card is redirecting the audio channels from the different I/O cards into the Studer proprietary HD link format (in case of a hub) or MADI (in case of a remote I/O box).

  • Page 32: Special Case: Microphone/Line Input Card

    D21m System Special Case: Microphone/line Input Card The smallest modularity of channels used up within the MADI and Core link is eight. If an odd number of Mic/Line input cards is used, they should be inserted in pairs, with the last card in an odd slot (no. 1, 3, 5...) This single card will allocate 8 channels but only 4 of them will have audio.

  • Page 33: 96 Khz Operation

    D21m System 96 kHz Operation D21m Frame The D21m I/O system is fully supporting 96 kHz operation. For digital for- mats, the following standards are supported: AES/EBU 2 channels are sent over one cable, both at 48 kHz and 96 kHz, just by dou- bling the clock frequency of the transmitted signal in 96 kHz operation.

  • Page 34: Input/Output Delays

    D21m System Input/Output delays Different DSP core types as well as the different I/O cards cause different delays. Several facts require additional consideration. Total I/O delay is the sum of the delays given in the tables below and depends on the configuration. Input Output AES/EBU, local**...

  • Page 35: Additional Src Delay

    D21m System 5.5.1 additional SrC delay Enabled input and output SRCs each cause an additional delay (D) depending on the input and output sampling rates (f and f S_IN S_OUT Input and output delays can be calculated using the following formulas: [1] f : D = [2] f...

  • Page 36: Standalone D21M I/O System

    D21m System Standalone d21m I/O System Previously only available for Studer digital mixing consoles, the D21m I/O system is now opened up for use with any audio equipment. With the intro- duction of the D21m remote control software, the microphone amps and A/D converters become available to a wide range of applications, such as record- ing, broadcast, and live sound.
  • Page 37 D21m System The frame acts as a clock slave and synchronizes to the optical MADI signal. It therefore automatically detects the clock rate of the connected audio device. Supported clock rates are 44.1, 48, 88.2, and 96 kHz. In 44.1 and 48 kHz mode the two MADI interfaces work in parallel. One of them may be used as a digital split output or for redundancy.

  • Page 38: Connection To The Performa Core

    D21m System Connection to the Performa Core The Performa core is connected to the D21m I/O System in a similar way as the SCore. The main difference is that the HD link connection from the core towards the D21m I/O frame only carries up to 48 channels (at both 48 and 96 kHz).
  • Page 39 D21m System d21M MOdUlES available Cards # of Console # of Console Name Connector Type Width (Slots) Order No. Format Input Channels Output Channels Analog I/O Cards *Mic/Line Input (incl. Dir. Outs) Mic/Line (4 Dir. Outs) D25 f single A949.0427 *Analog Insert Line D25 f...
  • Page 40 D21m System analog I/O Cards 6.2.1 Mic/line In Card A949.0427 Four analog microphone/line inputs, electronically balanced, with 24 bit, 44.1/48/88.2/96 kHz delta-sigma A/D converters. Four analog split outputs, electronically balanced. Green ‘signal present’ and yellow ‘phantom power’ indicators per channel. Mic/line sensitivity, gain setting in 1 dB steps, low- cut filter, soft clipping and 48 V phantom power on/off are controlled by the console software.
  • Page 41 D21m System RA1...4: Factory Setting (Level Fine-Adjustment) LEDs PHANTOM 1-4 For each channel a yellow LED indicates that pantom power is on. SIGNAL 1-4 For each channel a green LED indicates whether input signal is present; its brightness is a rough indication of the signal level. Alignment RA1-4 Please note that the level fine-adjust trimmer potentiometers are factory-set.
  • Page 42 D21m System 6.2.2 analog Insert Card A949.0428 This card is intended for use with a D21m Mic/Line In card (A949.0427) and features four electronically balanced analog inserts. The insert sends are always active, return on/off is controlled by the console software (default off). Insert sends and returns on standard 25-pin D-type connector (female).
  • Page 43 D21m System § Ch 1 §§ § Ch 2 §§ § Ch 3 §§ § Ch 4 §§ Solder Pads: * = Connect for Return Level –9 dB Important: ** = Connect for Return Level +9 dB Do NOT connect * and ** §...
  • Page 44 D21m System 6.2.3 Hd Mic/line In Card A949.0447 Four analog microphone/line inputs, transformer-balanced, with 24 bit, 44.1/48/88.2/96 kHz delta-sigma A/D converters. Four analog split outputs, electronically balanced. Green ‘signal present’ and yellow ‘phantom power’ indicators per channel. Mic/line sensitivity, gain setting in 1 dB steps, low- cut filter, soft clipping and 48 V phantom power on/off are controlled by the console software.
  • Page 45 D21m System RA1...4: Factory Setting (Level Fine-Adjustment) LEDs PHANTOM 1-4 For each channel a yellow LED indicates that pantom power is on. SIGNAL 1-4 For each channel a green LED indicates whether input signal is present; its brightness is a rough indication of the signal level. Alignment RA1-4 Please note that the level fine-adjust trimmer potentiometers are factory-set.
  • Page 46 D21m System 6.2.4 line In Card A949.0421 Eight-channel line input card with 24 bit, 44.1/48/88.2/96 kHz A/D Converter, delta-sigma conversion. Transformer-balanced inputs. 96 kHz, 88.2 kHz, 48 kHz, or 44.1 kHz operation. 7-26 dBu input sensitivity. ‘Signal present’ LED indicator. Inputs on standard 25-pin D-type connector (female). Input level (for 0 dB 15/24 dBu (fixed, jumper-selectable), or 7-26 dBu (adjustable)
  • Page 47 D21m System Level Ch 1 Level Ch 2 Ch 1 Ch 2 Ch 3 Ch 4 Level Ch 3 Level Ch 4 Level Ch 5 Level Ch 6 Ch 5 Ch 6 Ch 7 Ch 8 Level Ch 7 Level Ch 8 Jumpers Level (Ch1-8) Two positions each: 15 dBu (factory default) or 24 dBu.
  • Page 48 D21m System 6.2.5 line Out Card A949.0420 Eight-channel, 24 bit line output card with 24 bit D/A converters with 96 kHz, 88.2 kHz, 48 kHz, or 44.1 kHz operation. Electronically balanced outputs. 7…26 dBu max. output level. Outputs on standard 25-pin D-type connector (female).
  • Page 49 D21m System 24 dBu 24 dBu Level Level Ch 1 Ch 2 15 dBu 15 dBu 24 dBu 24 dBu Level Level Ch 3 Ch 4 15 dBu 15 dBu 24 dBu 24 dBu Level Level Ch 5 Ch 6 15 dBu 15 dBu 24 dBu...
  • Page 50 D21m System digital I/O Cards 6.3.1 aES/EBU M2 Cards A949.0454, A949.0455, A949.0456 AES/EBU input/output card with 16 Ch I/O, available in 3 different versions: A949.0454xx without SRCs (Sampling Rate Converters; Vista only) A949.0455xx with input SRCs only A949.0456xx with input and output SRCs (see adjacent picture). Selectable output sampling rates: 96 kHz, 48 kHz, 44.1 kHz, or external refer- ence (22-108 kHz).
  • Page 51 D21m System not fitted Factory Default Setting: not fitted LEDs LOCK 1-8 These green LEDs are on if a valid AES/EBU signal is available at the inputs. DIP Switches S1 (C+U Bits in Audio) Specifies the usage of the ZCU bits. If OFF, the audio is standard 24 bit PCM; if ON, the LSBs of the audio carry the ZCU bits.
  • Page 52 D21m System no external sync signal if not necessary, and the output will be clocked with the internal system clock. As soon as an external sync signal is provided to the AES EXT SYNC IN connector, the output will automatically be clocked by the extermal sync signal.
  • Page 53 D21m System Insert ZCU bits either in the LSB of the audio 0000 or in the spare bits (dedicated position) ZCU in Audio To Backplane ZCU in Ded.Pos. Audio AES/EBU Input C+U Bit in audio RX SRC Bypass 24 bit 48 kHz 20 bit 96 kHz...
  • Page 54 D21m System 6.3.2 MadI I/O Cards A949.0430, A949.0431, A949.0433 The MADI I/O cards can establish a 64-channel MADI input and output to the D21m frame, with 44.1/48/88.2/96 kHz operation. Three different versions are available: A949.0430xx Optical / multi-mode fibre A949.0431xx Optical / single-mode fibre A949.0433xx Twisted-pair (+ additional word clock out).
  • Page 55 D21m System MADI I/O Card, Optical Versions A949.0430 / A949.0431 Default Setting: Default Setting: MADI I/O Card, Twisted-Pair Version A949.0433 Default **S1 Setting: 1 2 3 4 5 6 7 8 1 2 3 4 5 6 7 8 Default Setting: Default Setting:...
  • Page 56 D21m System ACTIVE IF S1.1 S1.2 MADI MAIN S1.5 Reserved pairs (RJ45) for FS Sync S1.6 transmission S1.3 S1.4 MADI S1.7 (RJ45) S1.8 FS_SYS S4.7 WCLK S4.8 (On versions A949.0430, A949.0431 only) Rotary switch for baud rate selection of the RS422 user interface: Position Setting 115’200 bps (factory default) 57’600 bps...
  • Page 57 D21m System DIP switch for MADI setting (on version A949.0433, the switches 4-8 are used differently, as indicated below): Card Versions Switch Setting OFF: AUX IF is used for channel extension at 96 kHz (factory default) ON: AUX IF is used for redundancy at 96 kHz (in 48 kHz mode, AUX IF is used for redundancy regardless of the switch setting) ALL MADI Cards Both OFF: Standard operation (factory default)
  • Page 58 D21m System 6.3.3 adaT I/O Cards A949.0425, A949.0429 These cards feature two optical eight-channel ADAT inputs and outputs with 44.1/48/88.2/96 kHz operation. Two versions are available: A949.0425xx Standard version for all-plastic fibre (APF) A949.0429xx Long-distance version for plastic-clad fibre (PCF; optional). Optical inputs and out puts are provided on TosLink connectors available in APF (980/1000 µm all-plastic fibre) and PCF (200/300 µm plastic-clad fibre) versions.
  • Page 59 D21m System 16-Ch Mode (Default Setting) 8-Ch Mode LEDs IN CH 1-8, 9-16 These LEDs indicate that valid ADAT signals are available at the respective inputs. Jumper 8/16 Ch Mode In 96 kHz mode the card handles a total of 8 channels (4 per interface). In order to avoid different numbers of channels when switching from 96 kHz to 48 kHz and vice versa, it is possible to restrict the card to 8 channels even in 48 kHz mode.
  • Page 60 D21m System 6.3.4 TdIF I/O Card A949.0426 This card provides two eight-channel TDIF I/O interfaces with 96 kHz, 88.2 kHz, 48 kHz, or 44.1 kHz operation with wordclock sync outputs on BNC connectors. Inputs and outputs are provided on standard 25-pin D-type connectors (female).
  • Page 61 D21m System 16-Ch Mode (Default Setting) 8-Ch Mode Connector Pin Assignment, 48 kHz Operation (2 × 25pin D-type, female, UNC 4-40 thread) Pin Signal CH 1-8 Signal CH 9-16 Pin Signal CH 1-8 Signal CH 9-16 CH 1/2 out CH 9/10 out 14 GND CH 3/4 out CH 11/12 out...
  • Page 62 D21m System 6.3.5 3G SdI Input Card A949.0452 The 3G/HD/SD SDI (serial digital interface) 16-channel de-embedder card is able to de-embed eight or 16 audio channels from SDI-SD as well as from SDI-HD and 3G (full HD) video streams. For the D21m I/O system it acts as an eight- or 16-channel audio input card.
  • Page 63 D21m System 1 2 3 4 5 6 7 8 LEDs SDI LOCK (Green); indicates a valid (3G, HD or SD) SDI signal at the input. (Yellow); indicates a valid HD SDI signal at the input. (Yellow); indicates a valid 3G SDI signal at the input. DIP Switches S1.1, S1.2 S1.1...
  • Page 64 D21m System 6.3.6 SdI I/O Card A949.0442 The HD/SD SDI (serial digital interface) embedder/de-embedder card is able to handle video signals according to the SD as well as the HD standard. It can act as an eight-channel embedder, an eight-channel de-embedder, or as a combination of the two.
  • Page 65 D21m System Default Setting: Default Setting: LEDs SDI LOCK Indicates a valid (HD or SD) SDI signal at the input. Indicates a valid HD SDI signal at the input. DIP Switches Switch Setting OFF: Enable de-embedder (factory default) OFF: Enable embedder (factory default) OFF: SRC bypass (factory default) reserved (must always be OFF) DIP Switch on SDI Module...
  • Page 66 D21m System 6.3.7 3G SdI I/O Card A949.0451 The 3G/HD/SD SDI (serial digital interface) embedder/de-embedder card is able to handle video signals according to the 3G (full HD), HD and SD standards; both level A and B versions of 3G signals are supported. Standard selection is performed automatically.
  • Page 67 D21m System 3G SDI Embedder/De-Embedder Module Master Clk 48 kHz Slave Clk SD/HD Thru De-Embedder SD/HD Video In Clk Out Clk Audio In Audio In Ch 1...16 Ch 1...16 Delay 16 x SRC Bypass Test Pattern Generator SDI HW Bypass Out Clk In Clk Audio Out...
  • Page 68 D21m System DIP Switch Definition S1.1 S1.2 S1.3 S1.4 S1.5 S1.6 S1.7 S1.8 OFF OFF All embedders active, card has 16 output channels OFF ON Only groups 1 and 2 will be embedded, groups 3 and 4 are transparent. Card has 8 output channels ON OFF Only groups 3 and 4 will be embedded, groups 1 and 2 are transparent.
  • Page 69 D21m System 6.3.8 dolby E/digital decoder Card ® A949.0443/.0444 About Dolby Dolby ® E allows encoding of up to 8 mono audio channels and some metadata ® into a pair of two channels (e.g. AES/EBU) by using 20 audio bits thereof. Both encoding and decoding processes create one video frame of delay.
  • Page 70 D21m System Current consumption (3.3 V) 0.2 A (5 V) 0.8 A (A949.0443); 1.3 A (A949.0444) Operating temperature 0-40 °C (fitted on A949.0444 ONLY) (must ALWAYS be fitted) LEDs M1 / M2 Indicate that a valid AES/EBU signal is detected on main input 1/2. P1 / P2 Indicate that a valid AES/EBU signal is detected on fallback input 1/2.
  • Page 71 D21m System S2.4 S2.4 PCM Latency (Module 1 only) PCM signal is delayed by 1 video frame (factory default) PCM signal is minimally delayed Decoding a Dolby ® E stream always causes a delay of one video frame. In case a regular PCM signal is fed to the card, this can be delayed by one video frame, too.
  • Page 72 D21m System S1.4 S1.4 PCM Latency (Module 2 only) PCM signal is delayed by 1 video frame (factory default) PCM signal is minimally delayed Same as S2.4 above, but for module 2. S1.5 S1.5 Module 2 Pulldown Mode Pulldown mode is off (factory default) Pulldown mode is on Same as S2.5 above, but for module 2.
  • Page 73 D21m System METADATA OUT (9-pin D-type, female) The Metadata Out socket allows sending the meta data of either module or of both modules at once. If the meta data of either decoder module 1 or 2 is required, plug the short flat cable (W1) coming from the METADATA OUT front-panel socket to the PCB socket P6 (labeled META1;...
  • Page 74 D21m System 6.3.9 CobraNet Card ® A949.0445 This card allows sending and receiving of up to 32 audio channels to/from a CobraNet . DIP switches on the card allow setting the number of input or ® output channels seen by the console. Default setting is 32 output and no input channels.
  • Page 75 D21m System DIP Switch DIP switch for D21m channel count setting: Number of Channels OFF OFF OFF OFF 0 inputs (factory default) OFF OFF OFF ON 8 inputs OFF OFF ON OFF 16 inputs OFF OFF ON 24 inputs OFF ON OFF OFF 32 inputs NOT ALLOWED OFF OFF OFF OFF 0 outputs...
  • Page 76 D21m System 6.3.10 aviom a-Net Card ® A949.0446 This card allows implementing the head of an Aviom A-Net Pro-16 chain. ® With this standard, 16 mono signals can be fed to an infinite number of Aviom personal mixers (such as the A-16 II) may be connected in a daisy chain configuration.
  • Page 77 D21m System Front-Panel Switch Position Setting OFF: Channels 1 and 2 are mono (factory default) ON: Channels 1 and 2 are a stereo group OFF: Channels 3 and 4 are mono (factory default) ON: Channels 3 and 4 are a stereo group OFF: Channels 5 and 6 are mono (factory default) ON: Channels 5 and 6 are a stereo group OFF: Channels 7 and 8 are mono (factory default)
  • Page 78 D21m System 6.3.11 EtherSound Card ® (Details: www.digigram.com) The EtherSound card allows connecting the D21m I/O System to an Ether- ® Sound network. Towards the D21m system, it acts similar to a MADI card ® combined with a GPIO card. The number of audio channels used can be configured with DIP switches.
  • Page 79 D21m System ES Giga J22: ES 100 LEDs ES-100 / ES-GIGA Indicate the mode selected with jumper J22. ES CLOCK Green: The card is the clock source of the EtherSound network. ® Red (only in case of a ring network topology): The card was defined to be the clock source of the EtherSound network, but it is not, due to a device or ®...
  • Page 80 (Details: www.bcd-audio.co.uk) The BCD 100421 card is designed to electrically and mechanically fit into a Studer D21m I/O frame and is one slot wide. It is based around an FPGA which embeds a Fractional DSP processor designed by BCD Audio.
  • Page 81 D21m System Diagram valid for all card versions! GLITS / BLITS Version In this version the card provides 8 audio outputs to the console. Stereo tone is sent on channels 1 and 2, and Surround tone on channels 3-8. The top 8 front panel LEDs show the sequence of tones.
  • Page 82 D21m System depending on the DIP switch settings. A typical use of this card is to provide a simple sum of two or more signals to a single output. GPI 1 GPI 3 GPI 9 In 1 –3 dB Mute Ph Rev Out 1 In 2...
  • Page 83 D21m System For example, a presenter might wish to hear a mix of a console monitor selec- tor and an external talkback system, or a simple mono sum of a stereo signal is required to feed a special output. DIP switches set the quantity of inputs and outputs the card consumes or feeds from/to the D21m backplane.
  • Page 84 D21m System Non-audio I/O Cards 6.4.1 GPIO Card A949.0435 For general-purpose input/output control signals, this card provides 16 electri- cally isolated opto-coupler inputs (5-12 VDC) and 16 open-collector outputs. 5 VDC supply pins are available. Inputs and outputs on standard 25-pin D-type connectors (female).
  • Page 85 D21m System GPI 1-16 / GPO 1-16 (25pin D-type, female, UNC 4-40 thread) Connector Pin Assignment Pin Signal ‘GPI 1-16’ Signal ‘GPO 1-16’ Pin Signal ‘GPI 1-16’ Signal ‘GPO 1-16’ GPI 1-4 common GPO 1 14 GPI 11 GPO 14 GPI 1 GPO 2 15 GPI 12...
  • Page 86 D21m System 6.4.2 GPIO Card with relay Outputs A949.0436 For general-purpose applications requiring total electrical isolation, this card provides 16 electrically isolated opto-coupler inputs with integrated current sink (5-24 VDC) and 16 electrically isolated outputs using SPST relay con- tacts. 5 VDC supply pins are available. Inputs and outputs on standard 37-pin D-type connectors (female).
  • Page 87 D21m System GPI 1-16 / GPO 1-16 (37pin D-type, female, UNC 4-40 thread) Connector Pin Assignment Pin Signal ‘GPI 1-16’ Signal ‘GPO 1-16’ Pin Signal ‘GPI 1-16’ Signal ‘GPO 1-16’ GPI 1a GPO 1a 20 GPI 1b GPO 1b GPI 2a GPO 2a 21 GPI 2b GPO 2b...
  • Page 88 D21m System Hd Cards 6.5.1 Hd Card S A949.0412 The D21m HD card S provides the link to the DSP core systems. Each input and output can handle up to 96 channels in each supported sampling rate (in combination with the Performa core, the number of I/O channels is restricted to 48).
  • Page 89 D21m System Default setting Default setting for A949.0412.22 for A949.0412.21 LEDs LOCK On if a valid signal is available at the input that is locked to the system clock. DIP switch When using the Performa core, only 48 channels can be transmitted from the core to the D21m system.
  • Page 90 D21m System 6.5.2 Hd rS422 Card A949.0415 The D21m HD RS422 card provides the link to the DSP core systems. Each input and output can handle up to 96 channels in each supported sampling rate (in combination with the Performa core, the number of I/O channels is restricted to 48).
  • Page 91 D21m System Default Setting: Default Setting: LEDs LOCK On if a valid signal is available at the input that is locked to the system clock. DIP Switches Switch Setting OFF: Standard mode, 96 channels on each HD IN (factory default) ON: Performa mode, 48 channels on each HD IN OFF: Control data is passed from HD link to RS422 port (factory default);...
  • Page 92 D21m System 6.5.3 MadI Hd Cards A949.04113x, A949.04133x, A949.04143x The D21m MADI HD card is plugged into an HD card slot in the remote I/O box and provides the link to the hub frame. 3 versions are available: A949.04113x Optical / multi-mode fibre version A949.04133x Optical / single-mode fibre version A949.04143x...
  • Page 93 D21m System Max. cable length (A949.0411, multi-mode fibre, wavelength 1300 nm*, ø 62.5 or 50 µm) 2 km (A949.0413, single-mode fibre, wavelength 1300 nm*, ø 9 µm) 15 km (A949.0414, CAT5e or better, flexible braid) 75 m (A949.0414, CAT7, solid core) 120 m Input sampling rates 44.1/48/88.2/96 kHz ±100 ppm...
  • Page 94 D21m System LEDs (‘lock’) On if a valid MADI signal is present at the input. On if the MADI port (Main or AUX) is active. Switches DIP switch for pinout selection of the front-panel RS422 connector ON OFF OFF OFF OFF Device pinout OFF OFF OFF OFF ON ON Controller pinout (factory default) NO OTHER SETTINGS ALLOWED!
  • Page 95 D21m System CTRL RS 422 / GPIO (9pin D-type, female, UNC 4-40 thread) Connector Pin Assignments Pin RS422 Controller RS422 Device GPIO Chassis Chassis +5 VDC, 200 mA max. RxD – TxD – force to AUX TxD + RxD + force to MAIN Solder/Crimp View (or Socket View)
  • Page 96 D21m System Serial/Merger Cards 6.6.1 Serial Card A949.0437 It is possible to transmit any RS422 serial signals, such as MIDI or Sony 9-pin (machine control) through a MADI connection without losing any audio channels or microphone control of the remote I/O box. A 9-pin D-type connector can be found on the MADI I/O card (hub frame side) as well as on the serial card of the remote I/O frame.
  • Page 97 D21m System Default Setting: DIP Switch S1, DIP switch for RS422 pinout selection: Setting OFF OFF OFF OFF ON ON RS422 Controller pinout RS422 Device pinout (factory ON OFF OFF OFF OFF default) NO OTHER SETTINGS ALLOWED! Connector Pin Assignment RS422 MASTER (9-pin D-type, female) Pin RS422 Controller RS422 Device...
  • Page 98 D21m System 6.6.2 Serial Merger Card A949.0438 This card is used to feed any Studer-internal control signals into the hub I/O frame. A serial connection is made between the Studer product (such as a Vista or OnAir 3000 console) and the MASTER connector of the card. In SCore Live applications where the card is installed in the core frame or in external D21m hubs, the host port must always be accessed through the front-panel MASTER connector;...
  • Page 99 D21m System Default Setting: DIP Switch DIP switch for master port selection (versions A949.0438.22 and up): Setting Depending on location: – SCore: Master port connected to bridge/host card – D21m stand-alone mode: Master port connected to front-panel MASTER socket Master port forced to front-panel MASTER socket (in SCore and D21m locations) (factory default) OFF OFF OFF reserved - NO OTHER SETTINGS ALLOWED! RS422 MASTER (9pin D-type, female, UNC 4-40 thread)
  • Page 100 D21m System 6.6.3 Serial rJ45 Card A949.0439 It is possible to transmit any RS422 serial signals, such as MIDI or Sony 9-pin (machine control) through a MADI connection without losing any audio channels or microphone control of the remote I/O box. The pinout of the 8-pin RJ45 connector can be set to ‘device’...
  • Page 101 D21m System Default Setting: Default Setting: DIP Switches DIP switch for parameter setting: No. Setting 1-5 not used. Default: OFF ON: +24 VDC supply switched to pins 1 and 2 of the RJ45 connector (used for supp- lying an OnAir 3000 desk module). Default: OFF 7-8 not used.
  • Page 102 D21m System 6.6.4 dual Merger Card A949.0440 This card is used to feed any Studer-internal control signals into the hub I/O frame. A serial connection is made between the Studer product (such as Vista or OnAir 3000 consoles) and the HOST connector of the card. In certain SCore applications the host port is connected internally through the backplane.
  • Page 103 D21m System Default Setting: Default Setting: DIP Switches DIP switch for parameter/routing setting: No. Setting Default Setting ON: Bypass rear ON: Bypass front ON: Front control ON: HD card as host not used ON: +24 VDC supply switched to pins 1 and 2 of all RJ45 con- nectors simultaneously (used for supplying OnAir 3000 desk modules) * ON: HD card connect...
  • Page 104 D21m System Power Supply and Miscellaneous 6.7.1 Primary Power Supply A949.0404 (earlier version: A949.0403) The D21m I/O frame may be equipped with either one or, for redundancy purposes, with two primary power supply units. The module used is a primary switching AC/DC converter with an input voltage range of 90-264 VAC/50-60 Hz, automatic power factor correction and a standard IEC mains inlet.
  • Page 105 D21m System STATUS (9pin D-type, female, UNC 4-40 thread) on earlier version A949.0403: Pin Signal * Relay NO (‘normally open’) * Relay COMMON Relay NC (‘normally closed’) n.c. Solder/Crimp View n.c. (or Socket View) +24 VDC (650 mA max.) n.c. * Closed if everything is ok 6.7.2 lEd/PSII PCB...
  • Page 106 D21m System 6.7.3 air deflector/Filter Unit A949.0599 If a D21m I/O frame has a power dissipation of less than 80 W, air deflector/ filter units should be used on top of and below the frame. For frames dissipat- ing more power, an air deflector/filter unit should be used on top of the frame, combined with a fan unit (see below) at its bottom.
  • Page 107 D21m System 6.7.5 Break-Out Boxes For implementing low-granularity standard terminals, a set of passive break- out boxes has been developed. 6.7.5.1 XLR Break-Out Box This box is implemented as a configurable, modular system. The empty box (A949.0580) can be equipped with different options for the left and right part. The picture above shows a break-out box equipped with two options no.
  • Page 108 D21m System 6.7.5.3 GPIO Break-Out Box A949.0588 For easier wiring of single GPI and/or GPO signals, this break-out box can be used. 16 GPI signals and 12 of the 16 GPO signals of a GPIO card with relay outputs (A949.0436) are wired to single, 4-pin Combicon terminals (see below), providing the relay contacts or opto-coupler inputs, as well as GND and a short circuit-proof 5 VDC supply.
  • Page 109 D21m System 6.7.6 Cables Description Length [m] Order no. DB25 and DB37 Cables DB25 m-m 1:1 cable, 8 × shielded 0.45 C089.201161 DB25 m-m 1:1 cable, 8 × shielded C089.201174 DB25 m-m 1:1 cable, 8 × shielded C089.201170 DB37 m-m 1:1 cable C089.201178 DB25 m to XLR Adapter Cables DB25 m to 8 ×...
  • Page 110 D21m System discontinued Components (not available for new systems) 6.8.1 Hd Card A949.0410 Please note that this card has been replaced by the D21m HD card S and is not available for new systems. The D21m HD card provides the link to the DSP core systems. Each input and output can handle up to 96 channels in each supported sampling rate (in combination with the Performa core, the number of I/O channels is restricted to 48).
  • Page 111 D21m System 6.8.2 MadI Hd Cards ( A949.04112x, A949.04132x, A949.04142x The D21m MADI HD card is plugged into an HD card slot in the remote I/O box and provides the link to the hub frame. 3 versions are available: A949.04112x Optical / multi-mode fibre version A949.04132x Optical / single-mode fibre version...
  • Page 112 D21m System Max. cable length (A949.0411, multi-mode fibre, wavelength 1300 nm*, ø 62.5 or 50 µm) 2 km (A949.0413, single-mode fibre, wavelength 1300 nm*, ø 9 µm) 15 km (A949.0414, CAT5e or better, flexible braid) 75 m (A949.0414, CAT7, solid core) 120 m Input sampling rates 44.1/48/88.2/96 kHz ±100 ppm...
  • Page 113 D21m System 6.8.3 aES/EBU I/O Cards A949.0422, A949.0423, A949.0424 AES/EBU input/output card with 16 Ch I/O, available in 3 different versions: A949.0422xx without SRCs (Sampling Rate Converters; Vista only) A949.0423xx with input SRCs only A949.0424xx with input and output SRCs (see adjacent picture). Selectable output sampling rates: 96 kHz, 48 kHz, 44.1 kHz, or external reference (22-108 kHz).
  • Page 114 D21m System Input / output impedance 110 Ω Input sensitivity min. 0.2 V Output level (into 110 Ω) 3.3 V SRC range 22-108 kHz Current consumption (3.3 V) A949.0422: 0.2 A/.0423: 0.4 A/.0424: 0.6 A (5 V) 0.65 A Operating temperature 0-40 °C Output Sampling Rate** Output SRC**...
  • Page 115 D21m System AES IN/OUT (2 × 25pin D-type, female, UNC 4-40 thread) Connector Pin Assignment Pin Signal ‘CH 1-8’ Signal ‘CH 9-16’ Pin Signal ‘CH 1-8’ Signal ‘CH 9-16’ CH 7/8 out + CH 15/16 out + 14 CH 7/8 out – CH 15/16 out –...
  • Page 116 D21m System 6.8.4 SdI Input Card A949.0441 The HD/SD SDI (serial digital interface) 16-channel de-embedder card is able to de-embed eight or 16 audio channels from SDI-SD as well as from SDI-HD video streams. For the D21m I/O system it acts as an eight-or 16-channel audio input card.
  • Page 117 D21m System A: Default ON B: Default OFF LEDs SDI LOCK Indicates a valid (HD or SD) SDI signal at the input. Indicates a valid HD SDI signal at the input. DIP Switches Switch Setting OFF: 16-channel mode (factory default) ON: 8-channel mode OFF: Group 1/2 used in 8-channel mode (factory default) ON: Group 3/4 used in 8-channel mode...
  • Page 118 D21m System Date printed: 24.01.12...
