Harman AMX TPI-PRO-DVI Series Quick Start Manual

Overview

The TPI-PRO-DVI Presentation Interface with DVI displays up to 4 fully-scalable video
windows, each supporting Composite, S-Video, Component, VGA and DVI signals on third
party touch monitors (FIG. 1).
2 USB (Type-A) Serial (Configuration) port
Input ports Status LED
Power switch/LED
VIDEO/VGA/DVI Input 4
VIDEO/VGA/DVI Input 3
VIDEO/VGA/DVI Input 2
VIDEO/VGA/DVI Input 1
DVI Output 2
DVI Output 1

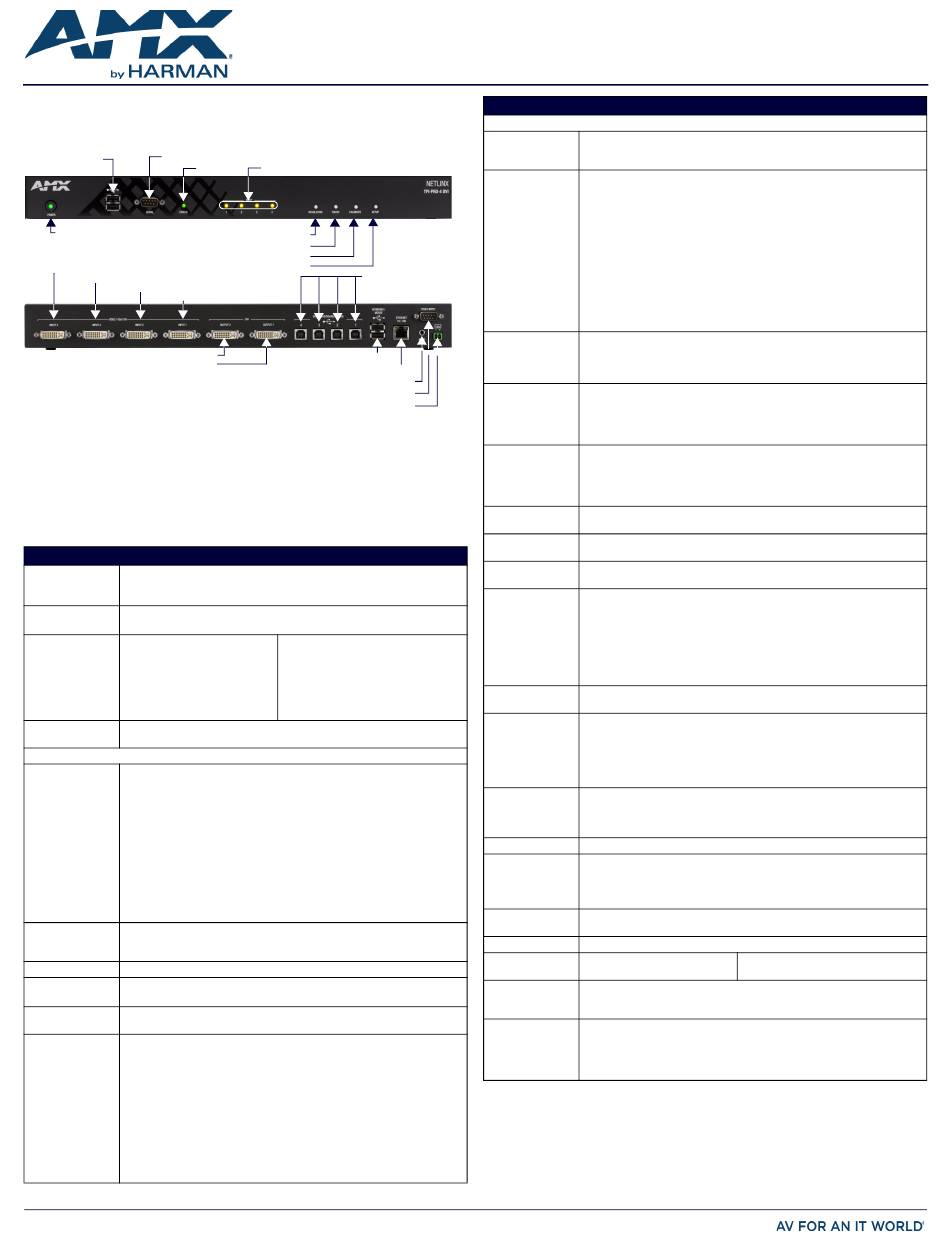

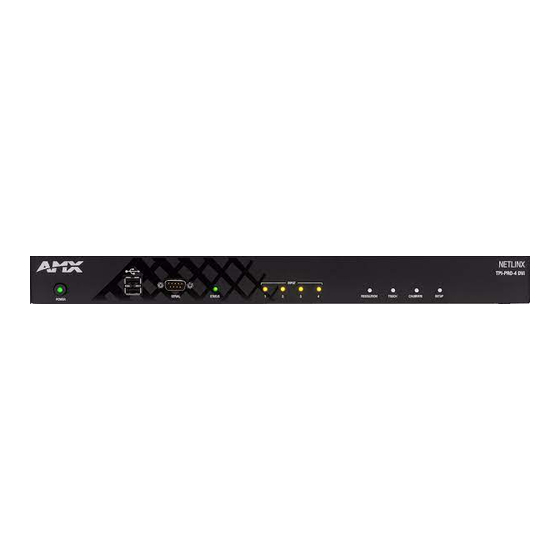

FIG. 1 TPI-PRO-2/4-DVI (TPI-PRO-4-DVI SHOWN)
There are two versions of the TPI-PRO-DVI available:
• The TPI-PRO-DVI-2 (FG2275-112) supports up to two DVI inputs.
• The TPI-PRO-DVI-4 (FG2275-114) supports up to four DVI inputs.
Product Specif ications
The following table lists the specifications for the TPI-PRO-DVI-2 and TPI-PRO-DVI-4. Note
that the primary difference between the TPI-PRO-DVI-2 and TPI-PRO-DVI-4 is in the number of
inputs. In terms of functionality and specifications, they are otherwise identical. The
specifications listed below apply to both versions, unless specifically noted.
TPI-PRO-DVI SPECIF ICATIONS
• Power • Constant current draw: 2.6 A @ 12 VDC
Requirements:
• The PSN6.5 Power Supply (FG423-41 - not included) is recommended, to
accommodate all possible configurations and respective power draws.
• Memory: • 256 MB SDRAM
• 256 MB disk memory
• Supported Video Input DVI Video:
Resolutions: • up to 1920 x 1200
• single-link DVI only
Input Component Video:
• NTSC 480i, 480p
• PAL 576i, 576p
• 720p, 1080i, 1080p
• Supported Audio 48000Hz, 44100Hz, 32000Hz, 24000Hz, 22050Hz, 16000Hz, 12000Hz,
Sample Rates: 11025Hz, and 8000Hz.

Front Panel Components

• Power Toggles the unit off and on.
switch/LED:
• Light Off: Power to the unit is either not plugged in, below approximately
10VDC, above approximately 19VDC, or cross-wired.
• Constant Green: Power to the unit is within nominal voltage limits (between
10VDC and 19VDC, approximately), the unit is on, and all internal power
supplies are operating normally.
• Constant Yellow: Power to the unit is within nominal voltage limits (between
10VDC and 19VDC, approximately) and the unit has been turned off by
pressing the power switch for more than two seconds.
• Flashing Yellow: Power to the unit is within nominal voltage limits (between
10VDC and 19VDC, approximately), but one or more of the internal power
supplies are not operating correctly. The unit needs to be serviced. Contact
AMX Technical Support for further instructions.
• USB Type-A 2 USB Type A ports for connecting up to one annotation touch monitor and
Host ports: up to one keyboard/mouse.
Note: Do not use a USB hub to connect multiple USB devices to the PI.
• Serial port: DB9 connector (male) connects to a DB9 serial port on a PC.
• Status LED: • Constant ON: No communication with the NetLinx Master
• Blinking: In communication with the NetLinx Master
• Input LEDs: Yellow LEDs indicate a valid input signal on each source input
(1-4 on the TPI-PRO-DVI-4, 1-2 on the TPI-PRO-DVI-2).
• Buttons: Four white buttons provide access to the following configuration options:
• RESOLUTION: Opens a screen used to select the TPI-PRO-DVI output video
signal resolution, ranging from 640 x 480@60Hz to 1920 x 1200@60Hz.
Note: This output resolution setting must not be greater than the resolution on
the connected panel.
• TOUCH: Opens the Panel Information page, where you can select from a
series of serial touch panel drivers, and select the driver that corresponds
to the serial touch panel connected to the TPI-PRO-DVI (via the TOUCH
INPUT connector).
• CALIBRATE: Opens the Calibration page, displaying a series of crosshairs.
These crosshairs are used to calibrate the touch device being used.
• SETUP: Opens the TPI-PRO-DVI firmware setup menu.
TPI-PRO-DVI-2/4
Input 1-4 LEDs
Button - RESOLUTION
Button - TOUCH
Button - CALIBRATE
Button - SETUP
USB (Type-B) Sourc
Keyboard/Mouse
Ports 1-4
USB (Type-A) Inputs
Ethernet (RJ-45) port
Audio (Stereo) Output
RS-232 Touch Input port
Power Connector
Input Composite Video and S-Video:
• NTSC M/J
• NTSC 4.43
• PAL B/D/I/G/H
• PAL 60
• PAL M / N / Nc
• SECAM B/D/G/K/L
Total Presentation Interface with DVI
TPI-PRO-DVI SPECIF ICATIONS (CONT.)

Rear Panel Components

• DVI-I Inputs: DVI-I input connectors, one per input source (1-4 on the TPI-PRO-DVI-4,
1-2 on the TPI-PRO-DVI-2). Each input connector supports DVI, VGA
graphics, S-video, composite, and component video.
• DVI-I Outputs: 2 DVI-I (VESA/EIA compatible) output connectors. Both outputs support DVI-
D and analog VGA (RGBHV) outputs.
• Maximum output resolution = 1920 x 1200@60 Hz
• Default output resolution = 1280 x 1024@60 Hz
Note: Refer to the TPI-PRO-DVI Instruction Manual for a listing of Supported
Pixel Display and Refresh Rates.
These connectors display video feeds, G4 graphics and external windowed
video/graphics inputs.
The DVI-I Outputs can be connected to either:
• The touch-panel control display
• The public-view non-touch monitor
Note: The TPI-PRO-DVI does not provide Component (YPbPr) or Interlaced
outputs.
• Source TOUCH, 2 or 4 USB Type-B device ports, one per source computer—for source USB
KEYBOARD/ Touch Monitor, mouse/keyboard control (1-4 on the TPI-PRO-DVI-4, 1-2 on
MOUSE the TPI-PRO-DVI-2).
USB ports:
Note: Do not use a USB hub to connect multiple USB devices to the TPI.
• Host USB Touch 2 USB Type-A ports that can be used for a keyboard, mouse, external storage
Monitor unit, or USB-capable touch panel interface.
KEYBOARD/
Note: Do not use a USB hub to connect multiple USB devices to the TPI.
MOUSE
USB ports:
• ETHERNET RJ-45 port provides 10/100 Mbps communication with the NetLinx Master
10/100 port: (via ICSP protocol over Ethernet).
• The Ethernet port automatically negotiates the connection speed (10 Mbps
or 100 Mbps), and whether to use half duplex or full duplex mode.
• This communication is reflected via the front ICSP LED.
• TOUCH INPUT RS-232 (DB9) 9-pin serial port provides connectivity to a pointer device (i.e.
port: touch screen) that requires a serial connection.
• AUDIO OUT 3.5mm mini-jack provides stereo output - for use with line-level (0.707 VRMS)
connector: non-amplified stereo output only.
• Power 2-pin 3.5 mm mini-Phoenix connector.
connector:
• Serial Touch Go to http://www.amx.com//assets/manuals/TPI-
Drivers: PRO.Supported.Touch.Monitors.zip
Monitors and USB Touch Drivers Tested with the TPI-PRO-DVI (including the
most current listing of tested serial touch panel drivers).
Note: The listing of compatible touch monitors is subject to change due to
undocumented changes that 3rd-party touch monitor manufacturers make to
their products over time. Compatibility at a past date does not guarantee
compatibility in the future, and should be verif ied before deployment.
• USB Drivers: USB Touch drivers are automatically loaded when the USB Touch Monitor is
detected.
• Button Button assignments can be modified in TPD4 (not on the TPI-PRO-DVIs.)
Assignments:
• Button channel range: 1 - 4000 button push & feedback (per address port)
• Button variable text range: 1 - 4000 (per address port)
• Button states range: 1 - 256 (General Button; 1 = Off State, 2 = On State)
• Level range: 1 - 600 (Default level value 0-255, can be set up to 1-65535)
• Address port range: 1 - 100
• Communication/ Master communication and programming is available via an Ethernet
Programming: connection. There are several methods of TPI-PRO-DVI communication and
programming available, including DHCP, Static IP, URL, Listen, Auto, NPD
(UPD) and URL (UPD). Refer to the TPI-PRO-DVI Instruction Manual for details.
• Enclosure: Metal with black matte finish
• Operating/ • Operating Temperature: 0° C (32° F) to 40° C (104° F)
Storage
• Operating Humidity: 5% to 85% RH Non-Condensing
Environment:
• Storage Temperature: -10° C (14° F) to 70° C (158° F)
• Storage Humidity: 0% to 85% RH Non-Condensing
• Dimensions • 1.72" x 17.00" x 10.54"
(HWD): (4.37 cm x 43.18 cm x 26.77 cm)
• Weight: 8.25 lbs (3.74 kg)
• Certifications: • RoHS
• FCC (Class B)
• Included • 2-pin PWR connector (41-5025)
Accessories: • Assembly Kit - Four screws and washers (KA0001)
• Rack Ear brackets (60-0900-03)
• Other AMX • PSN6.5: Power Supply with 3.5 mm mini-Phoenix connector (FG423-41)
Equipment: • CC-DVI-5BNCM: DVI-to-5 BNC Male Adapter Cable (FG10-2170-08)
• CC-DVI-RCA3M: DVI-to-3 RCA Male Adapter Cable (FG10-2170-09)
• CC-DVI-SVID: DVI-to-S-Video Adapter Cable (FG10-2170-10)
• CC-DVIM-VGAF: DVI-to-VGA Adapter Cable (FG10-2170-13)

Before You Start

The TPI-PRO-DVI has been factory setup with specific touch panel pages. The first splash
screen that appears indicates the TPI is receiving power, loading firmware, and preparing to
display the default touch panel page.
When the panel is ready, the AMX Splash Screen is replaced by the initial Panel Setup page.
• Verify you are using the latest NetLinx Master firmware.
• Verify you are using the latest TPI-PRO-DVI firmware.
• Verify you are using the latest versions of NetLinx Studio and TPDesign4.
QUICK START GUIDE
to download the most recent List of Touch
• CE
• IEC/EN60950
