- Page 1 Soundweb London BLU-800/BLU-805/BLU-806/BLU-320/ BLU-325/BLU-326/BLU-160/BLU-120 Installation Guide 18-0553-E...
-
Page 2: Important Safety Instructions
IMPORTANT SAFETY INSTRUCTIONS WARNING FOR YOUR PROTECTION READ THE FOLLOWING: KEEP THESE INSTRUCTIONS HEED ALL WARNINGS FOLLOW ALL INSTRUCTIONS THE APPARATUS SHALL NOT bE ExPOSED TO DRIPPING OR SPLASHING The symbols shown above are internationally accepted symbols that warn of LIqUID AND NO ObjECT FILLED WITH LIqUID, SUCH AS vASES, SHALL potential hazards with electrical products. -
Page 3: Declaration Of Conformity
Signal Processing 8760 S. Sandy Parkway Sandy, Utah 84070, USA Date: April 17, 2013 European Contact: Your local BSS Audio Sales and Service Office or Harman Professional Inc. 8760 South Sandy Parkway Sandy, Utah 84070 USA Ph: (801) 566-8800 Fax: (801) 568-7583 U.K. -
Page 4: Regulatory Information
Regulatory Information An example of this equipment has been tested and found to comply with the following European and international Standards for Electromagnetic Compatibility and Electrical Safety: Radiated Emissions (EU): EN55022:2006 Immunity (EU): EN55024:1998 Electrical Safety (EU): IEC60065-01 + AMD2 Electrical safety (USA): UL60065-06 Important User Information... -

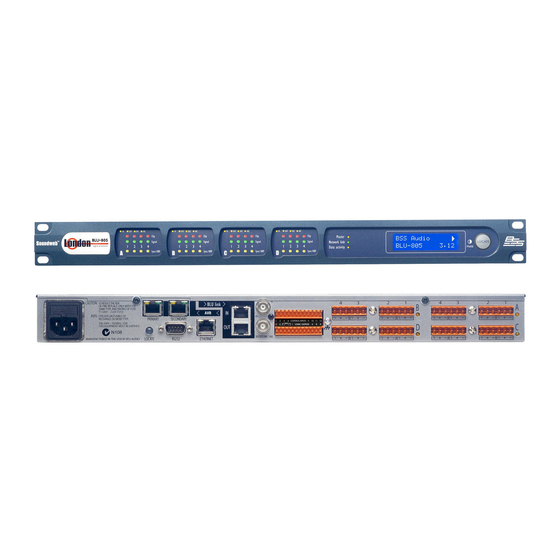

Page 5: Front Panel
Front Panel Input card monitoring Each channel has 3 LED indicators showing: • Clip Illuminated–Indicates clipping in the analogue domain for each channel of the fitted Input or Output card. The LED will illuminate at +18.5dB. • Signal Illuminated–The Signal LED will illuminate for each channel of a fitted Input or Output card when the signal reaches or exceeds the signal threshold of -20dB. -
Page 6: Rear Panel
Rear Panel CAUTION: TO REDUCE THE RISK BLU link OF FIRE REPLACE ONLY WITH THE SAME TYPE AND RATING OF FUSE T1.6AH - 250V FUSE CobraNet AVIS: UTILISER UN FUSIBLE DE PRIMARY SECONDARY RECHANGE DE MEME TYPE 100-240V ~ 50/60Hz, 55W THIS EQUIPMENT MUST BE EARTHED WORD CLOCK LOCATE... - Page 7 Locate Pressing the Locate switch on the rear of the unit will illuminate the Locate switch on the front and identify the device within London Architect. Similarly the switch will illuminate if the device is selected from within London Architect or from the Locate switch on the front panel. RS232 The serial port allows 3rd-party control equipment to control and monitor the Soundweb London.
-
Page 8: Control Inputs
I/O Card Positions A, B, C & D WORD CLOCK These connectors provide the balanced connections for the I/O card fitted in the four card slots in a Soundweb London device. The analogue connections are balanced, on Phoenix/Combicon connectors. A green LED next to the slot assignment letter A, B, C or D indicates that an Input card is fitted and an amber LED when an output card is fitted. -
Page 9: Logic Outputs
LOGIC OUTPUTS There are 6 logic outputs, also known as “General Purpose Outputs” or “GPO”. They are used to control LED’s or relays. The logic output can source 10mA at 5V DC, or sink 60mA up to 50V DC. A high sensitivity relay (such as a reed relay) can be driven by connecting multiple logic outputs in parallel. -
Page 10: Technical Specifications
Technical Specifications FRONT PANEL LED INDICATORS Per Input: Signal Present, CLIP, SYNC/48V, I/O card type [IN, OUT, DIG, AEC[BLU-800, 805, 320, 325, 160, 120]] Other: LCD Display, Conductor active, Net Link active, Data Activity ANALOGUE INPUTS Up to 16 electronically balanced on Phoenix/Combicon removable screw connectors Mic/Line Inputs: Nominal gain 0dB, electronically switchable up to +48dB, in +6dB steps Input impedance:... - Page 11 THD: <0.01% [20Hz to 20kHz, +10dBu output] Dynamic Range: 108dB typ. [22Hz to 22kHz unweighted] Crosstalk: <-75dB D/A Latency: 28/Fs [0.58ms@48k, 0.29ms@96k] DIGITAL OUTPUTS Up to 16 AES/EBU or S/PDIF on Phoenix/Combicon removable screw connectors Output Impedance: 110 ohm [AES/EBU], 75 ohm [S/PDIF] Sample Rate: 48kHz or 96kHz Sample Rate conversion:...
-
Page 12: Printed In The Usa
BSS Audio incorporates high quality mechanical fans in some products. All mechanical fans have a limited life expectancy. We recommend annual inspection of fans for dust occlusion and excessive noise. Fan assemblies should be replaced after six to ten years of use. Environmental factors such as elevated temperature, dust, and smoke can adversely affect fan life.
