Summary of Contents for Harman AMX AXB-232++

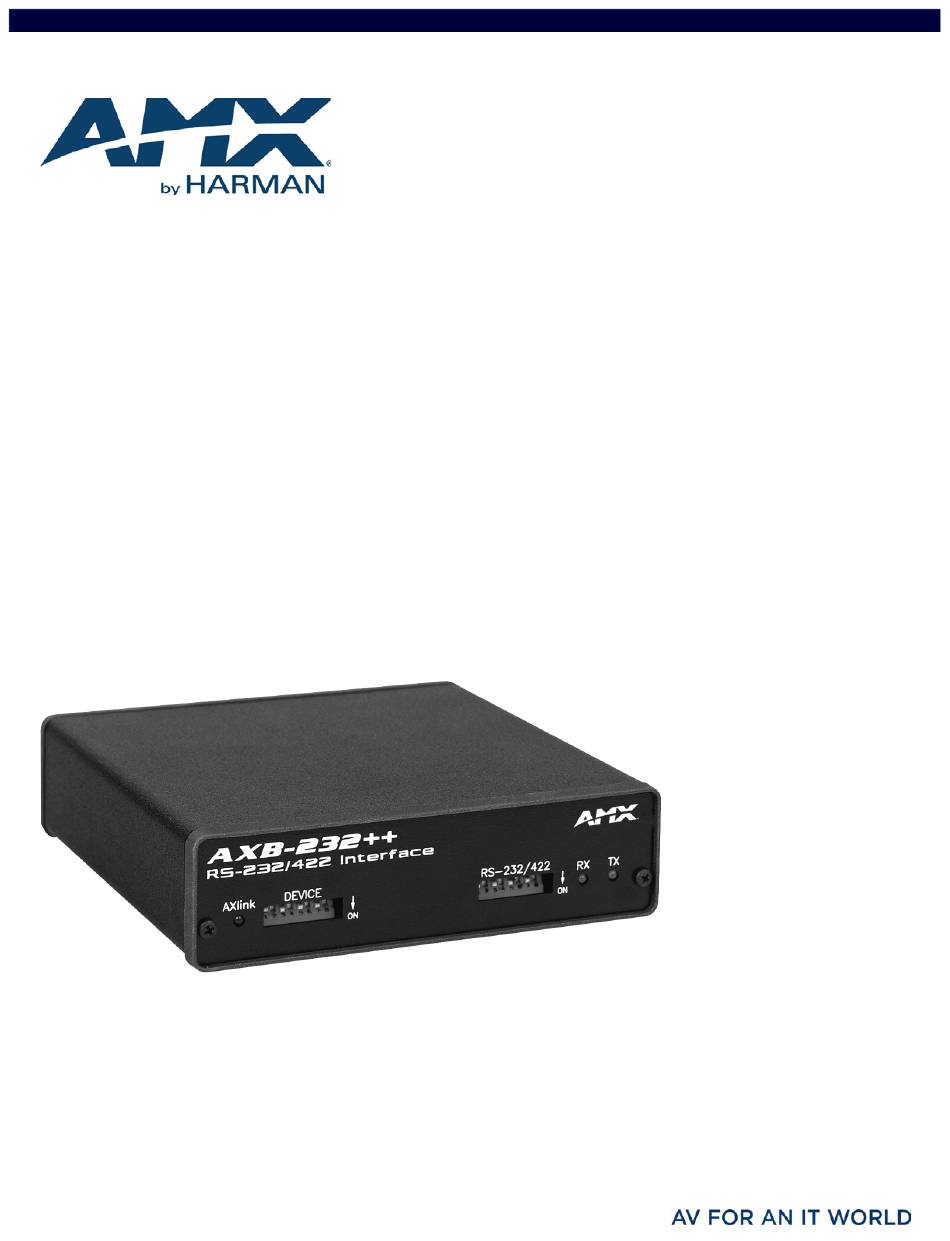

- Page 1 IN STR U CT IO N MAN U AL A X B - 2 3 2 + + RS-232/422/485 INTERFACE...
- Page 2 IMPORTANT SAFETY INSTRUCTIONS READ these instructions. KEEP these instructions. HEED all warnings. FOLLOW all instructions. DO NOT use this apparatus near water. CLEAN ONLY with dry cloth. DO NOT block any ventilation openings. Install in accordance with the manufacturer's instructions. DO NOT install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat.
-
Page 3: Table Of Contents
Table of Contents Table of Contents AXB-232++ ....................... 5 Overview ..........................5 Specifications ........................5 Installation and Wiring ..................7 Overview ........................... 7 Setting the Internal Jumpers ................... 7 Setting Jumper JP4 To Terminate RS-422 Input With 100 ohms ............7 Setting Jumper JP5 To Set the RS-422 Port For RS-485 Use .............. - Page 4 Table of Contents Send_String Escape Sequences ..................14 27,17,<time> ..................................14 27,18,1 ....................................14 27,18,0 ....................................14 27,19,<time> ..................................14 27,20,0 ....................................14 27,20,1 ....................................14 AXB-232++ Program Statements .................. 15 Xmodem Timing Commands ..................15 AxLink Master Statements ..................... 15 Reserved Channels......................
-
Page 5: Axb-232

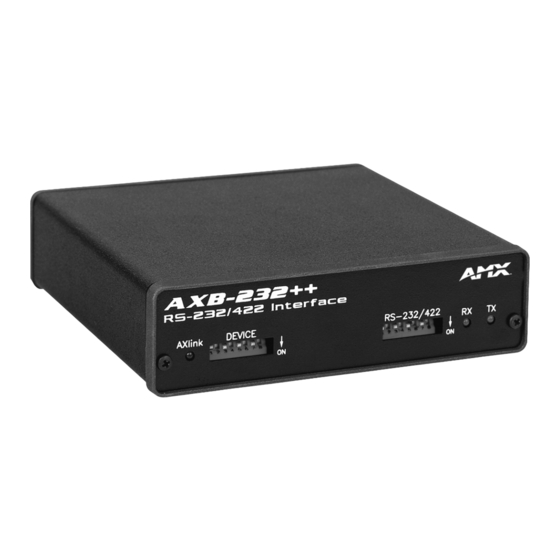

AXB-232++ AXB-232++ Overview The AXB-232++ RS-232/422/485 Interface (FG5761-10) is an AxLink bus controller that provides remote control for devices that require a variety of control protocols. The AXB-232++ extends RS-232, RS-422, or RS-485 control to remote sources over the 4- wire AxLink data/power bus. - Page 6 AXB-232++ Specif ications (Cont.) Rear Panel Hardware handshaking An RTS/CTS data connector that can be wired for hardware handshaking if called for by the controlled device connector (4-pin male). RS422/232 connector A captive-wire connector wired for RS-422/232 data control (8-pin male). AxLink connector Receives power and data via the AxLink bus and AxLink system controller (4-pin male).
-
Page 7: Installation And Wiring
Installation and Wiring Installation and Wiring Overview The AXB-232++ can be used as an independent RS-232/422/485-controlled interface by setting the internal jumpers. Configure the communication parameters using the DIP switches on the front panel. Setting the Internal Jumpers Internal jumper JP4 Internal jumper JP5 front 1998... -
Page 8: Setting The Dip Switches
Installation and Wiring Setting the DIP Switches NOTE: Use the DIPSwitch 2.0 application available for free download from AMX to quickly f igure out DIP Switch settings for all types of DIP Switches. Setting the DEVICE DIP switch Set the device number on DEVICE DIP switch, located on the front of the AXB-232++. The device can be 1 of the 255 devices in an Axcess control system. -
Page 9: Wiring Devices To The Axb-232
Installation and Wiring Wiring Devices to the AXB-232++ Preparing Captive Wires To connect the wiring into a captive-wire connector: Strip 1/4 inch off the wire insulation for all four wires. Tin 2/3 of the exposed wire. Insert each wire into the appropriate captive-wire connector up to the insulation. Tighten the captive screws to secure the fit in the connector. -
Page 10: Using Hardware Handshaking
Installation and Wiring Using Hardware Handshaking When the controlled device requires hardware handshaking, connect the wiring as shown in FIG. 6. AXB-232++ Device Hardware handshaking wiring FIG. 6 Using RS-422 When communicating via RS-422, connect the wiring as shown in FIG. 7. +12V TX - RX -... -
Page 11: Rack-Mounting The Axb-232++ (Optional)
Installation and Wiring Rack-Mounting the AXB-232++ (Optional) To rack-mount the AXB-232++ into the optional AC-RK Accessory Rack Kit: Remove any connected power, and AxLink and RS-232 connectors from the rear panel. Remove the 2 screws on the front panel of the AXB-232++, and remove the front panel as well as the space bracket behind the panel. -
Page 12: Programming
Programming Programming Send_Commands The AXB-232++ supports the same command set as the AXC-232. The following table lists the AXB-232++ Send_Commands. AXB-232++ Send_Commands B9MOFF Sets data bit mode to normal with DIP switch settings (default). Syntax: 'B9MOFF' Example: SEND_COMMAND AXB232,'B9MOFF' Sets the data bit mode to normal. B9MON Enables a special mode to override DIP switch settings. -
Page 13: Ctspshf
Programming AXB-232++ Send_Commands (Cont.) CTSPSHF Disables the 'CTSPSH' command. Syntax: 'CTSPSHF' Example: SEND_COMMAND AXB232,'CTSPSHF' EOFF Disables the 'EON ' command (default). Syntax: 'EOFF' Example: SEND_COMMAND AXB232,'EOFF' Forces the AXB-232++ to ignore transmitted characters on its receiver. When using RS-485, the TX and RX are tied together. Syntax: 'EON' Example:... -
Page 14: Axcess Program Characteristics
Programming Axcess Program Characteristics The AXB-232++ is capable of running Axcess programs. It handles string processing, relieving AxLink and the Master of the processing times. Send_String Escape Sequences The AXB-232++ does not regard certain three-character combinations within a Send_String program as literal characters, but as commands. - Page 15 Programming AXB-232++ Program Statements The Axcess program of the AXB-232++ communicates with the master as Device 0. Its device communicates with the RS232/422 Input/Output (I/O) of the AXB-232++ as Device 1. The following table lists AXB-232++ statements. AXB-232++ Program Statements Statement Function Places strings that come from the Master into buffer.
- Page 16 Programming AXB-232++ Program Statements (Cont.) Turns on a channel or variable for a certain amount of time. Once the time elapses, the PULSE channel or variable is turned off. The Pulse time remains the same value until it is changed within the program.
- Page 17 © 2016 Harman. All rights reserved. NetLinx, AMX, AV FOR AN IT WORLD, HARMAN, and their respective logos are registered trademarks of HARMAN. Last Revised: Oracle, Java and any other company or brand name referenced may be trademarks/registered trademarks of their respective companies.
