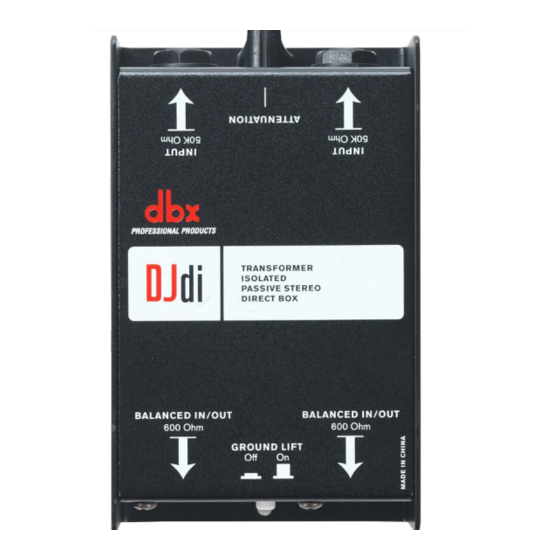

DJdi DIRECT BOX
2-CHANNEL PASSIVE DIRECT INJECTION BOX
OWNER'S MANUAL

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the dbx DJdi and is the answer not in the manual?

Questions and answers

Related Manuals for Harman dbx DJdi

Summary of Contents for Harman dbx DJdi

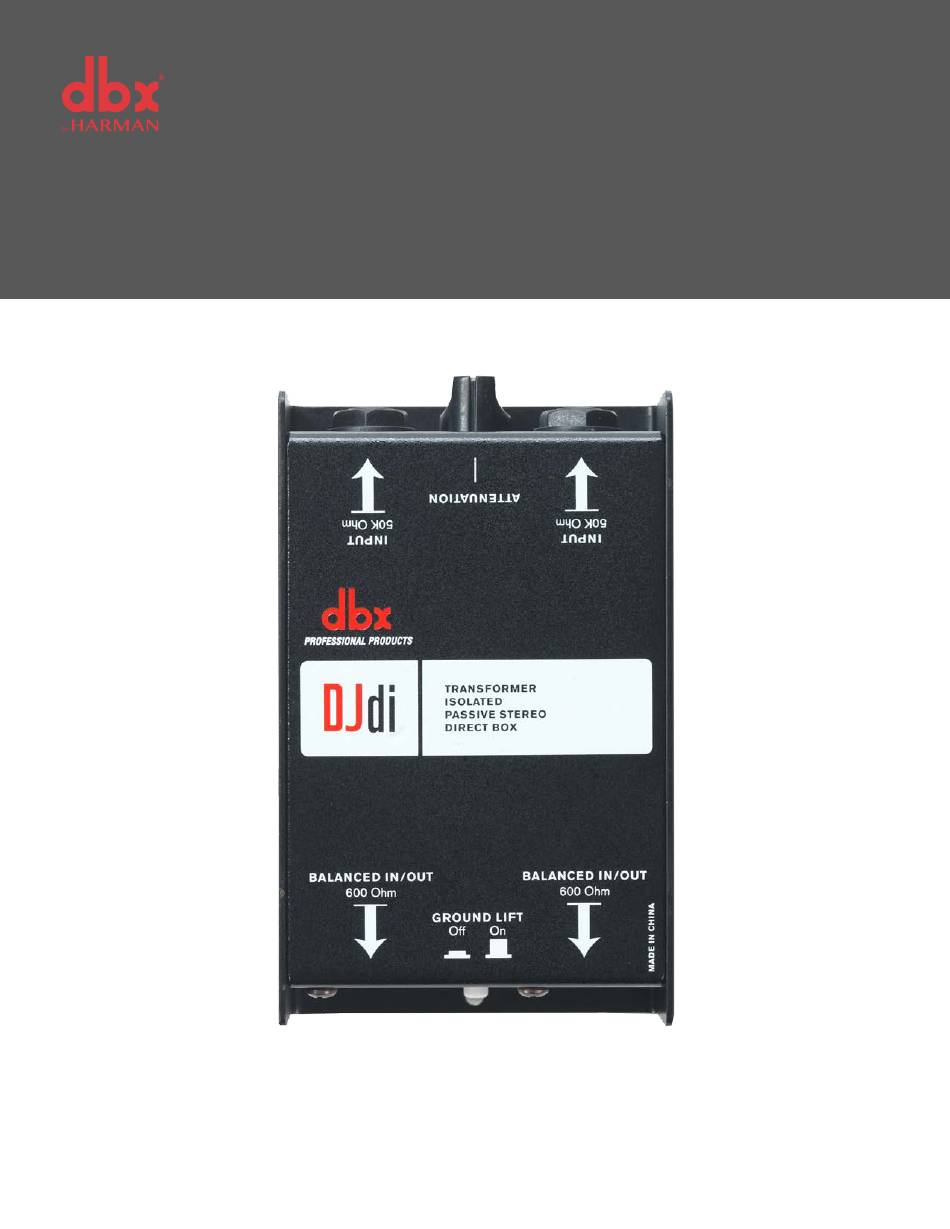

  • Page 1 DJdi DIRECT BOX 2-CHANNEL PASSIVE DIRECT INJECTION BOX OWNER’S MANUAL...
  • Page 2 DJdi DIRECT BOX Warranty 1. Please register your product online at www.dbxpro.com. Proof-of-purchase is considered to be the responsibility of the consumer. A copy of the original purchase receipt must be provided for any warranty service. 2. dbx warrants this product, when purchased new from an authorized U.S. dbx dealer and used solely within the U.S., to be free from defects in materials and workmanship under normal use and service.
  • Page 3 DJdi DIRECT BOX Table of Contents Overview �������������������������������������������������������������������������������� 2 Introduction ������������������������������������������������������������������������������������2 Features ������������������������������������������������������������������������������������������2 Front Panel ���������������������������������������������������������������������������� 3 Rear Panel ����������������������������������������������������������������������������� 3 Using a Direct Box �������������������������������������������������������������� 4 Operating the DJdi �������������������������������������������������������������� 4 Direct Insertion of an Instrument into a PA System � 4 Converting the Output of Unbalanced Devices ����������...
  • Page 4 Introduction Congratulations on your purchase of the dbx DJdi Direct Box. The 2-channel passive DJdi is designed to be used as a standard tool for many audio applications. Offering two channels, the DJdi easily solves the problem of converting unbalanced signals into balanced output suitable for use with mixers, PAs, recording consoles and more.
  • Page 5 DJdi DIRECT BOX Front Panel INPUTS - Connect your signal sources to these 1/4” unbalanced TS connectors 1� VARIABLE INPUT ATTENUATOR CONTROL – Use this control (if necessary) to attenuate high signal level sources. 2� Rear Panel BALANCED OUTPUTS - Connect these balanced XLR connectors to an XLR input on your mixer 1�...
  • Page 6 DJdi DIRECT BOX Using a Direct Box First, a direct box converts the audio signal originating from an unbalanced device (like a guitar) to a balanced audio signal for transmission over a longer distance than is recommended for an unbalanced signal to travel. As audio industry people know, the advantage of a balanced signal is realized at the receiving end (audio input) of the balanced cable, typically in the form of a mic pre-amp input on a mixing console.
  • Page 7 DJdi DIRECT BOX Converting the Output of Unbalanced Devices The DJdi can be quite useful on stage, or in a studio when connecting unbalanced devices, particularly keyboards. The low output signal levels of many keyboards can benefit greatly by connecting their unbalanced outputs to the DJdi. By doing so, the signal can then be sent cleanly for long distances and utilize the low noise common mode rejection provided by the DJdi’s balanced low-level output.
