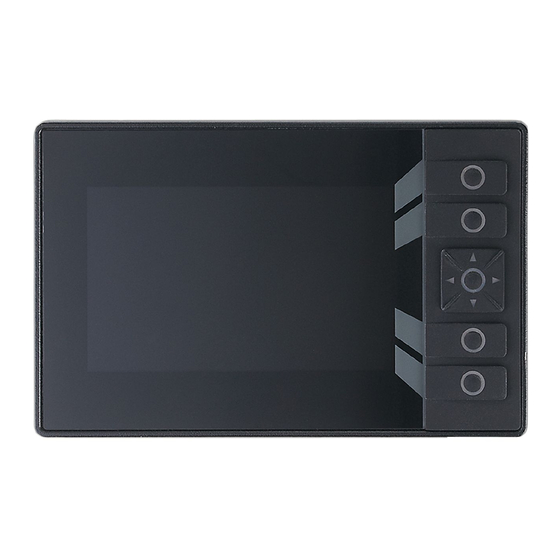

- Page 1 Operating instructions Process and dialogue module ecomatDisplay CR1151...
-
Page 2: Table Of Contents
CR1151 Contents Preliminary note ............. Symbols used . -
Page 3: Preliminary Note
CR1151 1 Preliminary note You will find instructions, technical data, approvals and further information using the QR code on the unit / packaging or at www.ifm.com. 1.1 Symbols used Requirement Instructions Reaction, result [...] Designation of keys, buttons or indications Cross-reference Important note Non-compliance may result in malfunction or interference. -
Page 4: Safety Instructions
CR1151 2 Safety instructions • The unit described is a subcomponent for integration into a system. – The system architect is responsible for the safety of the system. – The system architect undertakes to perform a risk assessment and to create documentation in accordance with legal and normative requirements to be provided to the operator and user of the system. -
Page 5: Intended Use
If required, take appropriate EMC screening measures. The unit is not approved for safety-related tasks in the field of operator protection. 3.1 Application example Fig. 1: Networking of 2 analogue cameras with an ecomatDisplay ecomatDisplay CR1151 analogue cameras (e.g. 2 x O2M200) 3.2 Properties •... - Page 6 CR1151 Feature CR1151 Freely programmable, backlit buttons Navigation keys with button Ethernet interfaces CAN interfaces ifm plug&play (CAN based) USB 2.0 interfaces Analogue video inputs Digital inputs B Digital outputs 2.5 A Line In Speaker output Headphone output Controller Dual Core with GPU, 800 MHz...
-
Page 7: Installation
EC0730, installation kit for panel mounting • EC1410...EC1414, RAM® mount system for surface mounting More information about available accessories at www.ifm.com 4.2 General installation instructions The following applies to all types of mounting: The responsibility for the compliance with the requirements concerning mounting of the device in the application with regard to shock, vibration, acceleration and weight lies with the system architect. -
Page 8: Light Sensor And Status Led
CR1151 38,1 ® 4 x M5 threaded hole for RAM mount system / for the fixing profile of the installation kit pressure compensation element ATTENTION The device is equipped with a pressure compensation element. Sealing or closing the corresponding ventilation ducts with elastic materials may damage the device. u Do not use any sealing materials in the area around the pressure compensation elements. -
Page 9: Panel Mounting / Control Cabinet Installation
CR1151 4.3 Panel mounting / control cabinet installation 4.3.1 Safety instructions for panel mounting / control cabinet installation The specifications for the operating temperature apply in front of and behind the installation surface. The dimensions for the control panel cut-out are a basic prerequisite for the requirements concerning electrical protection, fire protection and protection rating of the device / system. -
Page 10: Installation With Installation Kit
CR1151 4.3.2 Installation with installation kit The installation kit enables horizontal, vertical or overhead mounting of the device in a panel cut-out. This type of mounting is suited for materials with a thickness from 1 to 10 mm. Longer set screws have to be used for material thicknesses >10 mm. They are not supplied with the mounting accessories. -
Page 11: Surface Mounting With Ram® Mount System
CR1151 u Screw the fixing profile to the back of the device. ±0,5 Tightening torque of the M5 hexagon nuts: 5 ATTENTION Contact corrosion between the mounting screws and the housing. w Damage to the device u Do not use copper or nickel-plated materials for the bolting elements. u Use zinc-plated screws. -
Page 12: Mounting Steps
2: mounting plate with ball head ® You will find more information about the available RAM mount components at: www.ifm.com 4.4.1 Mounting steps u Screw the mounting plate to the back of the device. Usable M5 thread depth: ≤ 8 mm ±0.5... -
Page 13: Electrical Connection
5.1 Wiring Wiring: Technical data: www.ifm.com The terminals may only be supplied with the signals specified in the technical data or on the device label Unconnected pins must not be connected to the cable harness and its individual cores must be sealed. -
Page 14: General Wiring Information
Use twisted-pair cables for the CAN / IFM connection. The CAN bus is internally protected against short circuit to VBB and GND. For CAN / IFM cables ≥ 30 m, ensure appropriate protection against surge (e. g. shielded cables). -
Page 15: Operating Voltage And Circuit Breakers
CR1151 ATTENTION The short-circuit / reverse polarity protection of the device applies to the operating voltage connections. A short circuit between operating voltage VBB and USB / Audio / Video might cause damage to the device. u Lay supply and signal cables away from the device using the shortest possible route. u Provide all outgoing cables with a strain relief 200 mm behind the cable entry. -
Page 16: Ethernet Interface
75 ohms impedance. 5.9 USB interfaces Wiring: Technical data: www.ifm.com This USB interface is connected to a USB connector in the control panel or in the dashboard. It is used for the connection of USB 2.0 devices. -
Page 17: Short-Circuit Protection
CR1151 ≤ 1,8 m Fig. 14: USB connection via M12 connector dialogue module USB connector, for example, in the control panel or in the dashboard USB device A: Permanent connection: dialogue module – USB connector u Use a prewired cable. (M12 connector, B-coded on USB socket, type A, watertight, cable length 1.5 m, wires twisted and screened) u If self-assembling cables, please only use cables according to USB 2.0 specification. -
Page 18: Set-Up
In addition to the CODESYS programming system, the following documents are required for programming and set-up of the device: • Programming manual ecomatDisplay Manuals as well as online help CODESYS and ecomatDisplay are available for download on the internet: www.ifm.com... -
Page 19: Function Of The Internal Temperature Sensor
Current consumption (display illumination etc.) The device heats up considerably under demanding operating conditions. The device temperature must not exceed the maximum permissible value (Technical data: www.ifm.com). The value provided by the internal temperature sensor can e.g. be used for the following actions: •... -
Page 20: Maintenance, Repair And Disposal
Remove the battery and replace it with a new one. Observe the polarity: positive side up Battery type (Technical data: www.ifm.com) u Check sealing areas and sealing for soiling. Clean them, if necessary. u Screw the service cover with 3.0 Nm to restore the protection rating (width across flats 13 or ¼“). -
Page 21: Cleaning The Housing Surface
CR1151 • Chemicals dissolving plastics such as methylated spirit, benzine, thinner, alcohol, acetone or ammonia. • paper towels, crepe paper etc. • abrasive cleaners etc. • polish or wax u Clean the device from dirt using a soft, chemically untreated and dry cloth. u In case of severe soiling, use a damp cloth.
