Electrorad Digi-Line Installation/Operating page 9

Electrorad Digi-Line
16

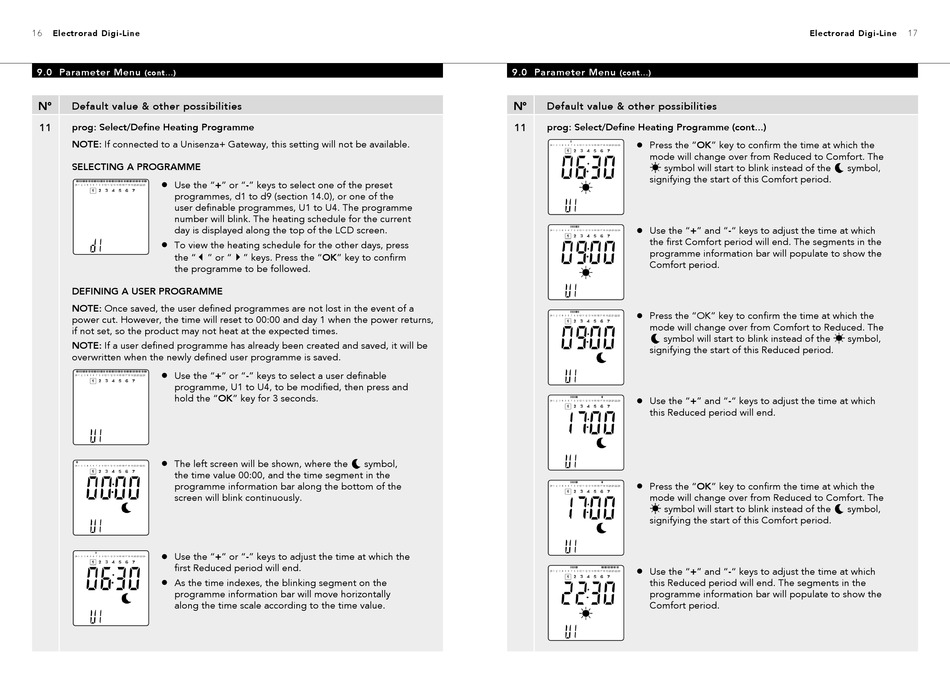

9.0 Parameter Menu
(cont...)
N°
Default value & other possibilities
11 prog: Select/Define Heating Programme
NOTE: If connected to a Unisenza+ Gateway, this setting will not be available.
SELECTING A PROGRAMME
Use the "+" or "-" keys to select one of the preset
l
programmes, d1 to d9 (section 14.0), or one of the
user definable programmes, U1 to U4. The programme
number will blink. The heating schedule for the current
day is displayed along the top of the LCD screen.
To view the heating schedule for the other days, press
l
the " " or "

the programme to be followed.
DEFINING A USER PROGRAMME
NOTE: Once saved, the user defined programmes are not lost in the event of a
power cut. However, the time will reset to 00:00 and day 1 when the power returns,
if not set, so the product may not heat at the expected times.
NOTE: If a user defined programme has already been created and saved, it will be
overwritten when the newly defined user programme is saved.
Use the "+" or "-" keys to select a user definable
l
programme, U1 to U4, to be modified, then press and
hold the "OK" key for 3 seconds.
The left screen will be shown, where the
l
the time value 00:00, and the time segment in the
programme information bar along the bottom of the
screen will blink continuously.
Use the "+" or "-" keys to adjust the time at which the
l
first Reduced period will end.
As the time indexes, the blinking segment on the
l
programme information bar will move horizontally
along the time scale according to the time value.
" keys. Press the "OK" key to confirm
4
symbol,
9.0 Parameter Menu
(cont...)
N°
Default value & other possibilities
11 prog: Select/Define Heating Programme (cont...)
Press the "OK" key to confirm the time at which the
l
mode will change over from Reduced to Comfort. The
symbol will start to blink instead of the
signifying the start of this Comfort period.
Use the "+" and "-" keys to adjust the time at which
l
the first Comfort period will end. The segments in the
programme information bar will populate to show the
Comfort period.
Press the "OK" key to confirm the time at which the
l
mode will change over from Comfort to Reduced. The
symbol will start to blink instead of the
signifying the start of this Reduced period.
Use the "+" and "-" keys to adjust the time at which
l
this Reduced period will end.
Press the "OK" key to confirm the time at which the
l
mode will change over from Reduced to Comfort. The
symbol will start to blink instead of the
signifying the start of this Comfort period.
Use the "+" and "-" keys to adjust the time at which
l
this Reduced period will end. The segments in the
programme information bar will populate to show the
Comfort period.
Electrorad Digi-Line
17
symbol,
symbol,
symbol,
