Electrorad Digi-Line
12

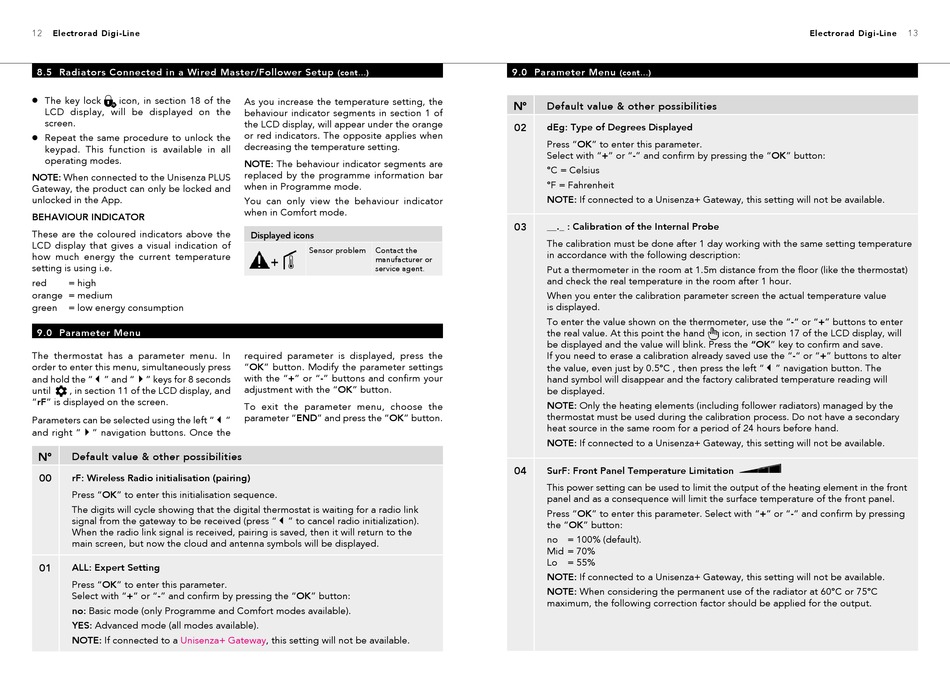

8.5 Radiators Connected in a Wired Master/Follower Setup
The key lock icon, in section 18 of the
l
LCD display, will be displayed on the
screen.
Repeat the same procedure to unlock the
l
keypad. This function is available in all
operating modes.
NOTE: When connected to the Unisenza PLUS
Gateway, the product can only be locked and
unlocked in the App.
BEHAVIOUR INDICATOR
These are the coloured indicators above the
LCD display that gives a visual indication of
how much energy the current temperature
setting is using i.e.
red = high
orange = medium
green = low energy consumption

9.0 Parameter Menu

The thermostat has a parameter menu. In
order to enter this menu, simultaneously press
and hold the " " and " " keys for 8 seconds
 4
until , in section 11 of the LCD display, and
"rF" is displayed on the screen.
Parameters can be selected using the left "
and right " " navigation buttons. Once the
4
N° Default value & other possibilities
00 rF: Wireless Radio initialisation (pairing)
Press "OK" to enter this initialisation sequence.
The digits will cycle showing that the digital thermostat is waiting for a radio link
signal from the gateway to be received (press "
When the radio link signal is received, pairing is saved, then it will return to the
main screen, but now the cloud and antenna symbols will be displayed.
01 ALL: Expert Setting
Press "OK" to enter this parameter.
Select with "+" or "-" and confirm by pressing the "OK" button:
no: Basic mode (only Programme and Comfort modes available).
YES: Advanced mode (all modes available).
NOTE: If connected to a Unisenza+
(cont...)
As you increase the temperature setting, the
behaviour indicator segments in section 1 of
the LCD display, will appear under the orange
or red indicators. The opposite applies when
decreasing the temperature setting.
NOTE: The behaviour indicator segments are
replaced by the programme information bar
when in Programme mode.
You can only view the behaviour indicator
when in Comfort mode.
Displayed icons
Sensor problem Contact the
+
manufacturer or
service agent.
required parameter is displayed, press the
"OK" button. Modify the parameter settings
with the "+" or "-" buttons and confirm your
adjustment with the "OK" button.
To exit the parameter menu, choose the
parameter "END" and press the "OK" button.
"

" to cancel radio initialization).

Gateway, this setting will not be available.
9.0 Parameter Menu
(cont...)
N°
Default value & other possibilities
02 dEg: Type of Degrees Displayed
Press "OK" to enter this parameter.
Select with "+" or "-" and confirm by pressing the "OK" button:
°C = Celsius
°F = Fahrenheit
NOTE: If connected to a Unisenza+ Gateway, this setting will not be available.
__._ : Calibration of the Internal Probe
03
The calibration must be done after 1 day working with the same setting temperature
in accordance with the following description:
Put a thermometer in the room at 1.5m distance from the floor (like the thermostat)
and check the real temperature in the room after 1 hour.
When you enter the calibration parameter screen the actual temperature value
is displayed.
To enter the value shown on the thermometer, use the "-" or "+" buttons to enter
the real value. At this point the hand
be displayed and the value will blink. Press the "OK" key to confirm and save.
If you need to erase a calibration already saved use the "-" or "+" buttons to alter
the value, even just by 0.5°C , then press the left "
hand symbol will disappear and the factory calibrated temperature reading will
be displayed.
NOTE: Only the heating elements (including follower radiators) managed by the
thermostat must be used during the calibration process. Do not have a secondary
heat source in the same room for a period of 24 hours before hand.
NOTE: If connected to a Unisenza+ Gateway, this setting will not be available.
04 SurF: Front Panel Temperature Limitation
This power setting can be used to limit the output of the heating element in the front
panel and as a consequence will limit the surface temperature of the front panel.
Press "OK" to enter this parameter. Select with "+" or "-" and confirm by pressing
the "OK" button:
no = 100% (default).
Mid = 70%
Lo = 55%
NOTE: If connected to a Unisenza+ Gateway, this setting will not be available.
NOTE: When considering the permanent use of the radiator at 60°C or 75°C
maximum, the following correction factor should be applied for the output.
Electrorad Digi-Line
icon, in section 17 of the LCD display, will
" navigation button. The

13
