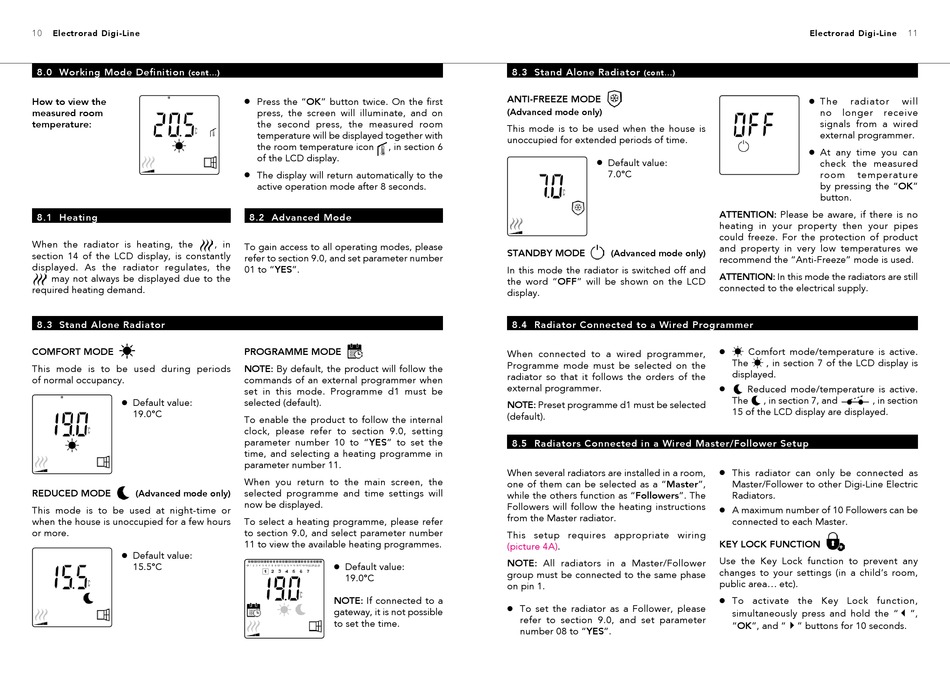

8.0 Working Mode Definition
(cont...)
How to view the
measured room
temperature:

8.1 Heating

When the radiator is heating, the
section 14 of the LCD display, is constantly
displayed. As the radiator regulates, the
may not always be displayed due to the
required heating demand.

8.3 Stand Alone Radiator

COMFORT MODE
This mode is to be used during periods
of normal occupancy.
Default value:
l
19.0°C
REDUCED MODE
(Advanced mode only)
This mode is to be used at night-time or
when the house is unoccupied for a few hours
or more.
Default value:
l
15.5°C
Press the "OK" button twice. On the first
l
press, the screen will illuminate, and on
the second press, the measured room
temperature will be displayed together with
the room temperature icon , in section 6
of the LCD display.
The display will return automatically to the
l
active operation mode after 8 seconds.

8.2 Advanced Mode

, in
To gain access to all operating modes, please
refer to section 9.0, and set parameter number
01 to "YES".
PROGRAMME MODE
NOTE: By default, the product will follow the
commands of an external programmer when
set in this mode. Programme d1 must be
selected (default).
To enable the product to follow the internal
clock, please refer to section 9.0, setting
parameter number 10 to "YES" to set the
time, and selecting a heating programme in
parameter number 11.
When you return to the main screen, the
selected programme and time settings will
now be displayed.
To select a heating programme, please refer
to section 9.0, and select parameter number
11 to view the available heating programmes.
Default value:
l
19.0°C
NOTE: If connected to a
gateway, it is not possible
to set the time.
8.3 Stand Alone Radiator
(cont...)
ANTI-FREEZE MODE
(Advanced mode only)
This mode is to be used when the house is
unoccupied for extended periods of time.
Default value:
l
7.0°C
STANDBY MODE
(Advanced mode only)
In this mode the radiator is switched off and
the word "OFF" will be shown on the LCD
display.

8.4 Radiator Connected to a Wired Programmer

When connected to a wired programmer,
Programme mode must be selected on the
radiator so that it follows the orders of the
external programmer.
NOTE: Preset programme d1 must be selected
(default).

8.5 Radiators Connected in a Wired Master/Follower Setup

When several radiators are installed in a room,
one of them can be selected as a "Master",
while the others function as "Followers". The
Followers will follow the heating instructions
from the Master radiator.
This setup requires appropriate wiring
(picture 4A).
NOTE: All radiators in a Master/Follower
group must be connected to the same phase
on pin 1.
To set the radiator as a Follower, please
l
refer to section 9.0, and set parameter
number 08 to "YES".
Electrorad Digi-Line
The radiator
l
no longer receive
signals from a wired
external programmer.
At any time you can
l
check the measured
room temperature
by pressing the "OK"
button.
ATTENTION: Please be aware, if there is no
heating in your property then your pipes
could freeze. For the protection of product
and property in very low temperatures we
recommend the "Anti-Freeze" mode is used.
ATTENTION: In this mode the radiators are still
connected to the electrical supply.
Comfort mode/temperature is active.
l
The , in section 7 of the LCD display is
displayed.
Reduced mode/temperature is active.
l
The , in section 7, and , in section
15 of the LCD display are displayed.
This radiator can only be connected as
l
Master/Follower to other Digi-Line Electric
Radiators.
A maximum number of 10 Followers can be
l
connected to each Master.
KEY LOCK FUNCTION
Use the Key Lock function to prevent any
changes to your settings (in a child's room,
public area... etc).
To activate the Key Lock function,
l
simultaneously press and hold the "

"OK", and " " buttons for 10 seconds.
