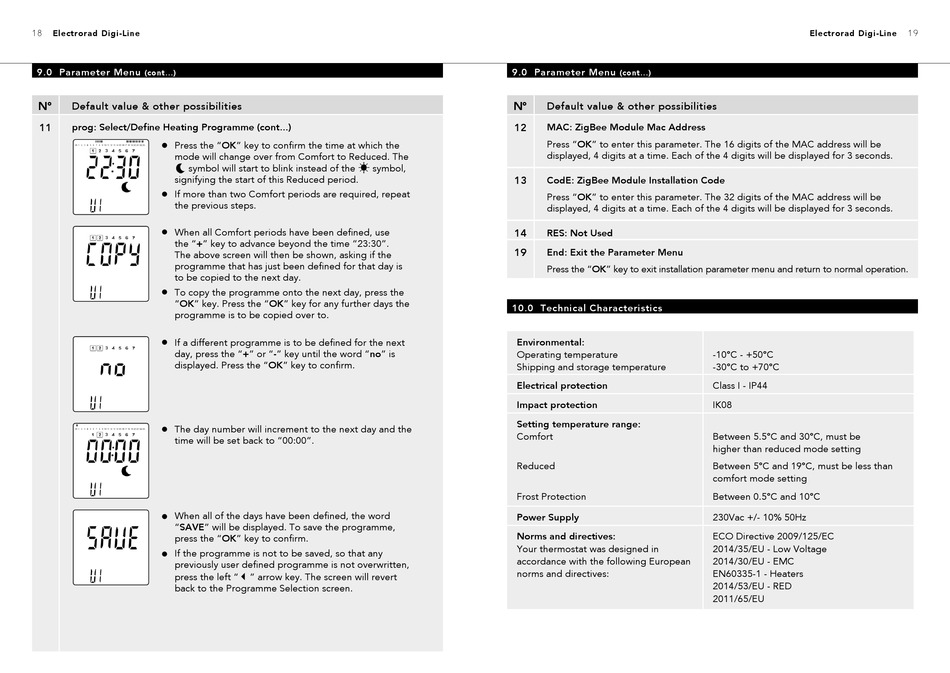

9.0 Parameter Menu
(cont...)
N°
Default value & other possibilities
11 prog: Select/Define Heating Programme (cont...)
Press the "OK" key to confirm the time at which the
l
mode will change over from Comfort to Reduced. The
symbol will start to blink instead of the
signifying the start of this Reduced period.
If more than two Comfort periods are required, repeat
l
the previous steps.
When all Comfort periods have been defined, use
l
the "+" key to advance beyond the time "23:30".
The above screen will then be shown, asking if the
programme that has just been defined for that day is
to be copied to the next day.
To copy the programme onto the next day, press the
l
"OK" key. Press the "OK" key for any further days the
programme is to be copied over to.
If a different programme is to be defined for the next
l
day, press the "+" or "-" key until the word "no" is
displayed. Press the "OK" key to confirm.
The day number will increment to the next day and the
l
time will be set back to "00:00".
When all of the days have been defined, the word
l
"SAVE" will be displayed. To save the programme,
press the "OK" key to confirm.
If the programme is not to be saved, so that any
l
previously user defined programme is not overwritten,
press the left "
back to the Programme Selection screen.
symbol,
" arrow key. The screen will revert

9.0 Parameter Menu
(cont...)
N°
Default value & other possibilities
12 MAC: ZigBee Module Mac Address
Press "OK" to enter this parameter. The 16 digits of the MAC address will be
displayed, 4 digits at a time. Each of the 4 digits will be displayed for 3 seconds.
13 CodE: ZigBee Module Installation Code
Press "OK" to enter this parameter. The 32 digits of the MAC address will be
displayed, 4 digits at a time. Each of the 4 digits will be displayed for 3 seconds.
14 RES: Not Used
19 End: Exit the Parameter Menu
Press the "OK" key to exit installation parameter menu and return to normal operation.

10.0 Technical Characteristics

Environmental:
Operating temperature
Shipping and storage temperature
Electrical protection
Impact protection
Setting temperature range:
Comfort
Reduced
Frost Protection
Power Supply
Norms and directives:
Your thermostat was designed in
accordance with the following European
norms and directives:
Electrorad Digi-Line
-10°C - +50°C
-30°C to +70°C
Class I - IP44
IK08
Between 5.5°C and 30°C, must be
higher than reduced mode setting
Between 5°C and 19°C, must be less than
comfort mode setting
Between 0.5°C and 10°C
230Vac +/- 10% 50Hz
ECO Directive 2009/125/EC
2014/35/EU - Low Voltage
2014/30/EU - EMC
EN60335-1 - Heaters
2014/53/EU - RED
2011/65/EU
