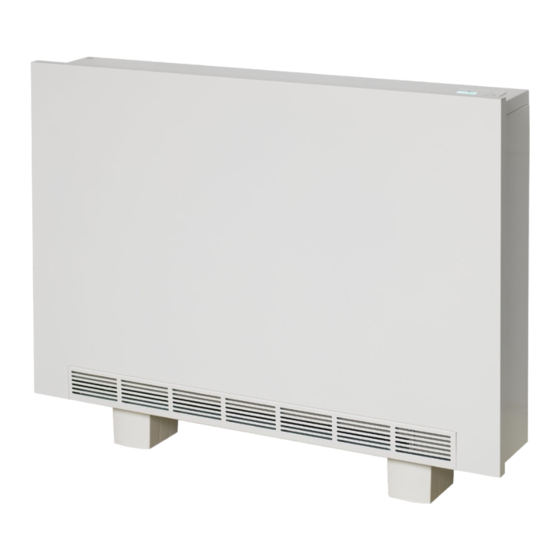

- Page 1 HIGH HEAT RETENTION STORAGE HEATER INSTALLATION MANUAL AND INSTRUCTIONS FOR USE Smart charging WiFi control TFT display ACU006113V01...
-
Page 2: Important Safety Notes
Manual de instalación e instrucciones de uso A. PRESENTATION First of all, thank you for purchasing our products. Before proceeding with its installation, please read all the instructions and recommendations detailed in this instruction manual, as the manufac- turer will not be responsible for any breakdown or damage caused by non-compliance. Once the storage heater is installed, keep this manual in a safe place so that it can be consulted at any time. - Page 3 Manual de instalación e instrucciones de uso Cleaning and maintenance to be carried out by the user should not be ca- rried out by children without supervision. Caution: some parts of this product can become very hot and cause burns. Particular attention should be paid when children and vulnera- ble people are present.
- Page 4 Manual de instalación e instrucciones de uso If the power cable is damaged, it can only be replaced by an authorised person, in order to avoid risks. If during the installation and assembly of the appliance, a part of the thermal insulation or resistance shows damage or deterioration that impairs the safety of the appliance, it must be replaced by an identical part.
-
Page 5: Installation
Manual de instalación e instrucciones de uso D. INSTALLATION BEFORE INSTALLATION The installation and start-up of this appliance is very simple, however, you must read very carefully all the instructions and recommendations that are detailed in this instruction manual, since the manufacturer will not be responsible for damage caused by non-compliance. - Page 6 Manual de instalación e instrucciones de uso ASSEMBLY INSTRUCTIONS • For ease of handling, the DS brick and kit are supplied separately. • The support bases are inside the core of the accumulator. • The installation of this appliance must be carried out by an authorized installer in accordance with the official regulations in force in each country.
- Page 7 Manual de instalación e instrucciones de uso • Before fixing it to the wall, we must pass the hoses through the most suitable hole. • Remove the anchor and proceed to make the holes to fix the heater to the wall. Once done, place the support on the wall.
-
Page 8: Electric Scheme
Manual de instalación e instrucciones de uso • Tilt the resistors forward to facilitate the placement of the blocks with the smooth side on the back. Once the placement of the blocks is finished, return the heating elements to their vertical position. •... -
Page 9: Technical Characteristics
Manual de instalación e instrucciones de uso E. TECHNICAL CHARACTERISTICS Accumulation power Nominal Charger Emission power Measures Weight Bricks 7h (kWh) (mm) (Kg) 1650 11,55 715x743x180 93,5 2550 17,85 925x743x180 130,0 3400 23,80 1275 1035x743x180 170,0 Temperature accuracy +/- 0,1ºC Temperature setting range 5 °... - Page 10 Manual de instalación e instrucciones de uso Operating modes The equipment is started / turned off pressing the ON/MODE button and has 3 modes of operation; OFF mode In OFF mode, the device is practically off, does not charge and does not heat up. 12:35 OF F Easy Mode (Fixed Temperature)
-
Page 11: Boost Function
Manual de instalación e instrucciones de uso • Then with the ON / MODE key, the user can switch between OFF and the selected mode. Boost function This function is available, for temporary changes. You can enter this option having configured any of the previous modes (easy mode or programming) by pressing the +/- button and selecting the temperature. - Page 12 Manual de instalación e instrucciones de uso Temperature setting In this menu you can define the Comfort, Eco and Antifreeze temperatures. The default values are 21ºC, 18ºC and 5ºC. Each temperature can be defined from 5ºC to 30ºC, taking into account that Comfort>...
-
Page 13: Advanced Configuration
Manual de instalación e instrucciones de uso next hour you want to set and repeat the process. • Confirm the changes with the CONF button. (If we want to go to another day of the week, press CONF again and scroll with +/- through the days) •... - Page 14 Manual de instalación e instrucciones de uso 3.Balancing (Disabled, single, load, doble load) 4.Smart charge Enabled (default) / Disabled. 5.. Target charge It is only configured if the previous one is deactivated. 6. Current charge Current charge level information. • Units; You can choose between ºC and ºF. By default ºC. • Display;...
- Page 15 Manual de instalación e instrucciones de uso OFFSET COMPENSACIÓN COMP : +0.0 °C TEM: 22.5 °C • Language: you can choose between English, German or Spanish. • Parameters: caution. This section could modify the factory settings of the equipment. • Set default: It is used to set the current configuration of the equipment (the last configuration) as default values when the equipment is reset.
-
Page 16: Common Solutions
Manual de instalación e instrucciones de uso following screen. If the device is linked, the time is updated automatically. G. ECO-DESIGN TROUBLE ACTION SOLUTION Check that there has been a normal power supply during the night Check that the electronics and switch are not in the off position. Plug it in and regulate it according to your needs. - Page 17 Reminder: To enjoy the functions of wireless wifi technology such as voice control, geo- location or real-time reading of the consumption of your equipment, you must purchase the USB multilink that is not included. NOTES ___________________________________________________________________ ___________________________________________________________________ ___________________________________________________________________ ___________________________________________________________________ ___________________________________________________________________ ___________________________________________________________________ ___________________________________________________________________ ___________________________________________________________________...
- Page 18 NOTES ___________________________________________________________________ ___________________________________________________________________ ___________________________________________________________________ ___________________________________________________________________ ___________________________________________________________________ ___________________________________________________________________ ___________________________________________________________________ ___________________________________________________________________ ___________________________________________________________________ ___________________________________________________________________ ___________________________________________________________________ ___________________________________________________________________ ___________________________________________________________________ ___________________________________________________________________ ___________________________________________________________________ ___________________________________________________________________ ___________________________________________________________________ ___________________________________________________________________ ___________________________________________________________________ ___________________________________________________________________ ___________________________________________________________________ ___________________________________________________________________ ___________________________________________________________________ ___________________________________________________________________ ___________________________________________________________________ ___________________________________________________________________ ___________________________________________________________________ ___________________________________________________________________ ___________________________________________________________________ ___________________________________________________________________...
- Page 19 Manual de instalação e instruções de uso...
- Page 20 Electrorad UK Limited Unit 1 Clayton Park Clayton Wood Rise West Park Leeds LS16 6RF UK INFO@ELECTRORAD.CO.UK Telephone: 01132746799...
