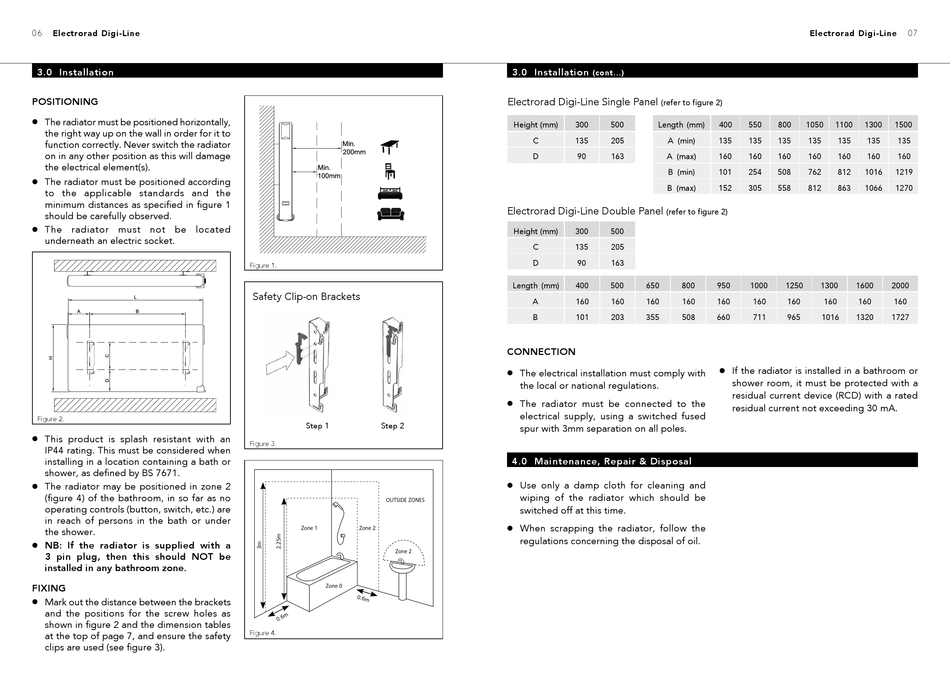

Electrorad Digi-Line Installation/Operating page 4

Electrorad Digi-Line
06
3.0 Installation
POSITIONING
The radiator must be positioned horizontally,
l
the right way up on the wall in order for it to
function correctly. Never switch the radiator
on in any other position as this will damage
the electrical element(s).
The radiator must be positioned according
l
to the applicable standards and the
minimum distances as specified in figure 1
should be carefully observed.
The radiator must not be located
l
underneath an electric socket.
L
A B
Figure 2.
This product is splash resistant with an
l
IP44 rating. This must be considered when
installing in a location containing a bath or
shower, as defined by BS 7671.
The radiator may be positioned in zone 2
l
(figure 4) of the bathroom, in so far as no
operating controls (button, switch, etc.) are
in reach of persons in the bath or under
the shower.
NB: If the radiator is supplied with a
l
3 pin plug, then this should NOT be
installed in any bathroom zone.
FIXING
Mark out the distance between the brackets
l
and the positions for the screw holes as
shown in figure 2 and the dimension tables
at the top of page 7, and ensure the safety
clips are used (see figure 3).
Figure 1.
Safety Clip-on Brackets
Step 1 Step 2
Figure 3.
OUTSIDE ZONES
Zone 1 Zone 2
Zone 2
Zone 0
Figure 4.
3.0 Installation
(cont...)
Electrorad Digi-Line Single Panel
(refer to figure 2)
Height (mm) 300 500 Length (mm)
C 135 205 A (min)
D A (max)
90 163
B (min)
B (max)
Electrorad Digi-Line Double Panel
(refer to figure 2)
Height (mm) 300 500
C 135 205
D 90 163
Length (mm) 400 500 650 800
A
160 160 160 160
B
101 203 355 508
CONNECTION
The electrical installation must comply with
l
the local or national regulations.
The radiator must be connected to the
l
electrical supply, using a switched fused
spur with 3mm separation on all poles.
4.0 Maintenance, Repair & Disposal
Use only a damp cloth for cleaning and
l
wiping of the radiator which should be
switched off at this time.
When scrapping the radiator, follow the
l
regulations concerning the disposal of oil.
Electrorad Digi-Line
400 550 800 1050 1100 1300 1500
135 135 135 135 135 135
160 160 160 160 160 160
101 254 508 762 812 1016 1219
152 305 558 812 863 1066 1270
950 1000 1250 1300 1600 2000
160 160 160 160 160 160
660 711 965 1016 1320 1727
If the radiator is installed in a bathroom or
l
shower room, it must be protected with a
residual current device (RCD) with a rated
residual current not exceeding 30 mA.
07
135
160
