Summary of Contents for Electrorad ThermaStore HHR
Page 1

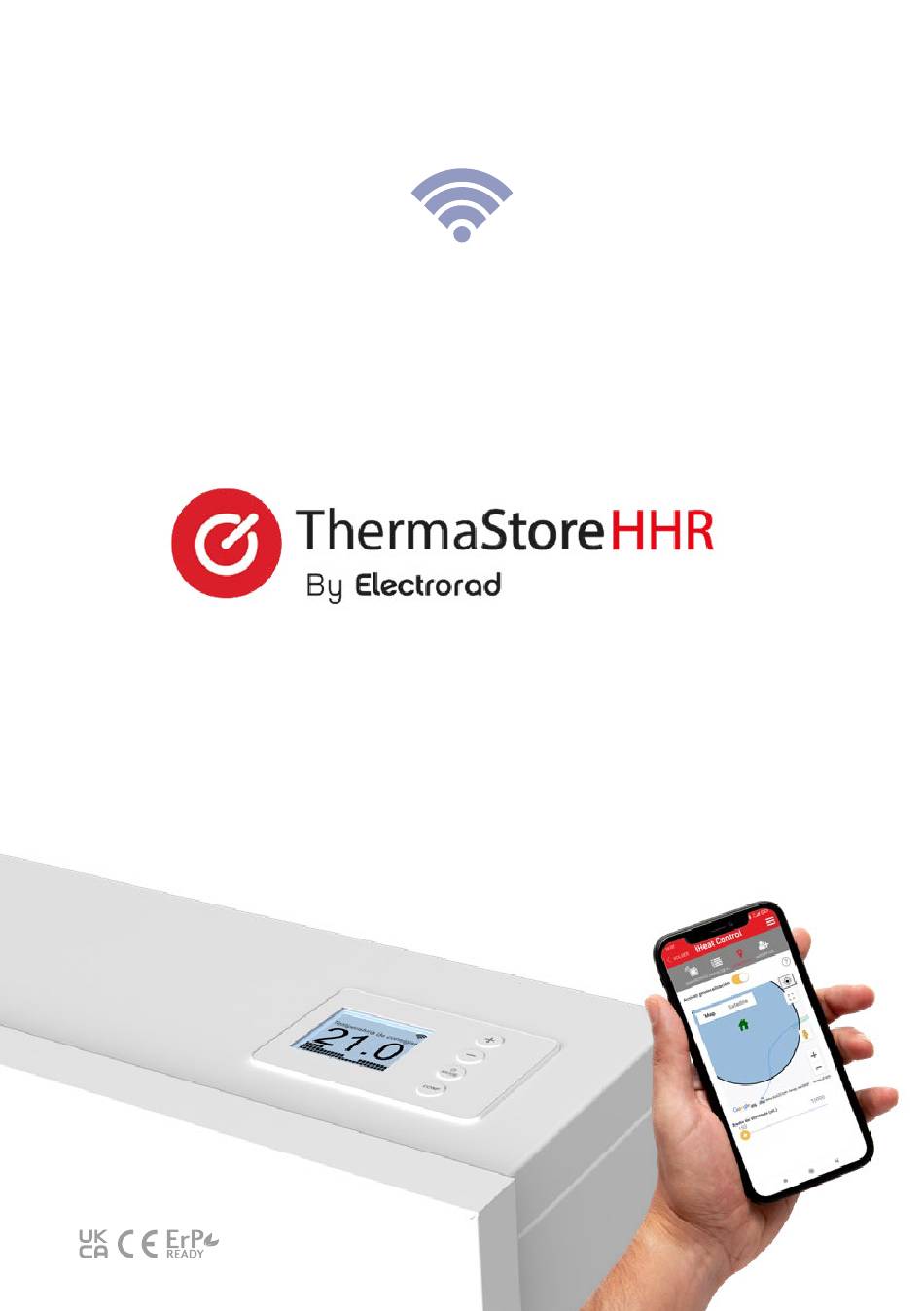

HIGH HEAT RETENTION STORAGE HEATER INSTALLATION MANUAL AND INSTRUCTIONS FOR USE Smart charging WiFi control TFT display ACU0006113V02 V1.7-1.8...
GENERAL WARNINGS INTRODUCTION Before proceeding with the installation of the product, you must read all the instructions and recom- mendations detailed in this manual very carefully, as the manufacturer will not be held responsible for any failure or damage caused by non-compliance. Once the battery has been installed, keep this manual in a safe place so that it can be consulted at any time and in case of doubt.
Page 3
GENERAL WARNINGS tion concerning use of the appliance in a safe way and understand the hazards involved. Children from 3 years of age and under 8 years of age must not plug in, adjust, clean or service the appliance. Children under 3 years of age should be kept out of reach of the appliance unless continuously supervised.
Page 4
GENERAL WARNINGS tallation. The power supply circuit of the device must be fitted with an omnipolar circuit breaker with a contact separation of at least 3 mm. The connection cables of the battery itself must not come into contact with the surface of the device.
GENERAL WARNINGS be the same as those indicated on the rating plate. It is possible that the radiator may cause slight noises at the beginning of its operation; this is normal due to expansion and contraction. After a few days, this noise disappears. After the unit has been re-installed in another location, it will be put into operation for the first charging period under the control of the installer.
CLEANING AND WARRANTY CLEANING Before cleaning, switch off the product and allow it to cool down. If there is dirt on the outside, it can be removed with a dry cloth. Do not use solvents or abrasive products. It is important that the ventilation grille is always free of dust.
EQUIPMENT CONFIGURATION Inclease the temperature. Navigate up. Multilink linked equipment Active fan Active core resistance Reduce the temperature. Active support 19.5 Navigate down. Set point temperature resistance On/Off Mode / Confirm Bars indicating the configu- Confort Anti frost red programming. Back.
Page 9
EQUIPMENT CONFIGURATION To modify a specific day, select the desired day using the +/- keys and confirm with the “MODE” button. Then, choose between the edit or copy options using the +/- PROGRAMATION keys and confirm again with “MODE”. Mo Tu We Th Sa Su If edit is chosen, scroll through the hours with the +/- keys 17:001...
Page 10
EQUIPMENT CONFIGURATION activated outside the charging period if the fan is not sufficient and the load is low (below 50%). The support resistor can never be activated during the load period. Default value: Peak only. • Weekly programming: With this option you can select the charging period and charging days. Up to two different periods can be chosen, defining the start and end time.
EQUIPMENT CONFIGURATION Language: you can choose between English, German or Spanish. Parameters: WARNING, this section could modify the factory settings of the equipment. Only a specialised technician should enter this section, the user should not enter or modify the parameters to avoid improper operation of the product.. Set defaults: In case you want to set the current configuration of the equipment (the last configuration made) as default values, select YES..
MOUNTING INSTRUCTIONS SAFETY DISTANCES MOUNTING INSTRUCTIONS Step 2: Remove the screws holding the Step 1: Remove the three bottom core cover. Remove the core cover (very screws. Remove the front panel of the carefully) to access the base kit. unit.
Page 13
MOUNTING INSTRUCTIONS Step 3: Carefully place the core cap on Step 4: Remove the legs and the metal the side of the equipment. tray inside. Carefully lay the equipment down. Step 5: Place the feet on the bottom of Step 6: Unscrew the anchoring bracket the accumulator.
Page 14
MOUNTING INSTRUCTIONS *647mm Step 7: Mark and drill the wall. Insert the Step 8: Once the battery is in place, tilt dowel into the hole and screw the bracket the resistors forward as shown in the to the wall. Position and screw the picture.
Page 15
MOUNTING INSTRUCTIONS Remove before use Retire antes de usar Remove the battery protector on the electronics before use. It is located in the area marked protruding from the electronics by the red part of the label. Step 11: Place the metal tray on top Step 12: Put the core cap in position and (smooth side up) between the insulation screw it in place.
Page 16
TROUBLE ACTION SOLUTION Check that there has been a normal power supply during the night Check that the electronics and switch are not in the off Plug it in and regulate it according to your needs. position. Check that the circuit breakers on the power panel are No load Connect the corresponding switch.
Page 17
ECO-DESIGN Item Unit Calorific power Manual control of the heat load, with integrated thermostat. Manual control of heat load with response to indoor or outdoor temperature Electronic control of heat load with response to indoor or outdoor temperature Fan-assisted heating power Indoor temperature / heat output control type (select one) Single level heat output, no indoor temperature control no Two or more manual levels, no indoor temperature control no...
