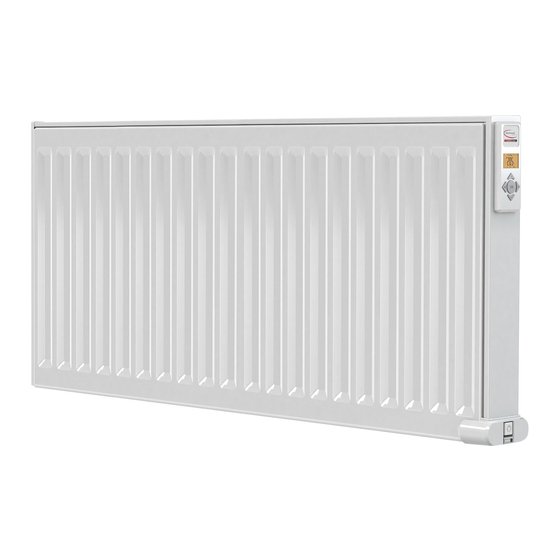

- Page 2 An Introduction to Digi-Line The Digi-Line electric radiator range has been designed and is manufactured in Britain, to give electricians the same choice of radiator type and selection of sizes as plumbers have always been used to. The radiators are filled with a thermal fluid to transfer heat to the whole of the surface area without the need for any pump or moving parts.
- Page 3 Controlling your Digi-Line Radiators There are 3 ways to control your Radiators: Independently – Each radiator has its own built in thermostat and set of controls. You can either use these manually, or set a timer and in theory, never have to touch them ever again! With our central controller –...
- Page 4 Independent control - manual Setting the date and time on the Digi-Line Radiator. • Press and hold the OK button for 3 second and a 24 hour clock will appear as 00:00 • The hour value will blink and you can use the arrow up and down button to select the hour of the day. Press OK. •...
- Page 5 Independent control –Timed settings First of all, set your date, time, comfort and set back temperatures following the steps for manual control on the previous page. It helps if you have an idea before you start of when you want your radiator to be on comfort and when you want it to be on set back for a full weekly cycle. 1.) Using the arrow right button, move along the icons to the clock symbol and press OK.
- Page 6 Temporary Override of the current set point temperature If you come home early, or you are too warm for any reason and you want to temporarily change the temperature, you can select a new temperature and a duration to override your current timings. Here’s how: 1.) Push the arrow up button and you will be shown a temperature, you can then use the arrows up and down keys to adjust what you would like it to be, then Press OK...
- Page 7 Using Digi-Lines with the Touche3 Understanding the buttons on the touche3: Setting up your Touche3 Press “main menu” button A (See Image above) Press “user settings” button F which is the silhouette of a person’s head and shoulders Click on the ‘hour’ setting and then use the + and – buttons to select the current hour of the day Now press the arrow right button and do the same for the minutes, then press the green tick...
- Page 8 Now let’s create your house on the touche3 From the home screen, press menu, then a 5 second press on the parameter settings key ( House with a sunshine in the middle) Press the “ house creation” button You will now see the screen below, we have labelled the buttons with letters to help show you which buttons to press.
- Page 9 Pairing Radiators with the touch e3 On the Touche3, Press the menu button Press and hold the Parameters button (House with a sunshine in) Select radio paring Press “heating” Select room – You may get a warning message to tell you must first be in the zone, this is just telling you to make sure that you are next to the radiator with the touch e3.
- Page 10 To Set Temperatures on your Touche3 (If you are using the app, skip straight to using the Touche3 with the app page 12) Press the home button at the bottom left on the home page (button b on the start screen.) Choose which room you are working on by pressing the black arrow buttons (Button E).
- Page 11 To Set Timings on your Touche3 (If you are using the app, skip straight to using the Touche3 with the app page) Press home button Navigate to the room that you want to set the timings for using the arrow left and right keys. Press button d on the room menu Press auto (button h)0, then press the button underneath the auto icon, button M on the current mode menu.
- Page 12 Using the Touche3 with the Clevertouch App Connecting your Touche3 to your internet router PLEASE FOLLOW ALL OF THE STEPS ON PAGES 12 – 13 IN ORDER On your Touche3, Press “ menu” button at the bottom right. This is button A on the start screen menu as shown above.
- Page 13 Installing the Clevertouch App Download the free App “Clever Touch gen 2” from Apple store or Google play Open the app and click on ‘Create an account’ Enter your email address in the top box and then pick a pass word of your choice to type in the middle box, then repeat the password in the bottom box.
- Page 14 Using the Clevertouch App When you first open up the app, you will be presented with a list of Touche3’s that are set up to your account. Most people just have the one, but some people have 2 or more if they have families on their or rental properties.
- Page 15 If you would like to amend the timings on one of your radiators using the app, click into the home and then into the room you wish to amend. Again click the black circle button under the ‘C’ for the temperature, then click ‘program’...
- Page 16 FAQ’s How do you know when the radiator is heating? On the touche3, the flame in the middle of the house will be red and flickering. If the flame is black and constant, the radiator is not heating. On the app, you will see 3 red wiggly lines pulsing at the side of each radiator that is on. On the radiator, 3 wiggly lines will be present to the left of the temperature.
- Page 17 What does state 1/2 and 2/2 mean? State 1/2 means that you are connected to the Wi-Fi. State 2/2 means that the server. How do I do a factory re-set? • Carry out a soft factory re-set on TouchE3. Press menu, 7 icon house with red dot for 5 secs, scroll down, select general factory default, you will then be presented with a screen that has an X on the left and a tick on the right, press and hold the tick for 5 seconds.
- Page 18 Check you have all the relevant update information, the current version is V.03.05. Press the menu button on your touch e3 to see your version displayed along the bottom. If you need any updates, please call Electrorad on 01132 746 799. You could try a repeater for the touche3, repeaters will only enhance the signal from the radiator to the touche3.
- Page 19 Try a power cycle on your router (turning it off an on again) Yes of course, please get in touch with the Electrorad customer service team by calling 01132 746 799 or e-mail Can I get any further help or sales@electrorad.co.uk...
