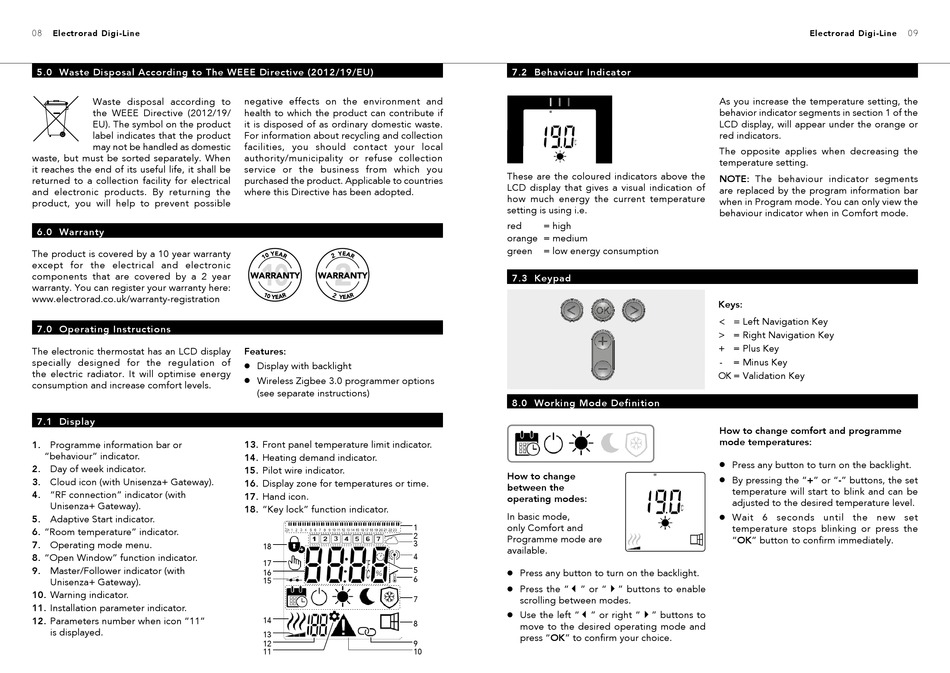

Electrorad Digi-Line
08
5.0 Waste Disposal According to The WEEE Directive (2012/19/EU)
Waste disposal according to
the WEEE Directive (2012/19/
EU). The symbol on the product
label indicates that the product
may not be handled as domestic
waste, but must be sorted separately. When
it reaches the end of its useful life, it shall be
returned to a collection facility for electrical
and electronic products. By returning the
product, you will help to prevent possible
6.0 Warranty
The product is covered by a 10 year warranty
except for the electrical and electronic
components that are covered by a 2 year
warranty. You can register your warranty here:
www.electrorad.co.uk/warranty-registration

7.0 Operating Instructions

The electronic thermostat has an LCD display
specially designed for the regulation of
the electric radiator. It will optimise energy
consumption and increase comfort levels.

7.1 Display

1. Programme information bar or
"behaviour" indicator.
2. Day of week indicator.
3. Cloud icon (with Unisenza+ Gateway).
4. "RF connection" indicator (with
Unisenza+ Gateway).
5. Adaptive Start indicator.
6. "Room temperature" indicator.
7. Operating mode menu.
8. "Open Window" function indicator.
9. Master/Follower indicator (with
Unisenza+ Gateway).
10. Warning indicator.
11. Installation parameter indicator.
12. Parameters number when icon "11"
is displayed.
negative effects on the environment and
health to which the product can contribute if
it is disposed of as ordinary domestic waste.
For information about recycling and collection
facilities, you should contact your local
authority/municipality or refuse collection
service or the business from which you
purchased the product. Applicable to countries
where this Directive has been adopted.
Features:
Display with backlight
l
Wireless Zigbee 3.0 programmer options
l
(see separate instructions)
13. Front panel temperature limit indicator.
14. Heating demand indicator.
15. Pilot wire indicator.
16. Display zone for temperatures or time.
17. Hand icon.
18. "Key lock" function indicator.
1
2
3
18
4
17
5
16
6
15
7
14
8
13
12 9
11 10

7.2 Behaviour Indicator

These are the coloured indicators above the
LCD display that gives a visual indication of
how much energy the current temperature
setting is using i.e.
red = high
orange = medium
green = low energy consumption

7.3 Keypad

8.0 Working Mode Definition

How to change
between the
operating modes:
In basic mode,
only Comfort and
Programme mode are
available.
Press any button to turn on the backlight.
l
Press the " " or " " buttons to enable
 4
l
scrolling between modes.
Use the left " " or right " " buttons to
 4
l
move to the desired operating mode and
press "OK" to confirm your choice.
Electrorad Digi-Line
As you increase the temperature setting, the
behavior indicator segments in section 1 of the
LCD display, will appear under the orange or
red indicators.
The opposite applies when decreasing the
temperature setting.
NOTE: The behaviour indicator segments
are replaced by the program information bar
when in Program mode. You can only view the
behaviour indicator when in Comfort mode.
Keys:
< = Left Navigation Key
> = Right Navigation Key
+ = Plus Key
- = Minus Key
OK = Validation Key
How to change comfort and programme
mode temperatures:
Press any button to turn on the backlight.
l
By pressing the "+" or "-" buttons, the set
l
temperature will start to blink and can be
adjusted to the desired temperature level.
Wait 6 seconds until the new set
l
temperature stops blinking or press the
"OK" button to confirm immediately.
09
