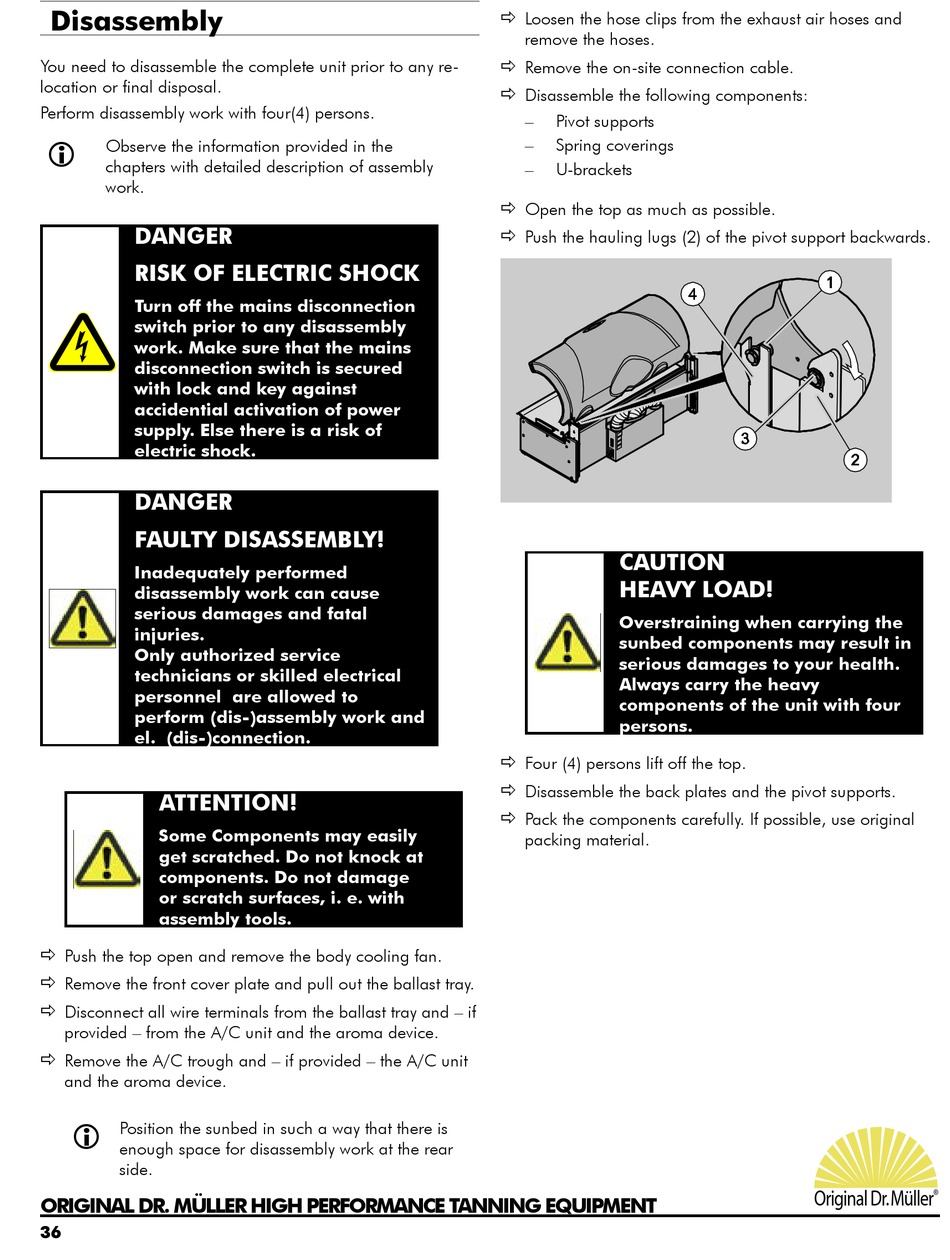

Disassembly

You need to disassemble the complete unit prior to any re-
location or final disposal.
Perform disassembly work with four(4) persons.
Observe the information provided in the
chapters with detailed description of assembly
work.
DANGER
RISK OF ELECTRIC SHOCK
Turn off the mains disconnection
switch prior to any disassembly
work. Make sure that the mains
disconnection switch is secured
with lock and key against
accidential activation of power
supply. Else there is a risk of
electric shock.
DANGER
FAULTY DISASSEMBLY!
Inadequately performed
disassembly work can cause
serious damages and fatal
injuries.
Only authorized service
technicians or skilled electrical
personnel are allowed to
perform (dis-)assembly work and
el. (dis-)connection.
ATTENTION!
Some Components may easily
get scratched. Do not knock at
components. Do not damage
or scratch surfaces, i. e. with
assembly tools.
Push the top open and remove the body cooling fan.
Remove the front cover plate and pull out the ballast tray.
Disconnect all wire terminals from the ballast tray and – if
provided – from the A/C unit and the aroma device.
Remove the A/C trough and – if provided – the A/C unit
and the aroma device.
Position the sunbed in such a way that there is
enough space for disassembly work at the rear
side.
ORIGINAL DR. MÜLLER HIGH PERFORMANCE TANNING EQUIPMENT
36
Loosen the hose clips from the exhaust air hoses and
remove the hoses.
Remove the on-site connection cable.
Disassemble the following components:
Pivot supports
Spring coverings
U-brackets
Open the top as much as possible.
Push the hauling lugs (2) of the pivot support backwards.
CAUTION
HEAVY LOAD!
Overstraining when carrying the
sunbed components may result in
serious damages to your health.
Always carry the heavy
components of the unit with four
persons.
Four (4) persons lift off the top.
Disassemble the back plates and the pivot supports.
Pack the components carefully. If possible, use original
packing material.
Original Dr. Müller
®
