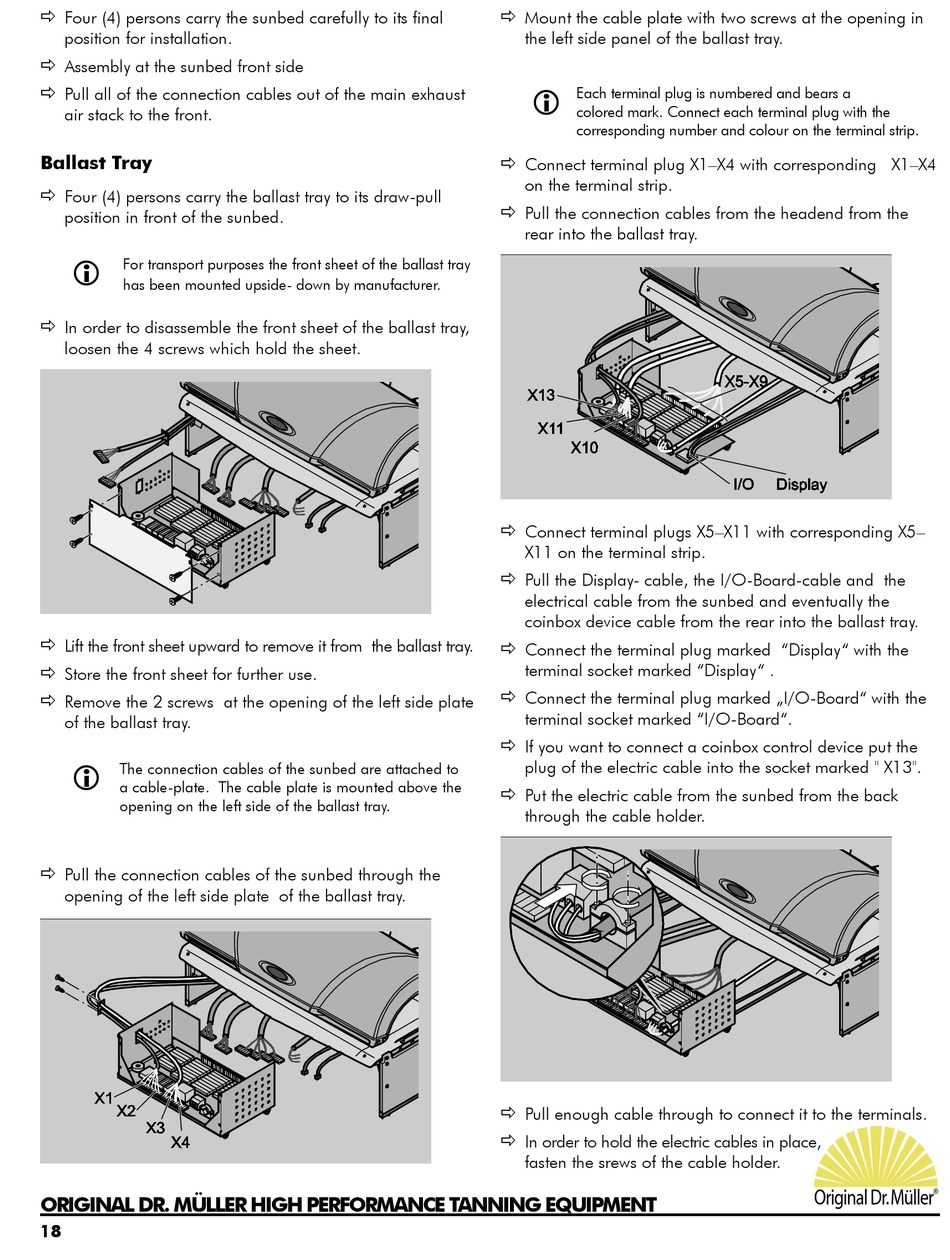

Four (4) persons carry the sunbed carefully to its final
position for installation.
Assembly at the sunbed front side
Pull all of the connection cables out of the main exhaust
air stack to the front.
Ballast Tray
Four (4) persons carry the ballast tray to its draw-pull
position in front of the sunbed.
For transport purposes the front sheet of the ballast tray
has been mounted upside- down by manufacturer.
In order to disassemble the front sheet of the ballast tray,
loosen the 4 screws which hold the sheet.
Lift the front sheet upward to remove it from the ballast tray.
Store the front sheet for further use.
Remove the 2 screws at the opening of the left side plate
of the ballast tray.
The connection cables of the sunbed are attached to
a cable-plate. The cable plate is mounted above the
opening on the left side of the ballast tray.
Pull the connection cables of the sunbed through the
opening of the left side plate of the ballast tray.
ORIGINAL DR. MÜLLER HIGH PERFORMANCE TANNING EQUIPMENT
18
Mount the cable plate with two screws at the opening in
the left side panel of the ballast tray.
Each terminal plug is numbered and bears a
colored mark. Connect each terminal plug with the
corresponding number and colour on the terminal strip.
Connect terminal plug X1–X4 with corresponding X1–X4
on the terminal strip.
Pull the connection cables from the headend from the
rear into the ballast tray.
Connect terminal plugs X5–X11 with corresponding X5–
X11 on the terminal strip.
Pull the Display- cable, the I/O-Board-cable and the
electrical cable from the sunbed and eventually the
coinbox device cable from the rear into the ballast tray.
Connect the terminal plug marked "Display" with the
terminal socket marked "Display" .
Connect the terminal plug marked „I/O-Board" with the
terminal socket marked "I/O-Board".
If you want to connect a coinbox control device put the
plug of the electric cable into the socket marked " X13".
Put the electric cable from the sunbed from the back
through the cable holder.
Pull enough cable through to connect it to the terminals.
In order to hold the electric cables in place,
fasten the srews of the cable holder.
