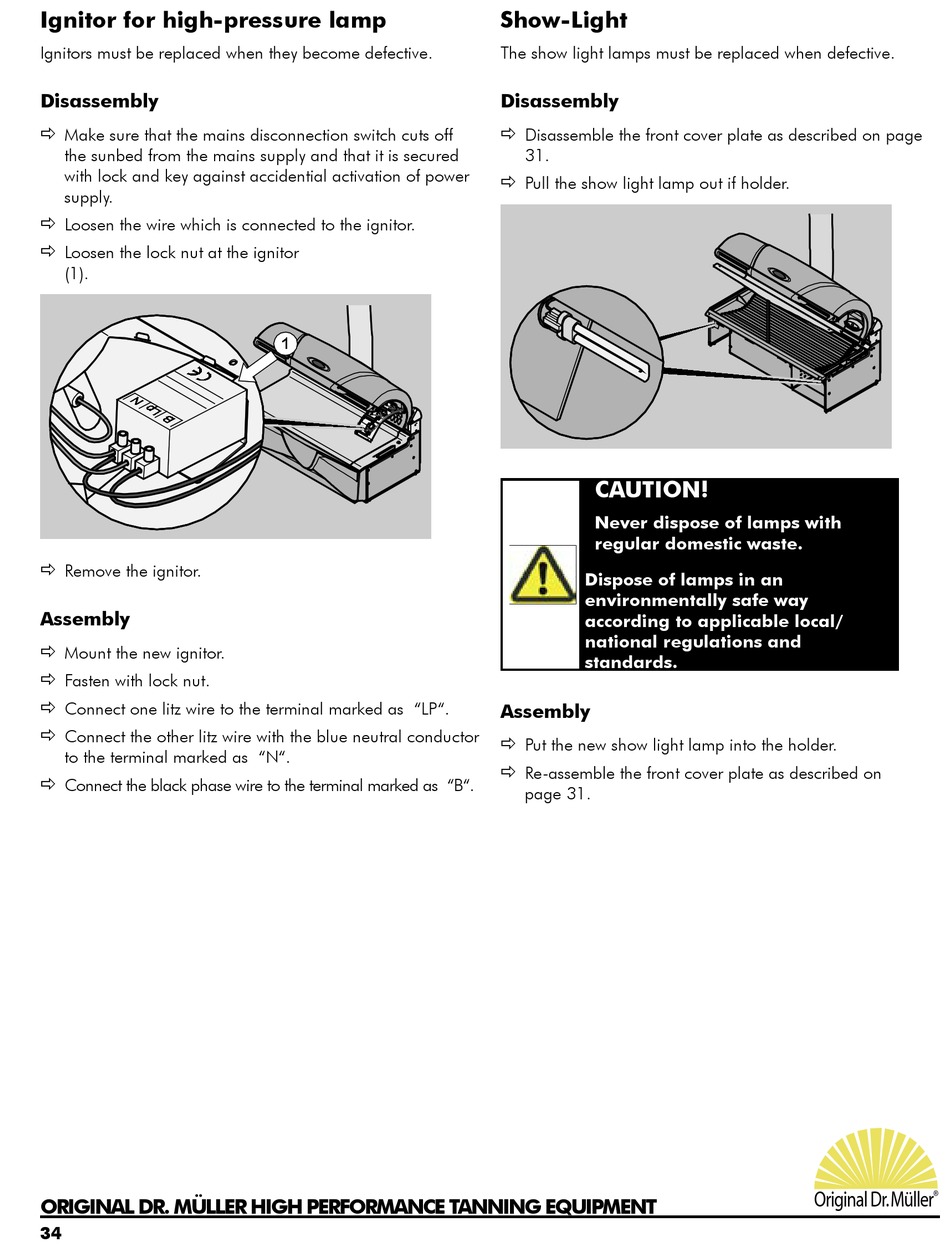

Ignitor for high-pressure lamp
Ignitors must be replaced when they become defective.
Disassembly
Make sure that the mains disconnection switch cuts off
the sunbed from the mains supply and that it is secured
with lock and key against accidential activation of power
supply.
Loosen the wire which is connected to the ignitor.
Loosen the lock nut at the ignitor
(1).
Remove the ignitor.
Assembly
Mount the new ignitor.
Fasten with lock nut.
Connect one litz wire to the terminal marked as "LP".
Connect the other litz wire with the blue neutral conductor
to the terminal marked as "N".
Connect the black phase wire to the terminal marked as "B".
ORIGINAL DR. MÜLLER HIGH PERFORMANCE TANNING EQUIPMENT
34
Show-Light
The show light lamps must be replaced when defective.
Disassembly
Disassemble the front cover plate as described on page
31.
Pull the show light lamp out if holder.
CAUTION!
Never dispose of lamps with
regular domestic waste.
Dispose of lamps in an
environmentally safe way
according to applicable local/
national regulations and
standards.
Assembly
Put the new show light lamp into the holder.
Re-assemble the front cover plate as described on
page 31.
