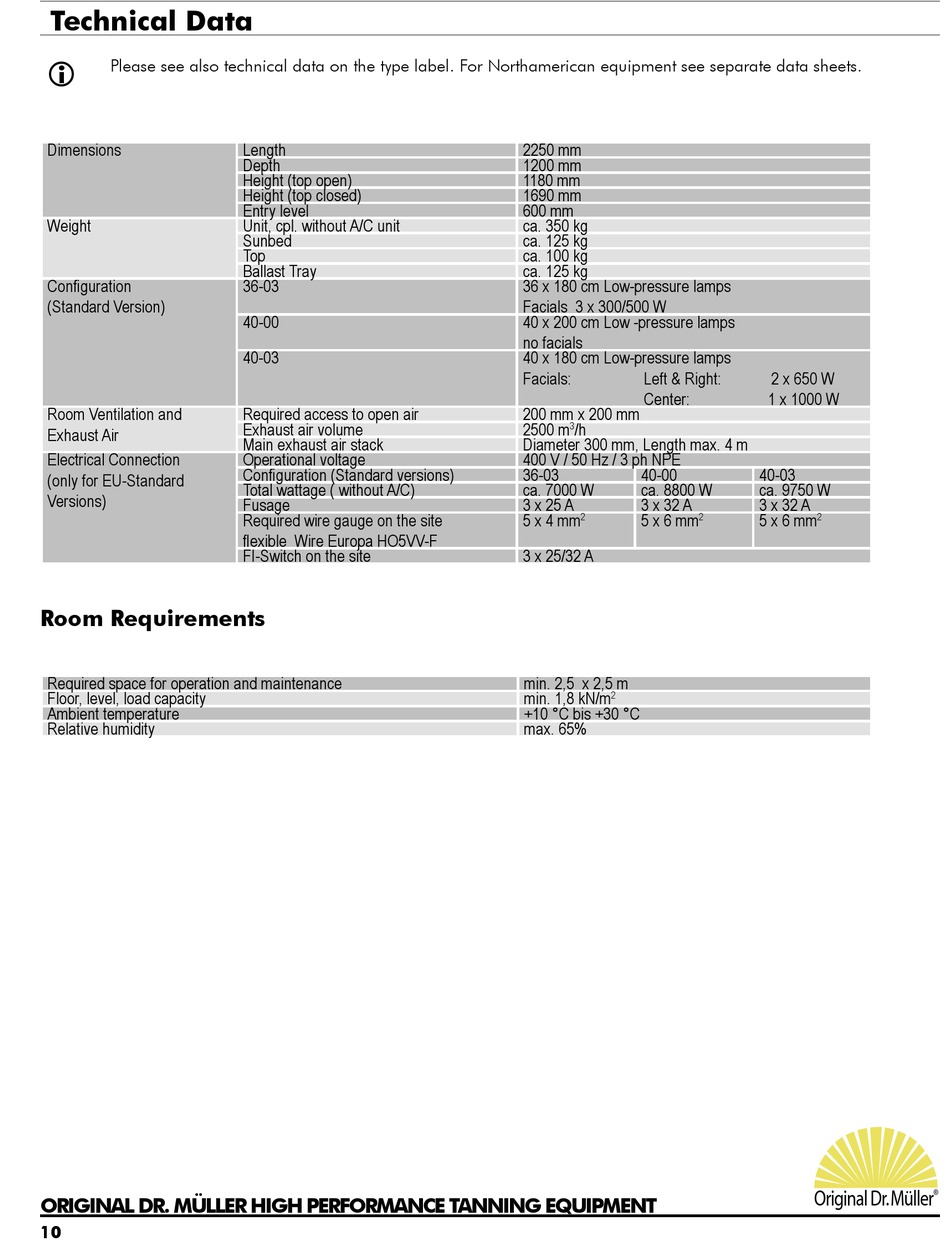

Technical Data
Please see also technical data on the type label. For Northamerican equipment see separate data sheets.
Dimensions
Weight
Configuration
(Standard Version)
Room Ventilation and
Exhaust Air
Electrical Connection
(only for EU-Standard
Versions)
Room Requirements
Required space for operation and maintenance
Floor, level, load capacity
Ambient temperature
Relative humidity
ORIGINAL DR. MÜLLER HIGH PERFORMANCE TANNING EQUIPMENT
10
Length
Depth
Height (top open)
Height (top closed)
Entry level
Unit, cpl. without A/C unit
Sunbed
Top
Ballast Tray
36-03
40-00
40-03
Required access to open air
Exhaust air volume
Main exhaust air stack
Operational voltage
Configuration (Standard versions)
Total wattage ( without A/C)
Fusage
Required wire gauge on the site
flexible Wire Europa HO5VV-F
FI-Switch on the site
2250 mm
1200 mm
1180 mm
1690 mm
600 mm
ca. 350 kg
ca. 125 kg
ca. 100 kg
ca. 125 kg
36 x 180 cm Low-pressure lamps
Facials 3 x 300/500 W
40 x 200 cm Low -pressure lamps
no facials
40 x 180 cm Low-pressure lamps
Facials:
Left & Right:
Center:
200 mm x 200 mm
2500 m
/h
3
Diameter 300 mm, Length max. 4 m
400 V / 50 Hz / 3 ph NPE
36-03
40-00
ca. 7000 W
ca. 8800 W
3 x 25 A
3 x 32 A
5 x 4 mm
5 x 6 mm
2
2
3 x 25/32 A
min. 2,5 x 2,5 m
min. 1,8 kN/m
2
+10 °C bis +30 °C
max. 65%
2 x 650 W
1 x 1000 W
40-03
ca. 9750 W
3 x 32 A
5 x 6 mm
2
