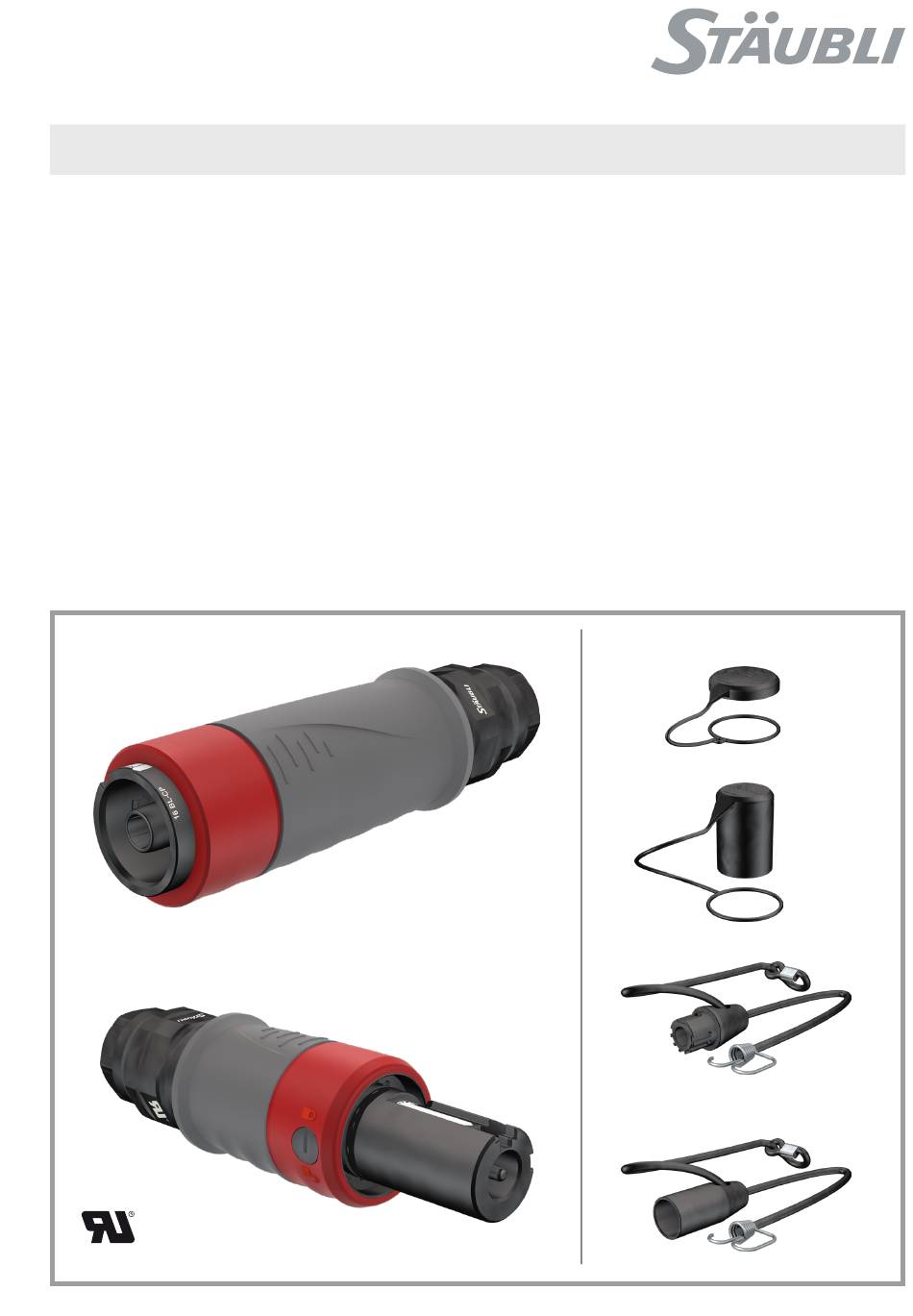

MA408 (中_英)
安装说明
快速连接器
插头16BL-CP
插座16BL-CS
带AxiClamp和压接连接
目录
安全说明 2-3
工具要求5
概览6
电缆格兰头的橡胶密封圈准备7
压接 (压接类型) 7
AxiClamp连接9
安装11
拆卸12
编码13
插入、 测试及拔出程序14
安全锁15
检查16BL-CS密封  15
配件16
16BL-CS/...
E470532
MA408 (cn_en)
Assembly instructions
Free connectors

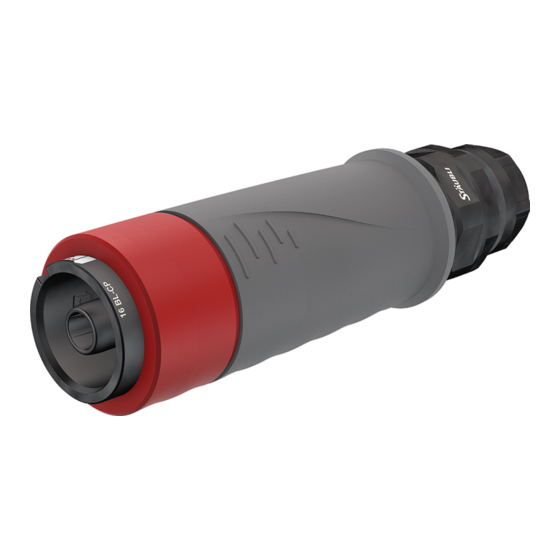

Plug 16BL-CP
Socket 16BL-CS
with AxiClamp and crimp termination
Content
Safety Instructions ������������������������������������������������������������������� 2-3
Tools required ������������������������������������������������������������������������������5
Overview �������������������������������������������������������������������������������������6
Preparing the rubber seal of the cable gland ��������������������������������7
Cable preparation ������������������������������������������������������������������������7
Crimping (crimp version) ��������������������������������������������������������������7
Cable termination with AxiClamp �������������������������������������������������9
Assembly �����������������������������������������������������������������������������������11
Disassembly ������������������������������������������������������������������������������12
Coding ��������������������������������������������������������������������������������������13
Plugging, test and unplugging procedures ���������������������������������14
Locking pin ��������������������������������������������������������������������������������15
Check 16BL-CS seal �����������������������������������������������������������������15
Accessories �������������������������������������������������������������������������������16
配件
Accessories
16BL-CP/PC
15.5882
16BL-CS/PC
15.5881
16BL-CP/FIX
15.5884
16BL-CS/FIX
15.5883
1 / 16

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 16BL-CP Series and is the answer not in the manual?

Questions and answers

Summary of Contents for Staubli 16BL-CP Series

  • Page 1: Table Of Contents

    MA408 (中_英) MA408 (cn_en) 安装说明 Assembly instructions 快速连接器 Free connectors 插头16BL-CP Plug 16BL-CP 插座16BL-CS Socket 16BL-CS 带AxiClamp和压接连接 with AxiClamp and crimp termination 目录 Content 安全说明 2-3 Safety Instructions ������������������������������������������������������������������� 2-3 工具要求5 Tools required ������������������������������������������������������������������������������5 概览6 Overview �������������������������������������������������������������������������������������6 电缆格兰头的橡胶密封圈准备7 Preparing the rubber seal of the cable gland ��������������������������������7 电缆准备7 Cable preparation ������������������������������������������������������������������������7 压接...
  • Page 2: Safety Instructions

    安全指令 Safety instructions 仅可使用Stäubli指定的组件和工具。 自行装配时, 切勿背离本手 Use only the components and tools specified by Stäubli� In case 册所述的制备及装配说明, 否则Stäubli无法保证产品安全性或 of self-assembly, do not deviate from the preparation and assem- 性能达到官方技术参数。 请勿以任何方式修改产品。 bly instructions as stated herein, otherwise Stäubli cannot give any guarantee as to safety or conformity with the technical data�...
  • Page 3 安全指令 Safety instructions ISO 7000-0434B 注意 Caution 每次使用连接器前, 需提前检查外部是否有缺陷(尤其是绝缘层) Each time the connector is used, it should previously be inspect- 如有安全疑虑, 必须咨询专业人员或更换连接器。 ed for external defects (particularly the insulation)� If there are any safety concerns, an electrically skilled person must be consulted or the connector must be replaced�...
  • Page 4 TECHNICAL CONSIDERATIONS according to UL File E470532 Use: For use only in (or with) complete equipment where the acceptability of the combination is determined by UL LLC� Conditions of Acceptability: These devices are not suitable for interrupting the flow of current by connecting or disconnecting the mating connector� These devices have been investigated with the applicable requirements in the Standards UL 486A-486B only with reference to the crimp contacts: they have been investigated and found in compliance with the applicable requirements of the mentioned standards�...
  • Page 5: Tools Required

    压接钳ELPRESSV1311C或 Crimping pliers ELPRESS V1311C or V1311C-A V1311C-A 带压模 (参见表1) with crimping die (see Tab �1) 注注注 Note: 操作说明MA069 Operating instructions MA069 wwwstaublicom/electrical www�staubli�com/electrical Tab. 1 导线截面积 注注注 Note: 兼容性说明, 取决于应用:  压模 (适配器) Compatibility instructions, depend- Conductor cross section...
  • Page 6: Overview

    概览/Overview 插座/Socket 插头/Plug AxiClamp AxiClamp 压接 压接 Crimp termination Crimp termination 注意 Attention 安装前请确保塑料绝缘套和金属插件匹配 (插座/插头) Make sure before mounting that you have the right plastic/metal parts combination (socket/plug) 6 / 16 6 / 16...
  • Page 7: 电缆准备7

    准备电缆格兰头的橡胶密封圈 Preparing the rubber seal of the cable gland (ill. 8) (ill. 8) 16BL-CS/和16BL-CP/系列的格兰头 The cable glands on the 16BL-CS/… 包含一个由两部分组成的橡胶密封圈, and 16BL-CP/… connector types con- 其需与线缆外径相匹配 (参见表2) 。 tain a two-part rubber seal that must be 请丢弃未使用的橡胶密封圈部分。 adjusted to fit the outer diameter of the cable (see Tab�...
  • Page 8 Tab. 3 AWG/MCM X (mm) L (mm) Y (mm) S+P-16BL70 B17 (V1330) AWG 2/0 13.4 27 +2,0 S+P-16BL95 B20 (V1330) AWG 4/0 16.4 30 +3, -1 250 MCM S+P-16BL120 B22 (V1330) 16.3 30 +3, -1 (包括/incl. 262.6 MCM) 300 MCM S+P-16BL150 B25 (V1330) 20.3...
  • Page 9: Cable Termination With Axiclamp

    AxiClamp连接 截面积/Cross section ≤ 185 mm Cable termination with AxiClamp (ill. 15) (ill. 15) 截面积达 185 mm² Cross section up to 185 mm² (< 373.7 MCM): (< 373.7 MCM): 将AxiClamp套B旋在锥形接触件上, 并 Screw the AxiClamp sleeve B onto the 拧紧至凹槽A前缘。 thread of the contact insert and tighten as far as the front edge of the groove A�...
  • Page 10 Tab. 4 AWG/MCM E (mm) L (mm) (mm) (mm) (N m) AWG 3/0 S+P-16BL/AX/95-120 250 MCM 300 MCM S+P-16BL/AX/150-185 350 MCM 450 MCM S+P-16BL/AX/240 500 MCM 线缆直径 > 32 mm: 69 mm for cable diameters > 32 mm: 69 mm 10 / 16 10 / 16...
  • Page 11: Assembly

    安装 Assembly (ill. 18) (ill. 19) 将两片绝缘隔离半圆套装在金属件凹 Place together the half shells of the 槽中。 distance tube over the metal part in the groove� (ill. 19) (ill. 19) 将带绝缘隔离套的导体插件滑入绝缘套 Slip the contact insert together with the 并转动至其平面重合。 half shells of the distance tube into the 压入并转动导体插件,...
  • Page 12: Disassembly

    注注注 Note: 拧紧电缆格兰头时, 确保螺母的五个面均衡受力。 When tightening the cable gland, take care that the forces are evenly distributed over five faces of the nut� 注注 Attention 拧紧螺母盖时, 请确保45mm或57mm在格兰头上而不是在 When tightening the cap nut, secure to 45 mm or 57 mm on 绝缘套上。...
  • Page 13: Coding

    编码 Coding 机械编码 Mechanical coding 从C1到C7, 最多可以有7种机械编码方式。 There is a maximum of 7 mechanical coding possibilities, 建议使用以下编码保证互换性: designated from C1 to C7� The following coding is recommended to safeguard the inter- changeability: 名称 符号 编码号 Designation Symbol Coding-No. 相位/Phase 1 相位/Phase 2 相位/Phase 3 中性线/Neutral...
  • Page 14: Plugging, Test And Unplugging Procedures

    插入程序 Plugging procedure (ill. 24) (ill. 24) 插座上安全锁必须处于 “打开” 位置 (第13页图26) 。 The locking pin on the female connector must be in “open” posi- 插头和插座上的标记必须对齐。 tion (ill� 26, page 13)� 使插头完全插入插座, 然后将插座向右旋转45°, 直到卡销锁紧。 The markings on the plug and socket have to be lined up� Mate 如果需要,...
  • Page 15: Locking Pin

    安全锁 Locking pin 关闭 closed 打开 open (ill. 26) (ill. 26) 插拔时, 16BL-CS上的安全锁必须处于 “打开” 位置。 For plugging and unplugging, the locking pin on 16BL-CS��� must be in the “open” position� 处于 “关闭” 位置时, 安全锁可防止插头意外断开。 In “closed” position, the locking pin prevents accidental discon- nection of the plug connector�...
  • Page 16: Accessories

    To attach the 16BL-CP and -CS connectors on the cable reel or other fixing points� 制造商/Producer: Stäubli Electrical Connectors AG Stockbrunnenrain 8 4123 Allschwil/Switzerland Tel. +41 61 306 55 55 +41 61 306 55 56 mail ec.ch@staubli.com www.staubli.com/electrical 16 / 16 16 / 16...
