Staubli MC4-Evo 2 Series Assembly Instructions Manual

Staubli MC4-Evo 2 Series Assembly Instructions Manual

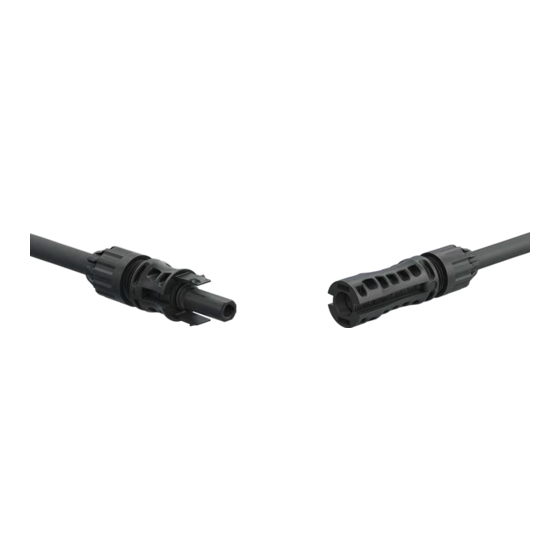

Pv female coupler; pv male coupler
Hide thumbs Also See for MC4-Evo 2 Series:

Advertisement

Quick Links

MA000 (de_en)
MA273 (es_en)
Instrucciones de montaje
Montageanleitung
Casquillo de acoplamiento hembra
PV-KBT4-EVO 2-UR
Casquillo de acoplamiento macho
PV-KST4-EVO 2-UR
MC4-Evo 2
Índice
Introducción ��������������������������������������������������������������������������������1
Instrucciones de seguridad ����������������������������������������������������������2
Herramientas necesarias �������������������������������������������������������������3
Pautas para configurar los conectores �����������������������������������������5
Preparación del cable ������������������������������������������������������������������6
Engarce ���������������������������������������������������������������������������������������7
Comprobación del montaje ���������������������������������������������������������8
Conexión y desconexión ��������������������������������������������������������������9
Notas sobre la instalación ����������������������������������������������������������10
Datos técnicos���������������������������������������������������������������������������11
Notas ����������������������������������������������������������������������������������������12
Casquillo de acoplamiento hembra
Female coupler
PV-KBT4-EVO 2/...

Introducción

Los conectores MC4-Evo 2 garantizan altos grados de protección
de IP65 e IP68 según la norma IEC 60529� El sistema de bloqueo
de los conectores, que cumple con la norma NEC 2020, garan-
tiza una seguridad óptima de la conexión� Solo puede desblo-
queárselo con la herramienta PV-MS-PLS/2�
MA000 (de_en)
MA273 (es_en)
Assembly instructions
Assembly instructions
PV female coupler
PV-KBT4-EVO 2-UR
PV male coupler
PV-KST4-EVO 2-UR
MC4-Evo 2
Content
Introduction ���������������������������������������������������������������������������������1
Safety Instructions �����������������������������������������������������������������������2
Tools required ������������������������������������������������������������������������������3
Guideline for configuring the connectors ��������������������������������������5
Cable preparation ������������������������������������������������������������������������6
Crimping ��������������������������������������������������������������������������������������7
Assembly check ��������������������������������������������������������������������������8
Mating and unmating �������������������������������������������������������������������9
Notes on installation ������������������������������������������������������������������10
Technical Data ���������������������������������������������������������������������������11
Notes ����������������������������������������������������������������������������������������12
Tapones/Sealing caps
PV-BVK4
PV-SVK4
32.0716
32.0717

Introduction

MC4-Evo 2 connectors guarantee high ingress protection of IP65
and IP68 according to IEC 60529� The locking system of the
connectors in accordance with NEC 2020 guarantees optimum
prevention against unintended disconnection� Unlocking can be
realized only using the tool PV-MS-PLS/2�
Casquillo de acoplamiento macho
Male coupler
PV-KST4-EVO 2/...
1 / 12
