REVEX
3PH from 120A to 210A

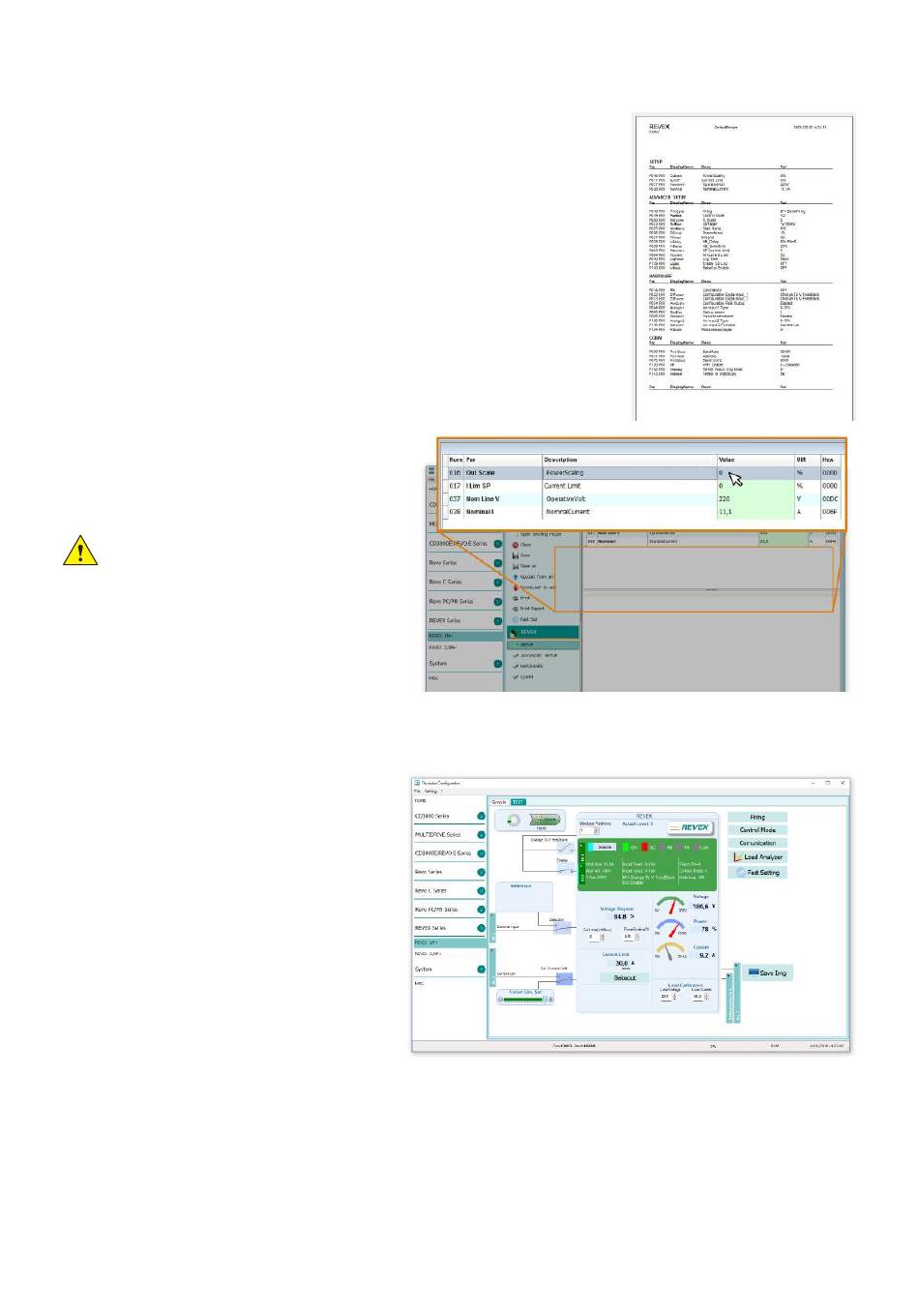

Save: save the recipe in a fi le
Save as: save a copy of the recipe in a fi le
Download to unit: send the current recipe parameters in the connected
power controller
Print: print the recipe (see sample at right)
Print report: print the recipe (see sample at right)
To edit the actual recipe values click a parameter menu name:
SETUP
ADVANCED SETUP
HARDWARE
COMMUNICATIONS
and after click on the value and modify it.
NOTE! Changes to the values here aff ect
the open recipe only. To apply these
changes to the power controller settings,
download them to the power controller
using the Download to unit option.
10.6.3 Test Section
This section is used to monitor and adjust the
operation of the power controller in real time
using RS485 or USB communication port.
After select the model, is possible access to
this section clicking the "TEST" tab below the
main menu.
Operating on TEST Section:
Online button: is the button to start or stop
communication updates with the power
controller.
After communication
communication
spins clockwise when
communicates correctly with a power controller, if the connection link is broken the color will become red
Address: value used to set the power controller address
click the value to log in or out. Default Password address is "1111".
Access Level:
All manuals and user guides at all-guides.com
starts, a green
status indicator
the software
45
User's manual
