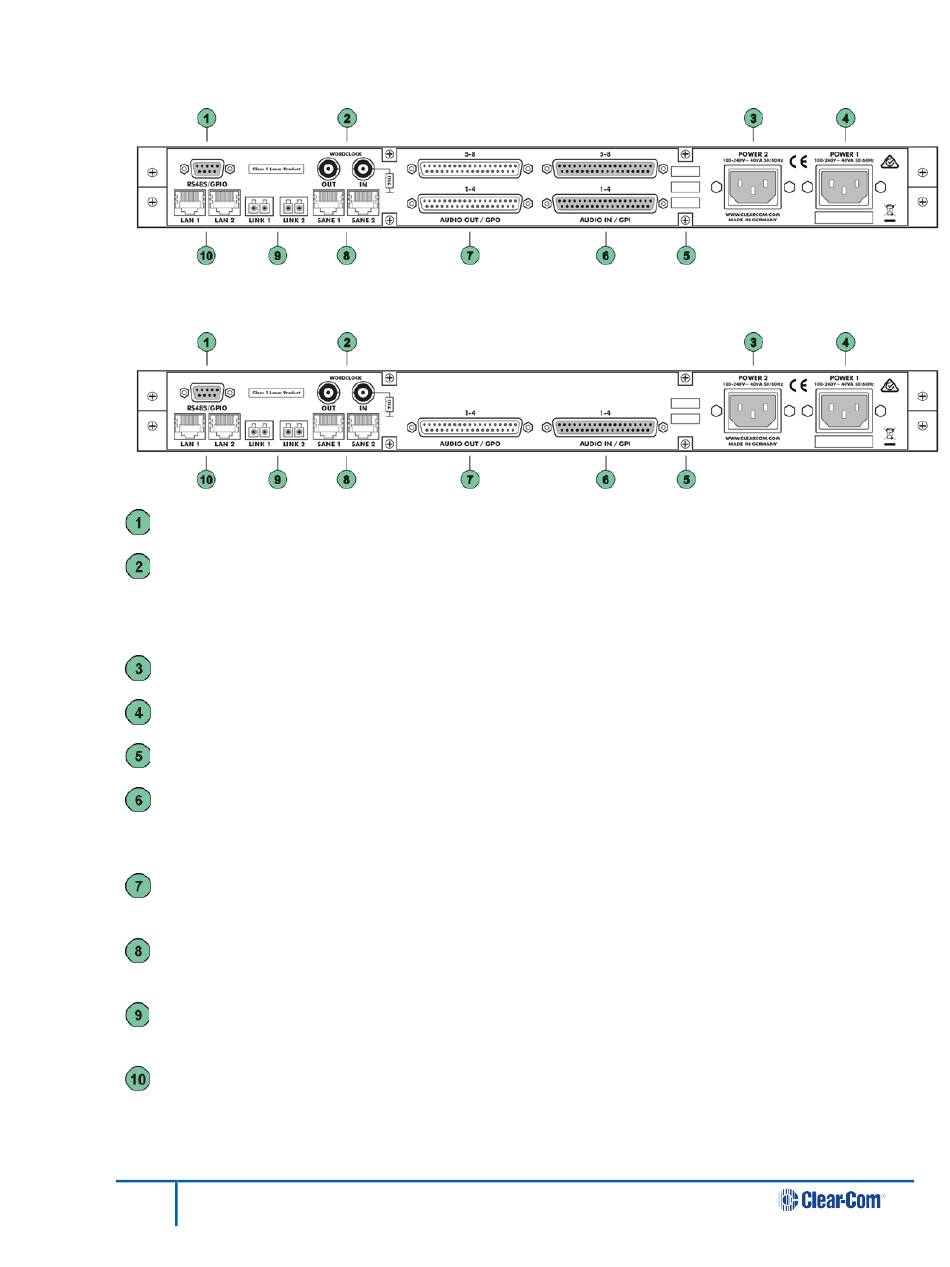

4.3 PG8-INTERCOM-444-FX
4.4 PG4-INTERCOM-444-FX
RS485/GPIO:
Word Clock IN:
Word Clock OUT:
POWER 2:
POWER 1:
Device Label:
AUDIO IN / GPI:
AUDIO OUT / GPO:
SANE 1:
SANE 2:
LINK 1:
LINK 2:
LAN 1:
LAN 2:
12
PG8-INTERCOM-FX and PG4-INTERCOM-FX User Guide
4 x RS485/GPIO (D-Sub-9) auxiliary port for data transmission
BNC Word clock input allowing synchronization of ProGrid devices/network from
an external word clock source
BNC Word clock output for synchronization of external devices
Mains input for power supply 2 (100 ... 240 V)
Mains input for power supply 1 (100 ... 240 V)
I/O card type and serial number
37 pin Female D-SUB connector with: 8 (or 4) line level inputs, 4 optically
isolated General Purpose Inputs (GPI) and +5V DC and +12V DC auxiliary
power.
37 pin Male D-SUB connector with: 8 (or 4) line level outputs, 4 General Purpose
Outputs (GPO) and +5V DC and +12V DC auxiliary power.
SANE RJ-45 interface for audio transmission and 100 Mbit Ethernet
SANE RJ-45 interface for audio transmission and 100 Mbit Ethernet
Full-duplex, full bandwidth LC-type optical interface for ProGrid transmission
Full-duplex, full bandwidth LC-type optical interface for ProGrid transmission
100 Mbit RJ-45 Ethernet interface
100 Mbit RJ-45 Ethernet interface
