Guide
Touchscreen
User Interface
Sidebar Menu
Activity
Indicator
Each dot indicates a screen, blue is the one currently visible. Tap a
dot or swipe/drag the screen to the left or right to view other screens.
INTRODUCTION
Congratulations on your investment! You are now equipped with the best wireless
headset system available for your business needs. The interactive HOME screen
provides you with a complete overview of your system at a glance. Innovative smart
features enhance ease of use while color-coded indicators provide a quick visual
status of a feature or component.
A green indicator means the feature/component is online, active, and func-
tional. In this example, the Network is connected and functioning properly.
A red indicator means the feature/component is offline, inactive, or requires
attention. In this example, there are no headsets detected. Turn on a head-
set and pair one for this indicator to turn green.
A yellow indicator is a transitional state. In this example, the transceiver is
scanning for available channels. Once an available channel is found, it
turns green (this can take a few minutes).
Some indicators are gray by default. In this example, no AC70 Battery
Charger is detected. Position the AC70 within 10 feet (3 m) of the base
station for this indicator to turn green. Note: the AC70 can function inde-
pendently (it does not require a base station connection to function).
PUB-00173 Rev B
6/30/22
© 2022 HME Clear-Com Ltd. All rights reserved.

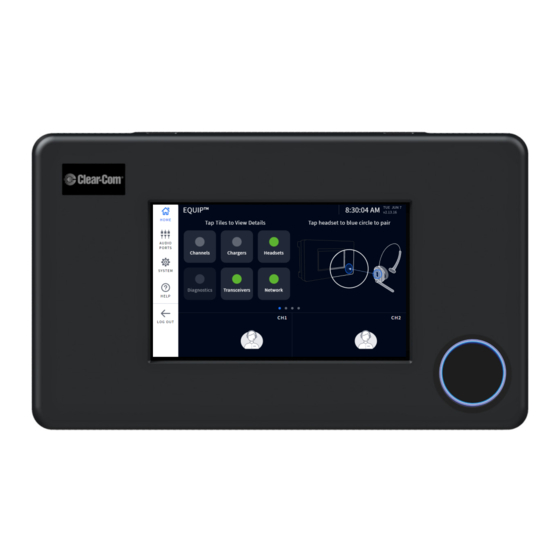

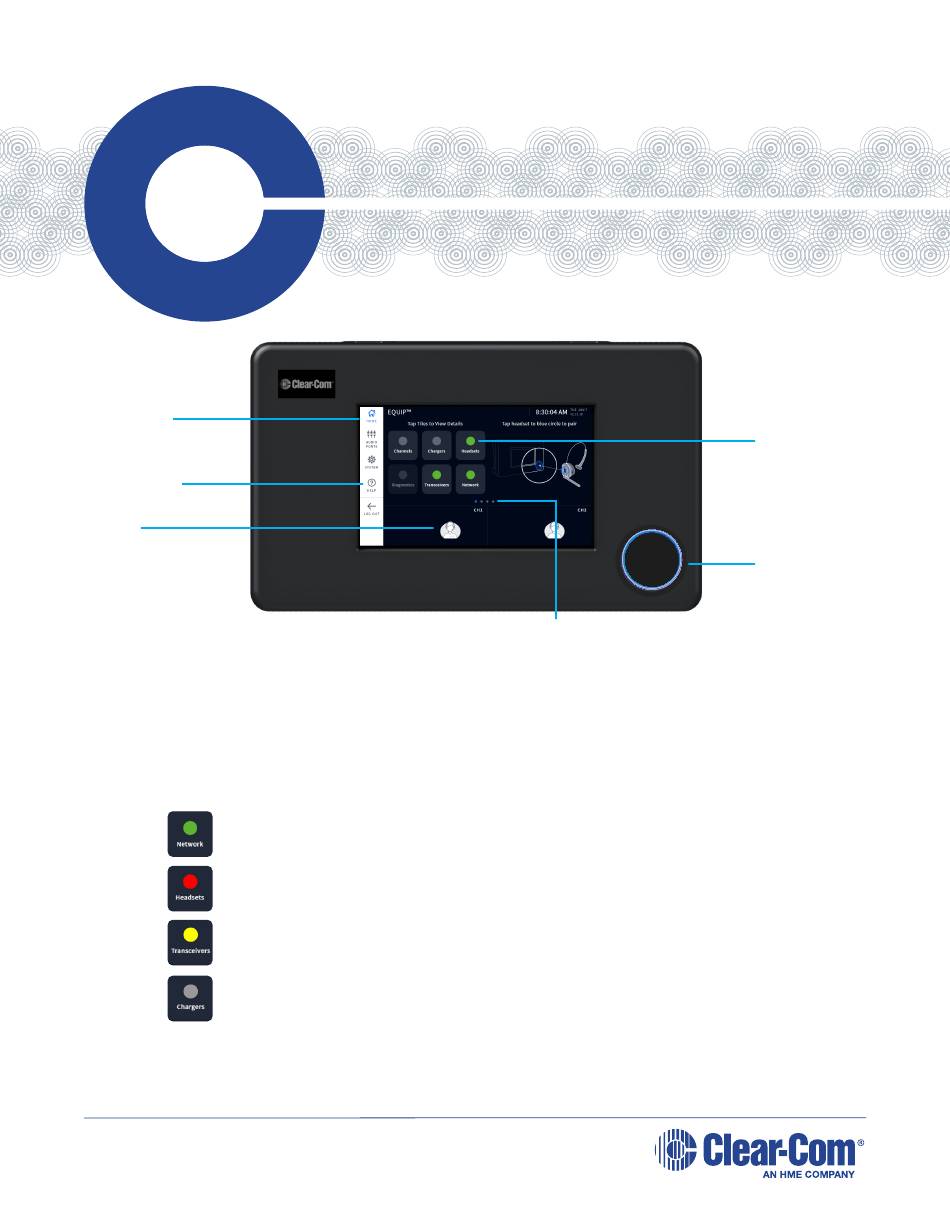

THE BASE STATION AT A GLANCE
EQUIP ™ Wireless Intercom
Color-Coded
Status Indicator
Headset
Pairing Ring
