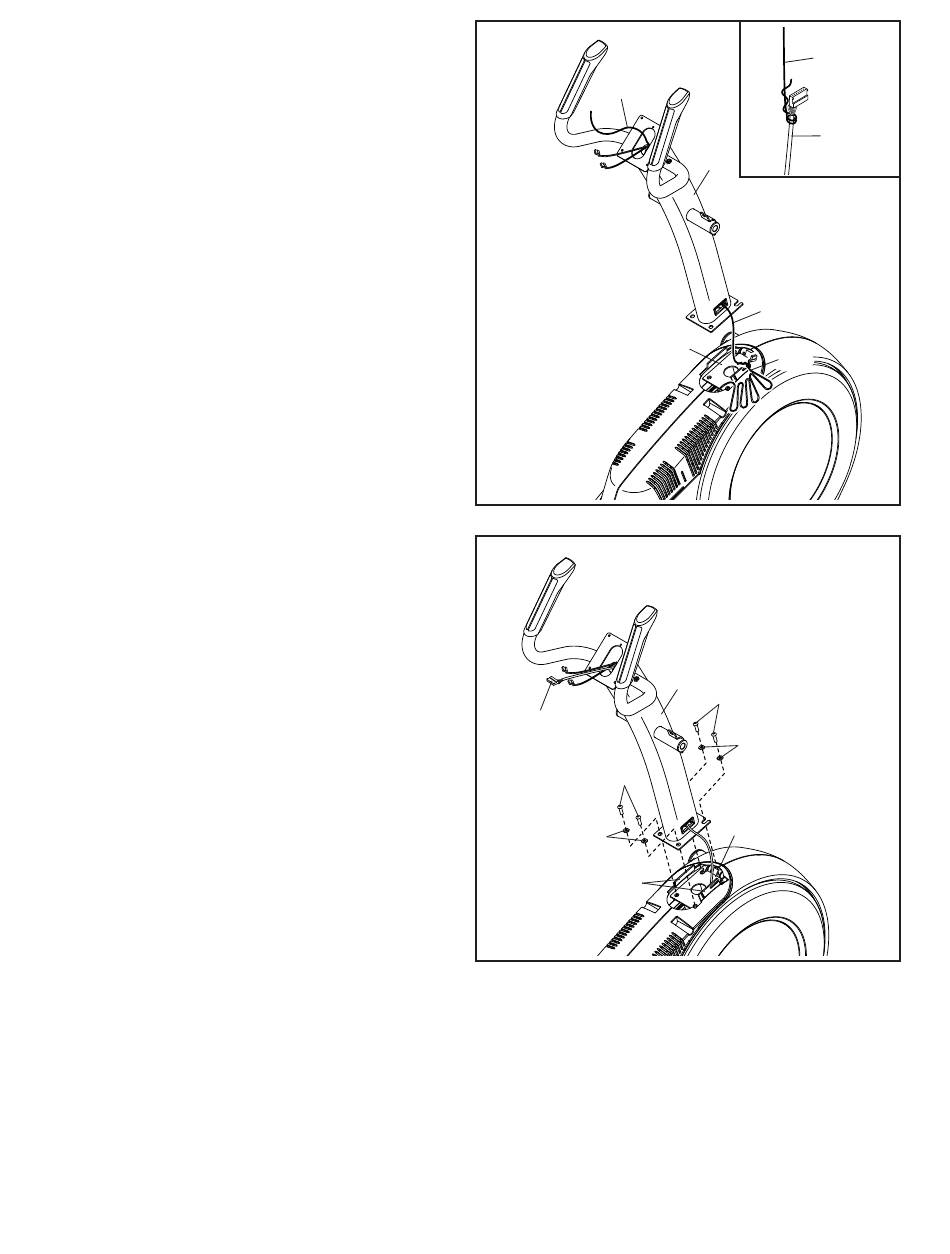

5. Orient the Upright (4) as shown. Have a second
person hold the Upright near the Frame (1).
Locate the wire tie (A) in the lower end of the
Upright (4). Tie the wire tie to the Main Wire
(110) as shown in the inset drawing. Then, pull
the upper end of the wire tie until the Main Wire
is routed through the Upright.
Tip: To prevent the Main Wire (110) from fall-
ing into the Upright (4), secure the Main Wire
with the wire tie (A).
6. Tip: Avoid pinching the Main Wire (110).
Avoid damaging the indicated plastic tabs
(B). Have a second person hold the Upright (4)
on the Frame (1).
Attach the Upright (4) with four M10 x 25mm
Screws (99) and four M10 Split Washers (105);
start all the Screws, and then tighten them.
