Pro-Form PFEVEL89716.1 User Manual page 13

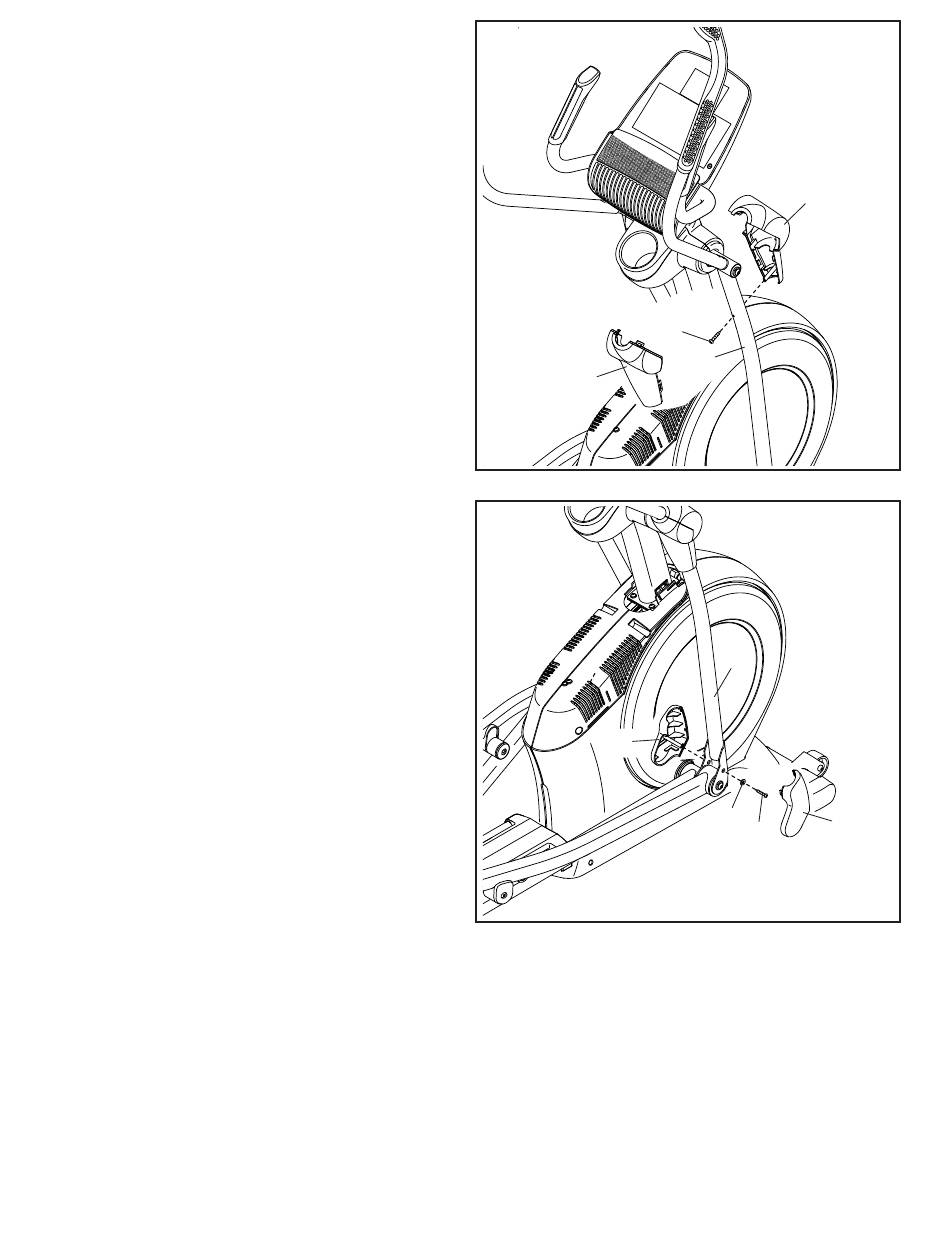

14. Identify the Right Arm Front Cover (65) and
orient it as shown.
Attach the Right Arm Front Cover (65) to the
Right Upper Body Leg (60) with an M4 x 16mm
Screw (101).
Next, identify the Right Arm Rear Cover (66) and
orient it as shown.
Attach the Right Arm Rear Cover (66) around the
Right Upper Body Leg (60) by pressing it onto
the Right Arm Front Cover (65).
Repeat this step on the other side of the
elliptical.
15. Identify the Right Leg Inner Cover (83) and orient
it as shown.
Attach the Right Leg Inner Cover (83) to the
Right Upper Body Leg (60) with an M4 x 16mm
Screw (101) and an M5 Washer (94).
Next, identify the Right Upper Leg Outer Cover
(69) and orient it as shown.
Attach the Right Upper Leg Outer Cover (69)
around the Right Upper Body Leg (60) by
pressing it onto the Right Leg Inner Cover (83).
Repeat this step on the other side of the
elliptical.
