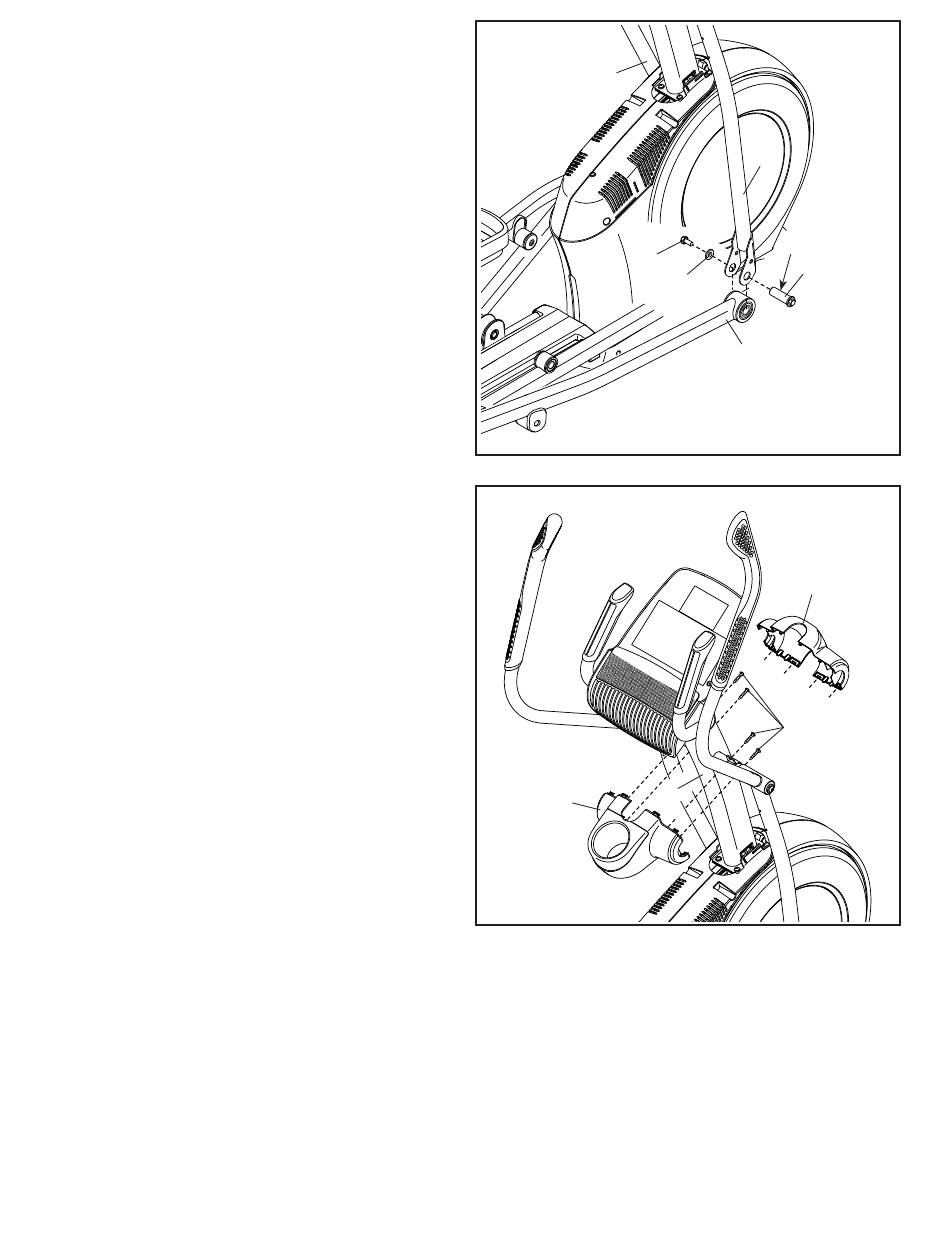

12. Apply grease to a Pedal Arm Axle (64).
While a second person holds the front end of
the Right Pedal Arm (58) inside the bracket on
the Right Upper Body Leg (60), insert the Pedal
Arm Axle (64) into both parts from the direction
shown.
Next, slide an M8 x 22mm Washer (77) onto an
M8 x 13mm Screw (82), and tighten the Screw a
few turns into the Pedal Arm Axle (64).
Then, tighten the Pedal Arm Axle (64) and the
M8 x 13mm Screw (82) at the same time.
Repeat this step on the other side of the
elliptical.
13. Orient the Rear Upright Cover (81) as shown.
Attach the Rear Upright Cover (81) to the Upright
(4) with four M4 x 16mm Screws (101); start all
the Screws, and then tighten them.
Next, orient the Front Upright Cover (117) as
shown.
Attach the Front Upright Cover (117) around the
Upright (4) by pressing it onto the Rear Upright
Cover (81).
12
46
82
13
81
12
60
Grease
64
77
58
117
101
4
