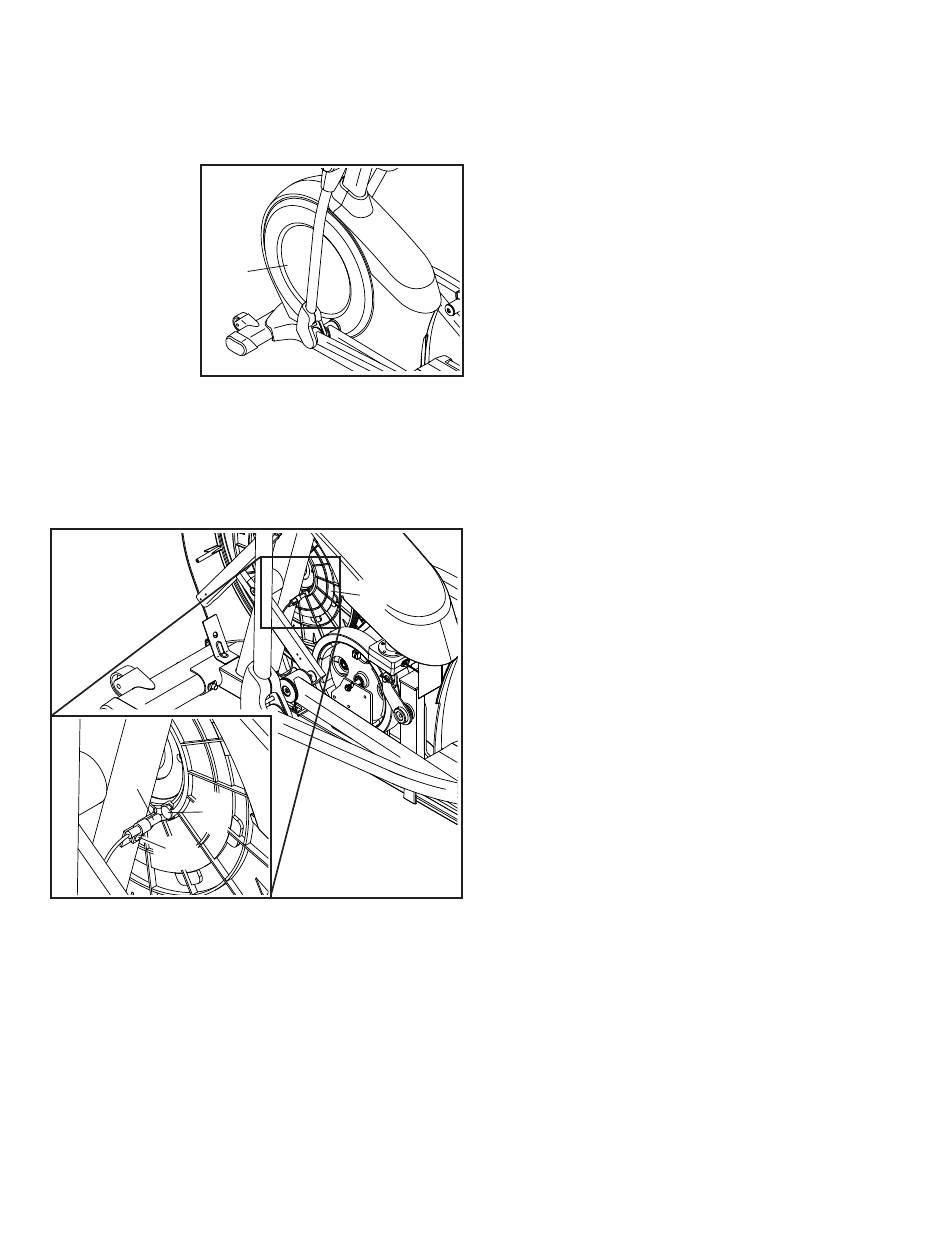

HOW TO ADJUST THE REED SWITCH
If the console does not display correct feedback, the
reed switch should be adjusted. To adjust the reed
switch, first press the power switch to the off posi-
tion and unplug the power cord.
Next, use
a standard
screwdriver
to carefully
pry off the left
Disc (71).
71
Note: For clarity, the left shield and the left disc ring are
shown removed in the drawing below.
Then, locate the Reed Switch (38). Turn the Pulley (19)
until a Magnet (43) is aligned with the Reed Switch.
38
43
101
Next, slightly loosen the indicated M4 x 16mm Screw
(101). Slide the Reed Switch (38) slightly closer to or
away from the Magnet (43), and retighten the Screw.
Then, plug in the power cord, press the power switch
to the reset position, and rock the Pulley (19) forward
and backward just enough that the Magnet (43) passes
the Reed Switch (38) repeatedly. Repeat these actions
until the console displays correct feedback.
When the reed switch is correctly adjusted, press the
power switch to the off position, unplug the power cord,
and reattach the left disc. Then, plug in the power cord.
