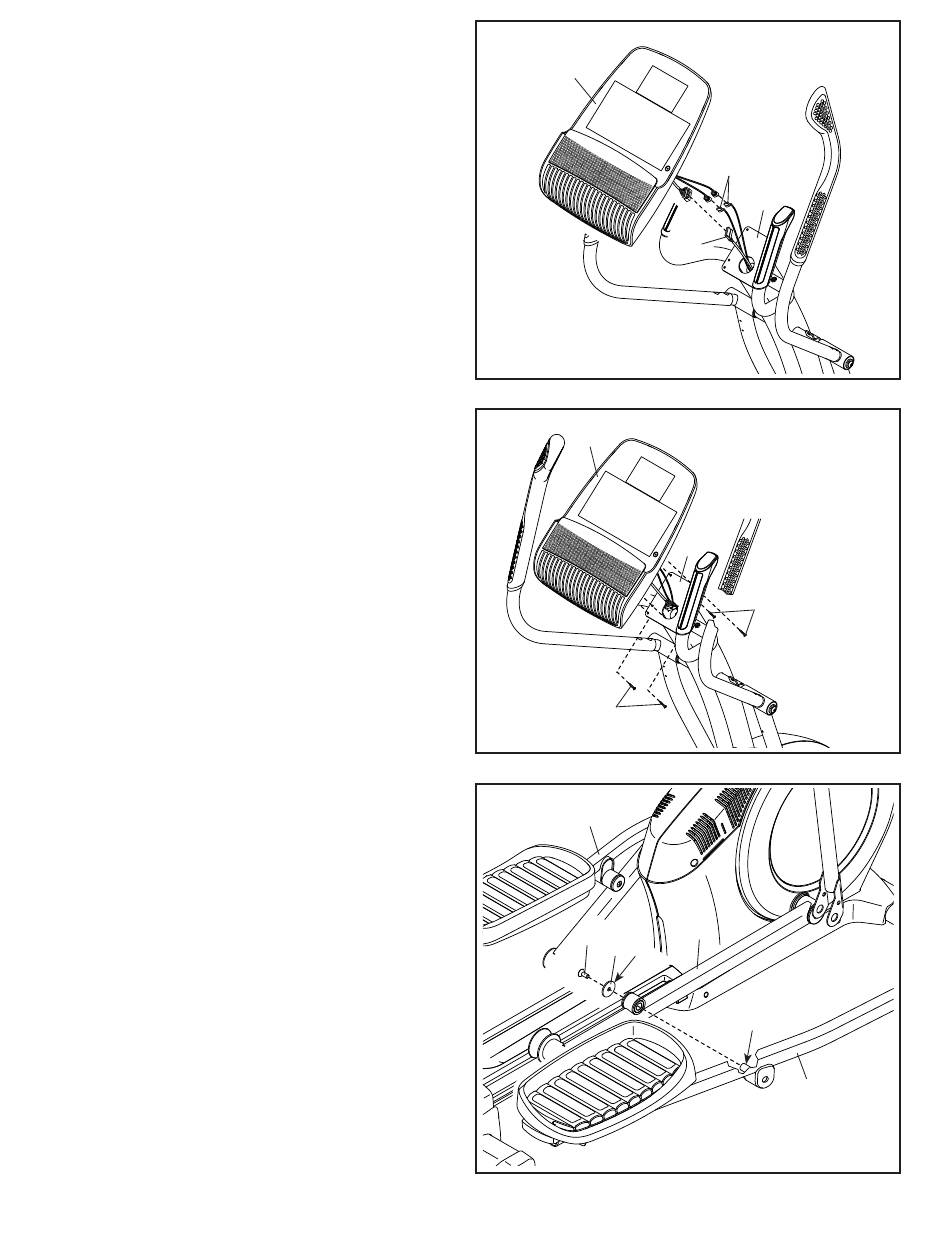

9. Untie and discard the wire tie on the Main
Wire (110).
While a second person holds the Console (7)
near the Upright (4), connect the wires on the
Console to the Main Wire (110) and to the
Sensor Wires (63).
Insert the excess wire into the Upright (4).
10. Tip: Avoid pinching the wires. Attach
the Console (7) to the Upright (4) with four
M4 x 16mm Screws (101); start all the Screws,
and then tighten them.
11. Orient the Right Pedal Arm (58) as shown, and
apply grease to the axle.
Attach the Right Pedal Arm (58) to the Right
Roller Arm (59) with an M8 x 20mm Screw (126)
and a Retainer (55); make sure that the flat
side (D) of the Retainer is facing the Right
Roller Arm.
Repeat this step for the Left Pedal Arm (44).
