Summary of Contents for Kino Flo Image L80 LED

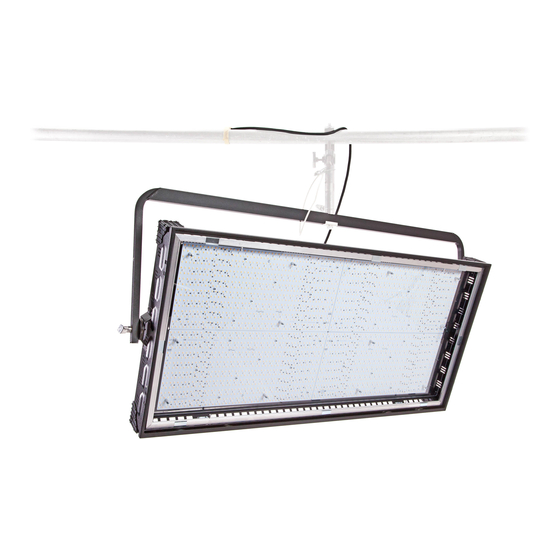

- Page 1 Operation Manual Image L80 & L40 LED DMX ® (True Match Firmware 4.0) (Camera) Image L80 LED Yoke Mount Image L40 LED Pole-Op Part No. 3100114 Rev B 11-15-2019...
- Page 2 Image L80 & L40 LED Fixtures Image LED Yoke Mount IMG-L80U Image L80 LED DMX Yoke Mount, Univ IMG-L40U Image L40 LED DMX Yoke Mount, Univ Image LED Pole-Op IMG-L80PU Image L80 LED DMX Pole-Op, Univ IMG-L40PU Image L40 LED DMX Pole-Op, Univ...
- Page 3 Image Yoke Mount Kits Image L80 LED DMX Kit KIT-IL80U Image L80 LED DMX Kit, Univ Image Yoke Mount Kits Kit Contents: Dimensions: Weight: 1 Image L80 LED DMX 58 x 9.5 x 36.5” 75.5 lb 1 Jr. Pin (147.5 x 24 x 93cm) (34.5kg)
- Page 4 Inserting Gel Frame The gel frame is secured to the fixture by 4 spring-loaded pins. Align the pins of the gel frame with the oval receptacle holes on the edge of the fixture. Pull back the pins and release into the receptacles to properly secure the gel frame. Applying Gel to Frame A) The Gel Frame comes with gel clips.
- Page 5 Mounting Barndoors Top/ Bottom Door Side Door (x2) (x2) Side Doors 1) Align the hinge bracket tabs with the two square receptacles on the side of the fixture. 2) Press the tabs of both brackets into the square receptacles. 3) Slide the two brackets up until the silver lock pin snaps into place. 4) To release the barndoor, press the lock pin down and slide the bracket in reverse.
- Page 6 Image Yoke Mount The Yoke has a ½” hole to accept industry standard mounting hardware. The Image L80 LED Yoke Mount can hang from a grid by a junior pipe hanger using a Junior Pin Assembly for Yoke (MTP-I80), sold separately.
- Page 7 Image Pole-Op The Image L80 and L40 LED Pole-Op fixtures include a yoke with an attached junior pin. They can be hung from a grid with a junior pipe hanger. Junior pin attached to Pole-Op Yoke Pole Operation The Blue cup alters the Pan (left or right). The White cup alters the Tilt (up or down).
- Page 8 Fixture Power AC Input The Image LED is powered AC and includes an IEC connection. A locking power cord is included with the fixture. To remove the plug, move the red tab to release. The fixture has a built-in power supply with universal input from 100-240VAC.
- Page 9 Control Panel - White Mode A) On /Off: On = Green light displayed. Off = Red light displayed. The display and all menu settings can be operated while the power button is in the Off position, as long as power is applied to the controller. The On /Off button only controls the light source.
- Page 10 Control Panel - Gels/Hue Mode Gels/Hue Mode A) Menu: Provides access to menu options such as General settings (Gels/Hue Mode), Reset, DMX, DMX Wireless, Camera LUT and Color Space. Shortcut: While on control screen, press and hold for 3 seconds to switch through menus (White, Gels &...
-
Page 11: Rgb Mode
Control Panel - RGB Mode RGB Mode A) Menu: Provides access to menu options such as General settings (RGB Mode), Reset, DMX, DMX Wireless, Camera LUT and Color Space. Shortcut: While on control screen, press and hold for 3 seconds to switch through menus (White, Gels &... - Page 12 Control Panel - CIE xy CIE xy Mode A) Menu: Provides access to menu options such as General settings (CIE xy mode), Reset, DMX, DMX Wireless, Camera LUT and Color Space. Shortcut: While on control screen, press and hold or 3 seconds to switch through menus (White, Gels &...
- Page 13 Control Panel - FX (Effects) FX (Effects) Mode FX mode provides access to effects including Candle, Fire, TV, Police, Lightning, Paparazzi, Pulse and Scroll. Candle mode used as an example: A) FX Option: Choose the desired FX Mode by rotating the control knob. When on the desired effect, there will be several pre-programed effects as well as control parameters that can be altered.
- Page 14 The camera code (C1 for Arri Alexa), for example, will appear on the main menu between DIM and CCT to designate that a camera setting is active. Note: When the controller is reset, the camera settings will go to Kino Flo Default mode.
-
Page 15: Color Space
Color Space Color Space defines the RGB color space used and only affects color – not Kelvin. It is used in RGB mode and Hue Angle and Saturation. There are a few instances in the FX (Effects) mode that are also affected when color is used. The RGB color space defines the value of Red, Green, and Blue primaries (in CIE xy) and the white point is fixed at 6500 Kelvin. - Page 16 Accessories BRD-I80 Image L80 Barndoors (Set of 4) BRD-I40 Image L40 Barndoors (Set of 4) LVR-I80-S Image L80 Louver/Silver LVR-I40-S Image L40 Louver/Silver KAS-I80-I Image L80 Ship Case KAS-I40-I Image L40 Ship Case 7010016 Image L80 Pole-Op Assembly 7010015 Image L40 Pole-Op Assembly MTP-I80 Junior Pin Assembly for Yoke (28mm) MTP-I40...
-
Page 17: Fixture Specifications
Fixture Specifications IMG-L80U Image L80 LED DMX Yoke Mount, Univ AC Input Voltage: 100~240VAC 50/60Hz, 400W Amperage VAC: 4.0A at 120VAC, 2.0A at 230VAC Kelvin Range: 2500K~9900K Dimming Range: 100%~1% Weight: 41.5 lb (19kg) Image L80 LED Dimensions: 54 x 6.5 x 28”... - Page 18 This product is made of recyclable materials and should be disposed of in accordance with governmental regulations. Kino Flo, Inc. 2840 N. Hollywood Way, Burbank, CA 91505, USA Tel: 818 767-6528 website: www.kinoflo.com...
