Securing the Robot and Controller Assembly

Log in to the browser-based user interface under the Operator, Service, or
1.
Administrator role.
Select Library from the menu on the left side of the interface.
2.
The graphical library map appears.
Using the mouse or Tab key, navigate to icon for the drive that you need to
3.
remove, and click on the icon.
Drive icons are identified by the library module number, physical position (Top or
Bottom), and SCSI address of the corresponding drive.
Select Remove Drive from the drive icon's context menu.
4.
When the confirmation dialog appears at the top of the interface, press the OK
5.
button to continue or Cancel to abort.
Click the Close button to close the dialog.
6.

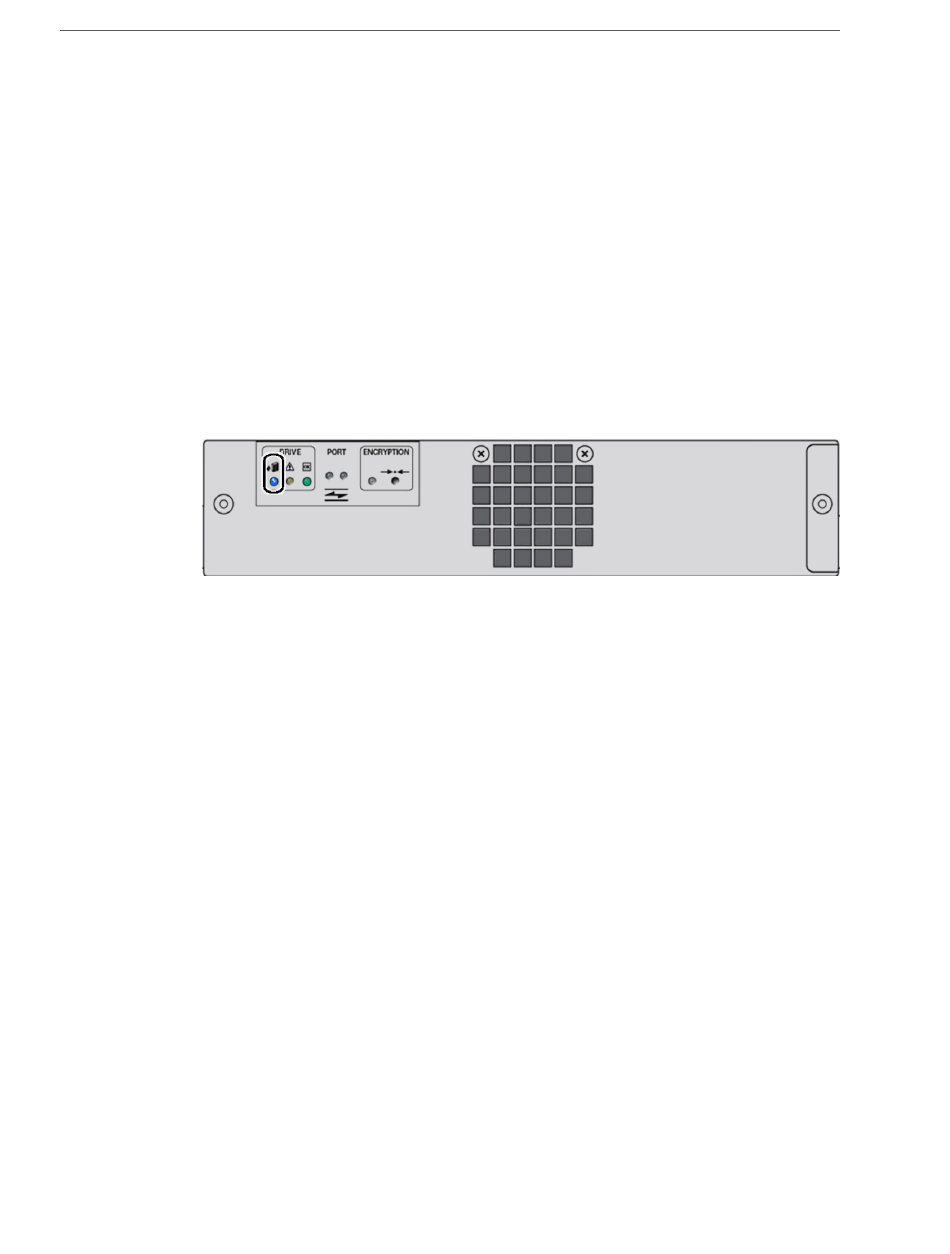

On the drive, a blue LED lights up to show that the drive can be safely removed.
Securing the Robot and Controller Assembly
Before performing maintenance activities that might place obstructions in the path of
the robot,
Robot

Park the Robot

If you have not already done so,
1.
user interface or the local operator panel.
When the Power Down Library confirmation dialog appears, check the Prepare
2.
the Robot for removal before the library powers down check box.
This moves the robot to its housing at the top of the base module.
Press the OK button to continue or Cancel to abort and stop here.
3.
Lock the
4.

Lock the Robot

Locate the robot lock at top center on the back of the base module.
1.
7-8 StorageTek SL150 Modular Tape Library User's Guide
Park the Robot in its housing at the top of the base module and
in place. This helps to prevent damage to the robot.
Robot.
Power the Library Off using either the remote
Lock the
