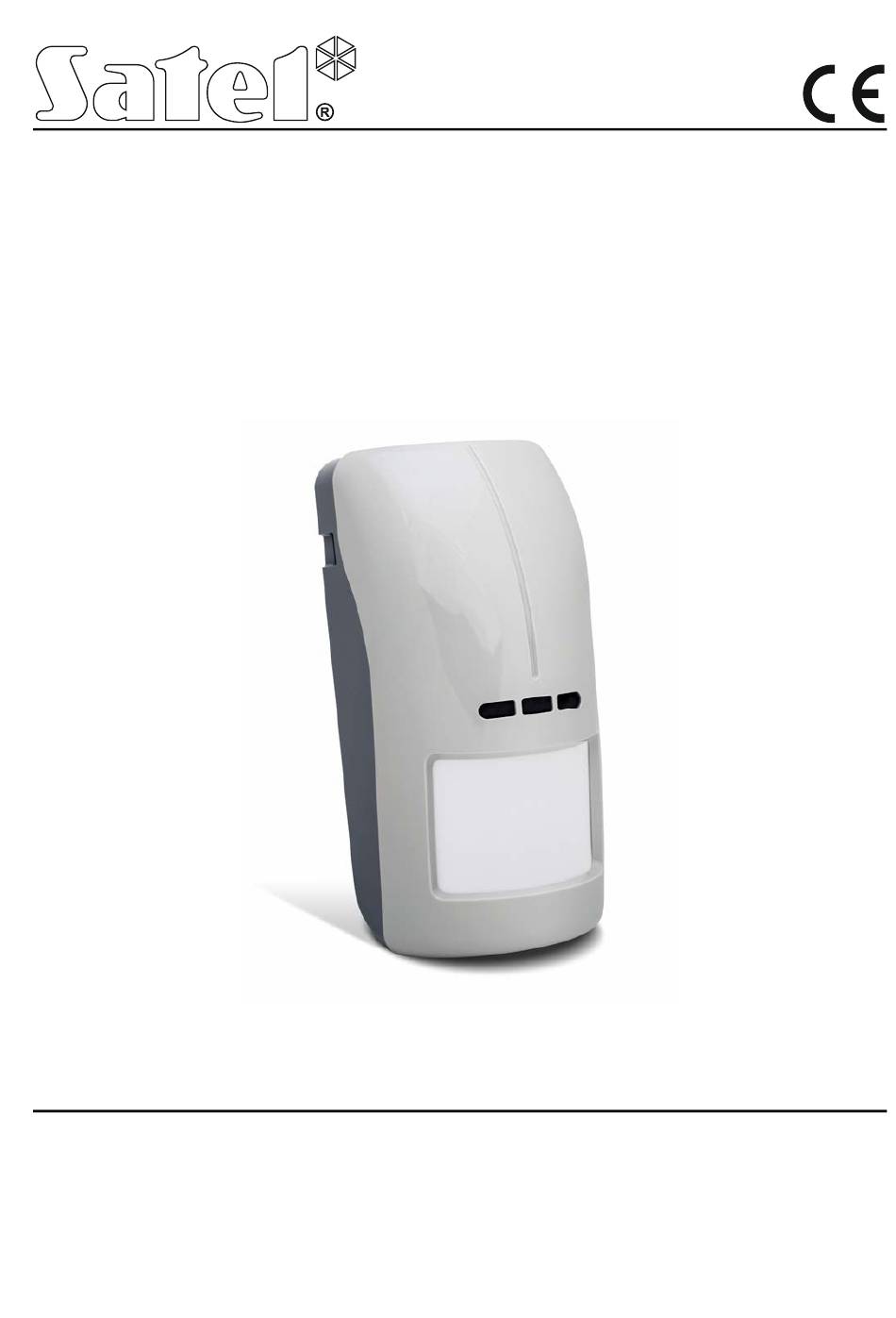

- Page 1 12/15 OUTDOOR DUAL TECHNOLOGY MOTION DETECTOR OPAL / OPAL Plus Firmware version 2.01 SATEL sp. z o.o. • ul. Budowlanych 66 • 80-298 Gdańsk • POLAND tel. 58 320 94 00 www.satel.eu...
- Page 2 Changes, modifications or repairs not authorized by the manufacturer shall void your rights under the warranty. The SATEL's goal is to continually upgrade the quality of its products, which may result in alterations of their technical specifications and firmware. The current information on the introduced modifications is available on our website.

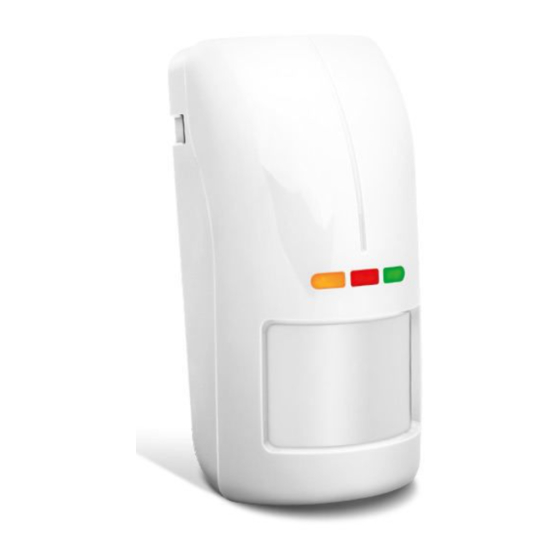

- Page 3 The OPAL / OPAL Plus detector allows detection of motion in the protected area. It is designed for outdoor use. This manual applies to the detector with electronics version E (or newer). 1. Features Passive infrared (PIR) sensor and microwave sensor.
-
Page 4: Electronics Board
ON during detector trouble. LEDs are also used for signaling in configuring mode (see: “Detector configuring”). dusk sensor [OPAL Plus only]. infrared receiver allowing to configure the detector by means of OPT-1 keyfob [OPAL Plus only]. The keyfob is offered by SATEL. buttons used during sensors sensitivity setting. -
Page 5: Installation
SATEL OPAL • OPAL Plus On the other side of the electronic board is a tamper contact activated by removing the detector from the wall. When mounting the detector on the angle or ball bracket, it is necessary to install additional tamper contact (it is included in the detector delivery set). - Page 6 OPAL • OPAL Plus SATEL 3. Make the opening for cable in the enclosure base. 4. Mount the enclosure base to the wall (see: “Wall mounting”); to the angle bracket (see: “Angle bracket mounting”) or to the ball bracket (see: “Ball bracket mounting”). In Figure 4 possible ways of mounting the detector are shown.
-
Page 7: Ball Bracket Mounting
SATEL OPAL • OPAL Plus 2. Prepare openings in the bracket for screws and a cable. 3. Pass the cable through the prepared opening. 4. Using wall plugs (screw anchors) and screws, fasten the bracket to the wall. 5. Run the cable through the opening in the enclosure base. -
Page 8: Detector Configuring
– detection sensitivity of the microwave sensor, – detection sensitivity of the PIR sensor, – detection threshold of the dusk sensor [OPAL Plus]. Each sensor has 16 sensitivity thresholds. Figure 9 shows the coverage areas of the motion detector (... - Page 9 SATEL OPAL • OPAL Plus Figure 10 shows the way the dusk sensor operates. On the timeline the T time delay is presented (in operating mode T=15 min, in configuring mode T=3 s). Illustrated with the letter H in Figure 10 light intensity hysteresis and time delay make the sensor immune to short and accidental changes of light intensity.
-
Page 10: Start-Up And Walk Test
Pressing MODE button briefly allows starting configuring of another sensor. Blinking of the proper LED will indicate which sensor is being configured (see: “Signaling in the configuring mode”). Configuring by means of OPT-1 keyfob [OPAL Plus] Point the keyfob towards the detector and by pressing buttons (value decreasing) and (value increasing) set the sensitivity / detection threshold of the sensor. -
Page 11: Specifications
SATEL OPAL • OPAL Plus The used batteries must not be discarded, but should be disposed of in accordance with the existing rules for environment protection. 8. Specifications OPAL / OPAL Plus detector Supply voltage ....................12 V DC ±15%... - Page 12 Maximum humidity ......................93±3% Dimensions ....................65 x 138 x 58 mm Detector weight (without a bracket) OPAL ............ 174 g OPAL Plus ..........176 g OPT-1 keyfob Battery........................CR2032 3V Range ..........................15 m Enclosure dimensions ..................78 x 38 x 16 mm...
